Between July and November of 2018 I built a van. This is the story from start to finish.

PSA: I wrote this during the build, so it almost certainly goes into more detail than you care for. Just scroll through the pictures for an overview.

Before

After

The start · July 7, 2018

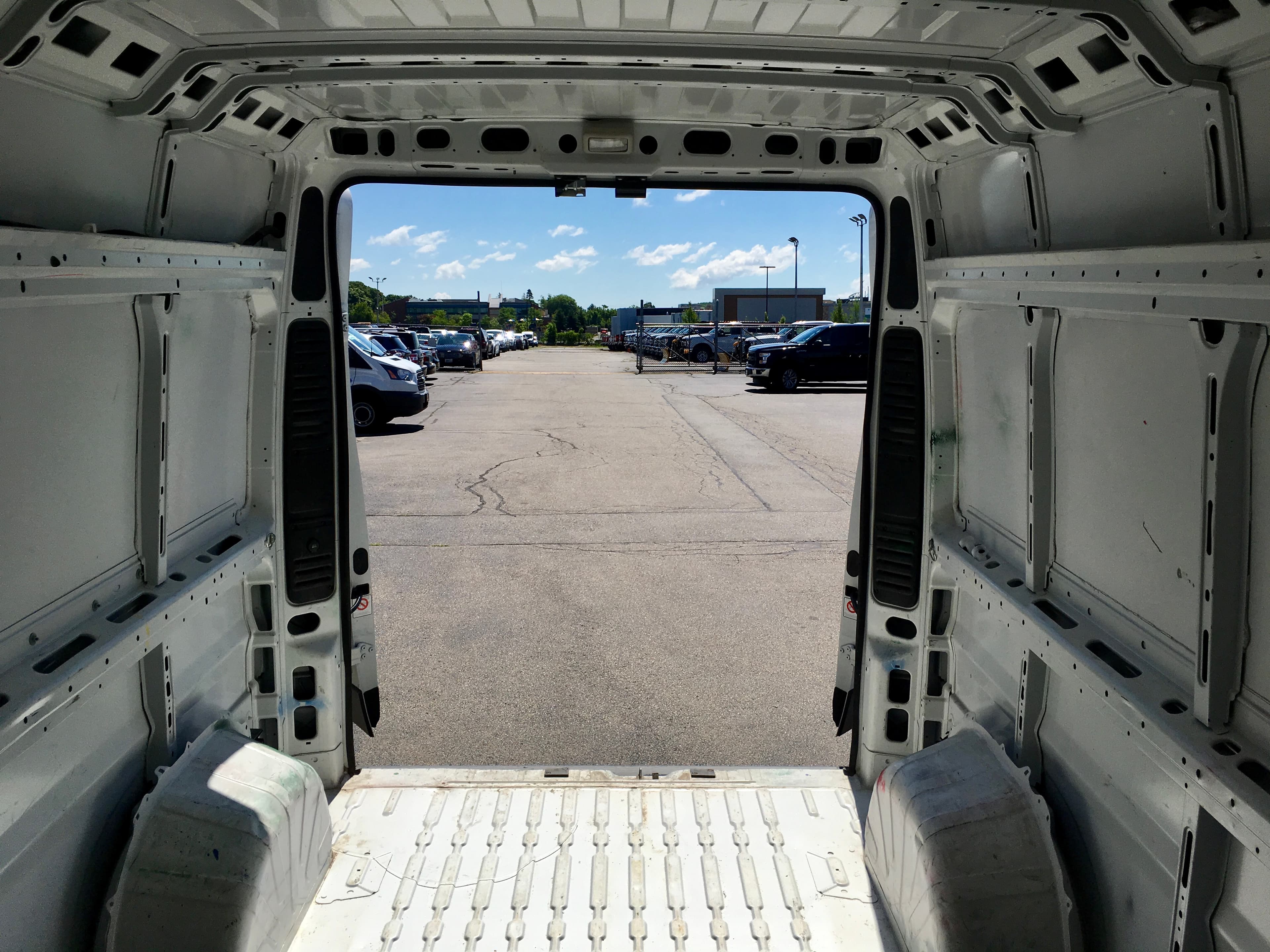

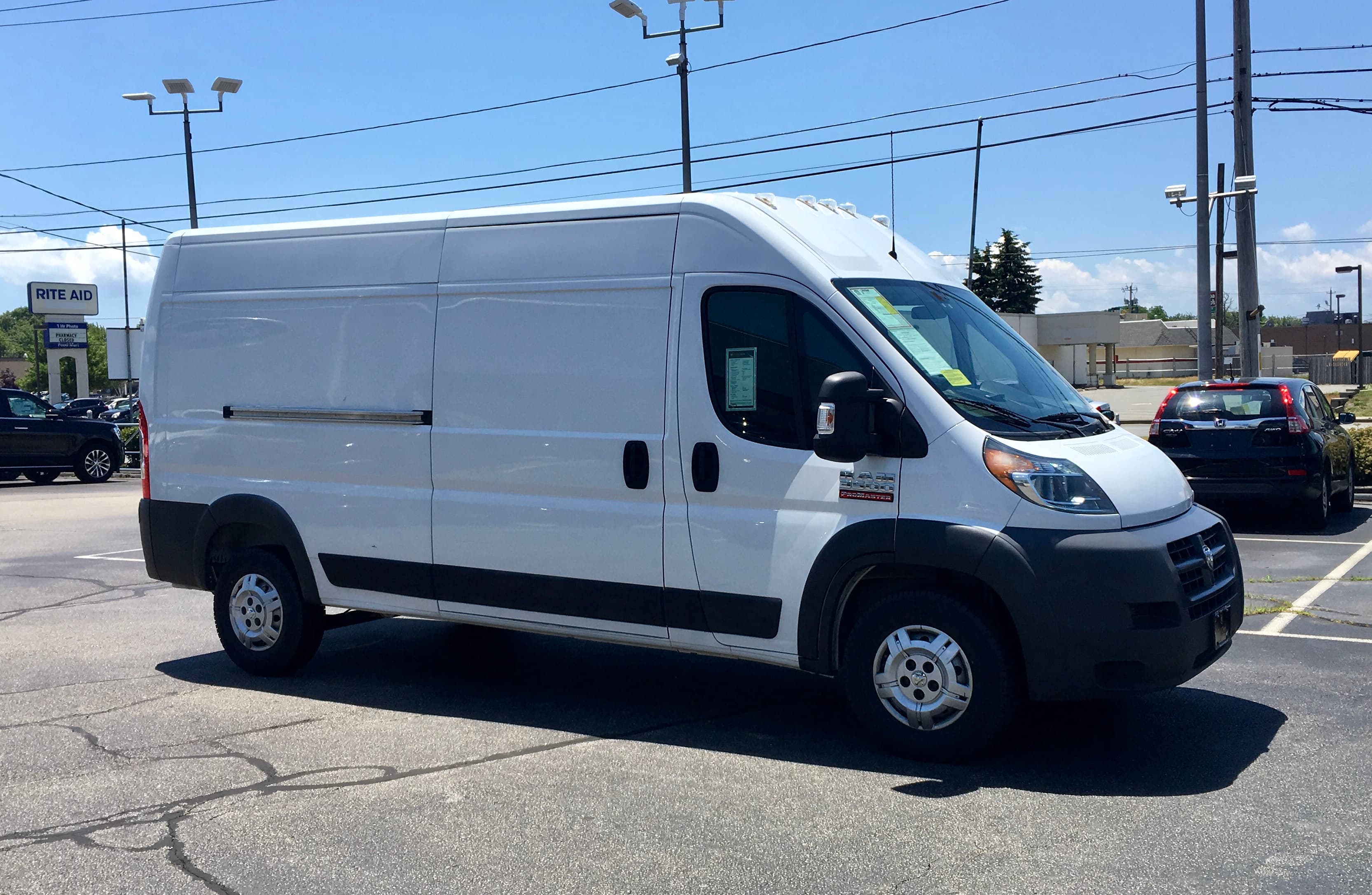

I bought a 2014 Ram Promaster that had been part of a commercial fleet. It's a 3500 (159" wheelbase, high roof) with a diesel engine.

Some signs of wear and tear, but overall in fine condition & a good price with 40k miles on it.

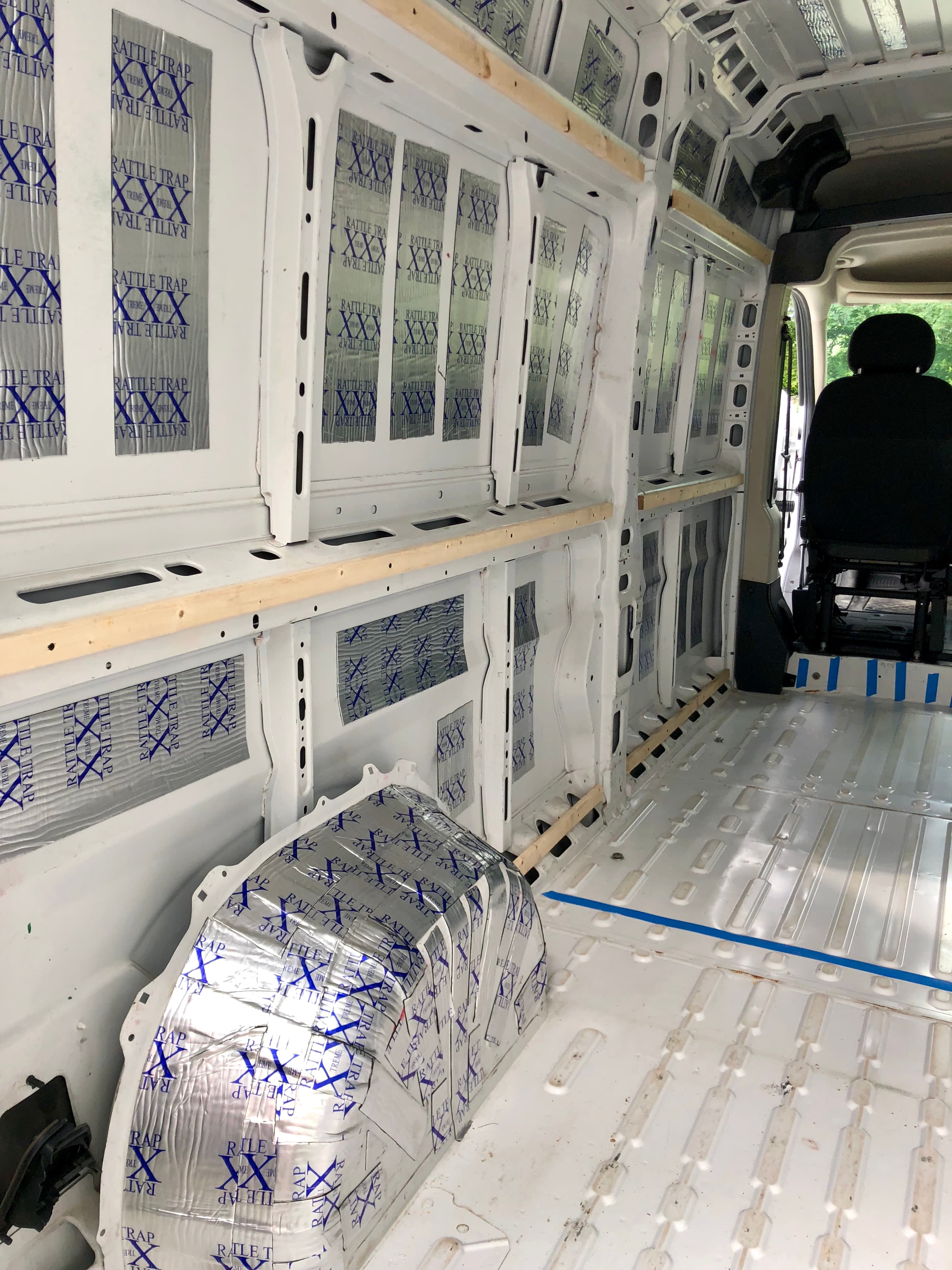

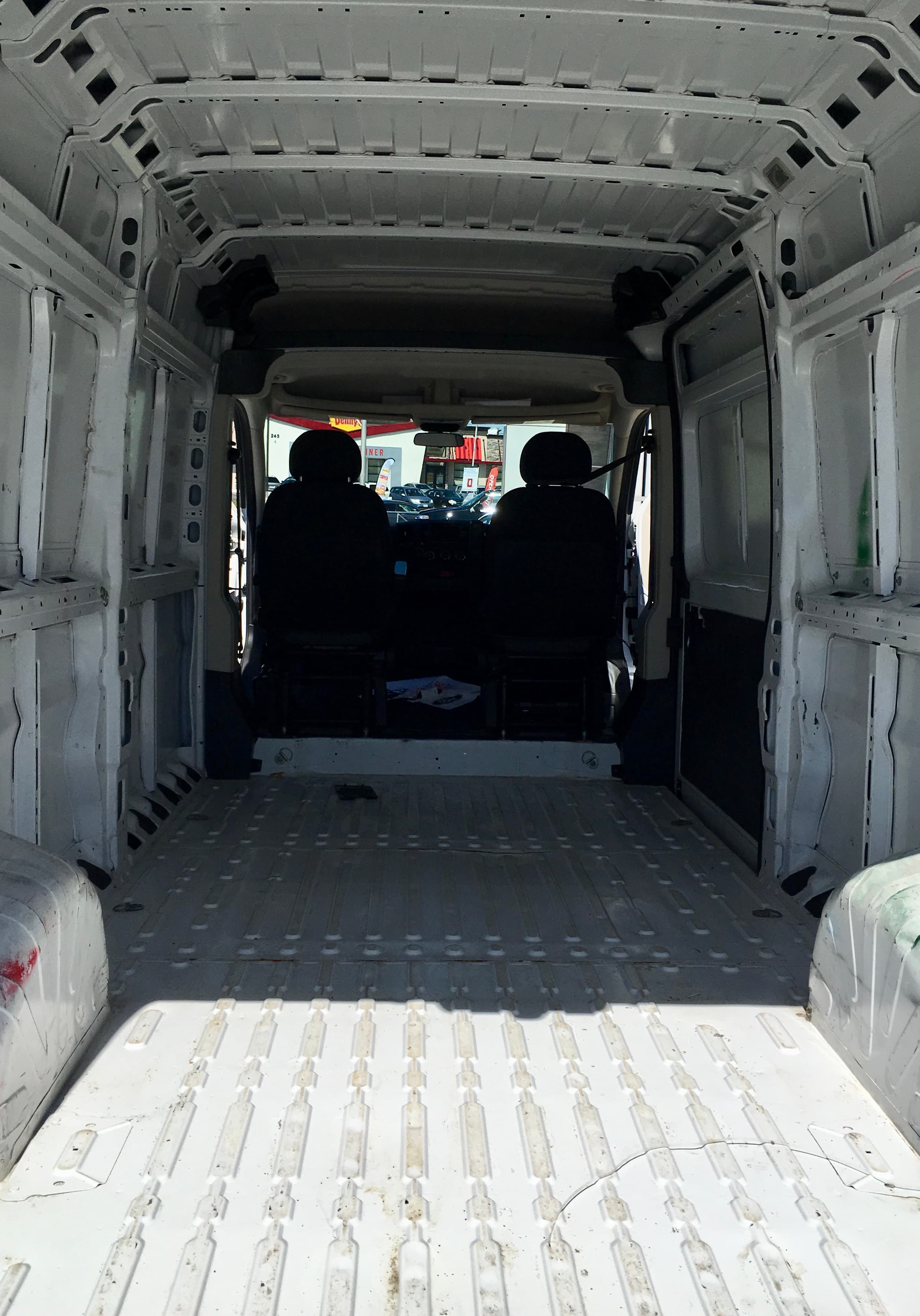

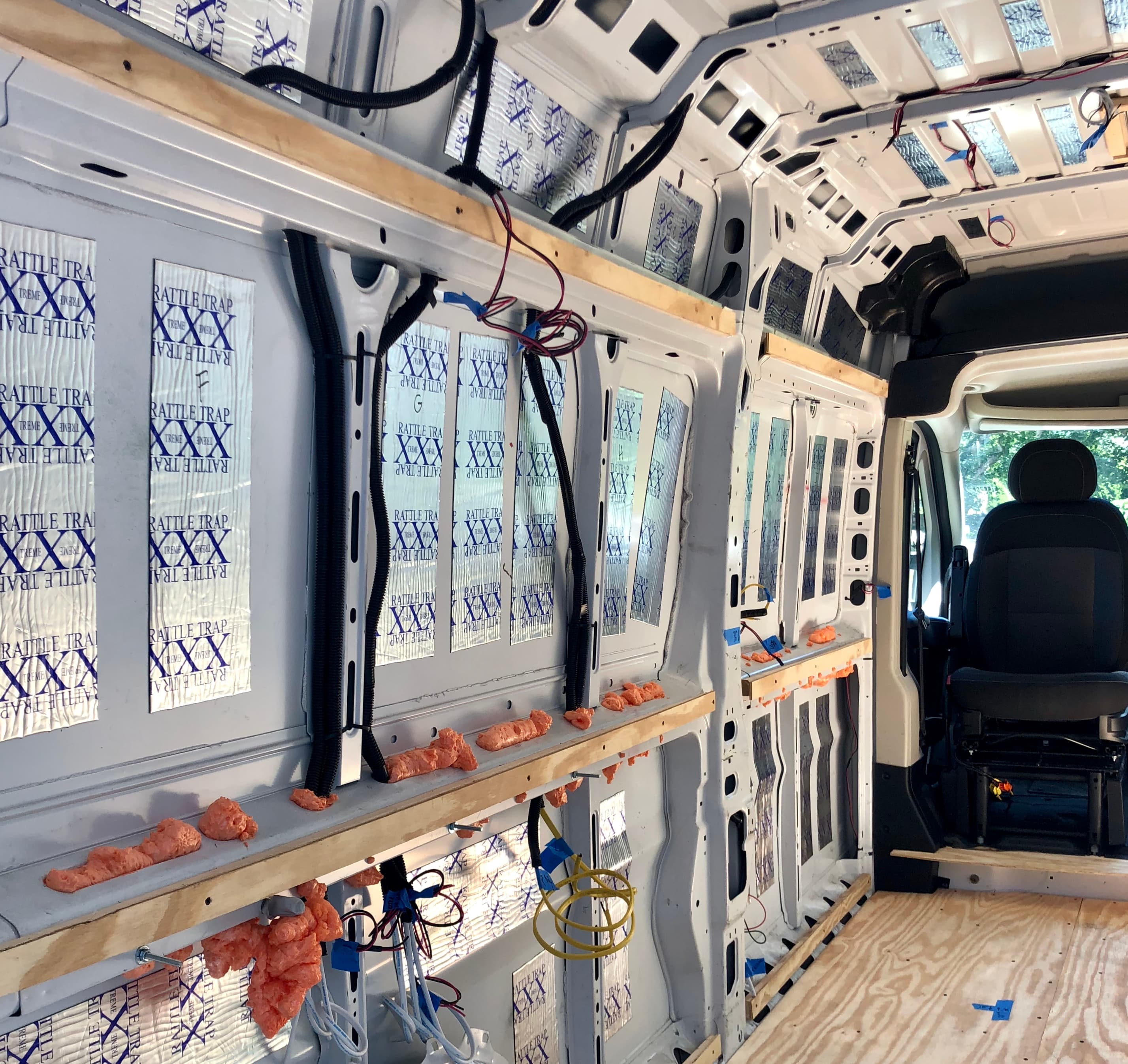

After scrubbing the interior, I installed Rattletrap and furring strips. Rattletrap is a sound deadener, it's the silver stuff plastered all over the walls & ceiling. I had 50 square feet total, which I cut into a bunch of 6x18" strips for the walls, and 2x18" strips for the ceiling. The furring strips (horizontal pieces of wood) are intended to make the sides flush with the frame of the van. This will make installing walls easier.

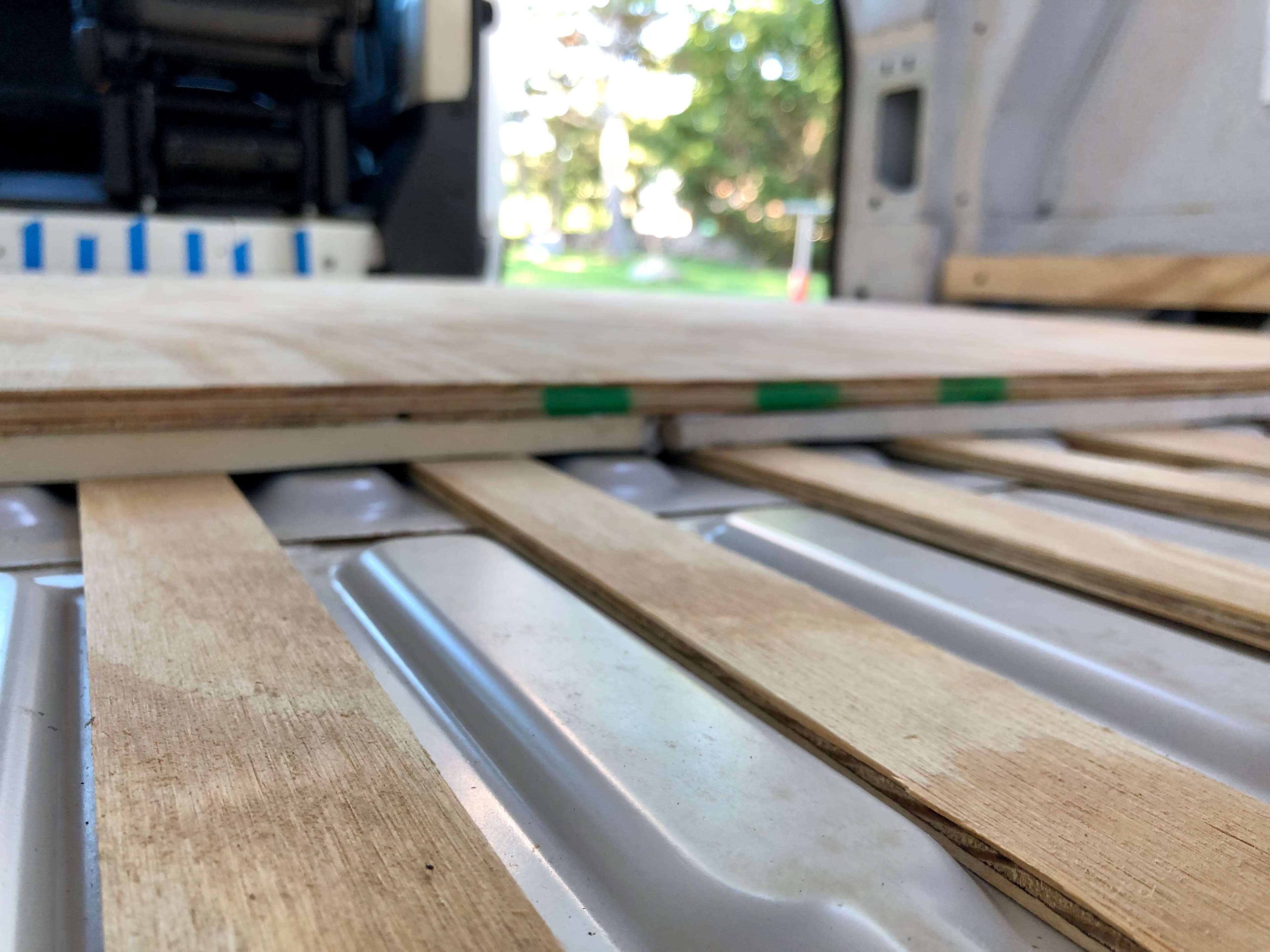

I installed the first half of the subfloor. The subfloor comprises 3 parts: 1/2" plywood boards, 1/2" polyiso insulation, 1/4" plywood strips (in that order, from top to bottom).

The 1/4" plywood strips are intended to make the floor flush, so that the insulation doesn't bend or compress as people walk on it.

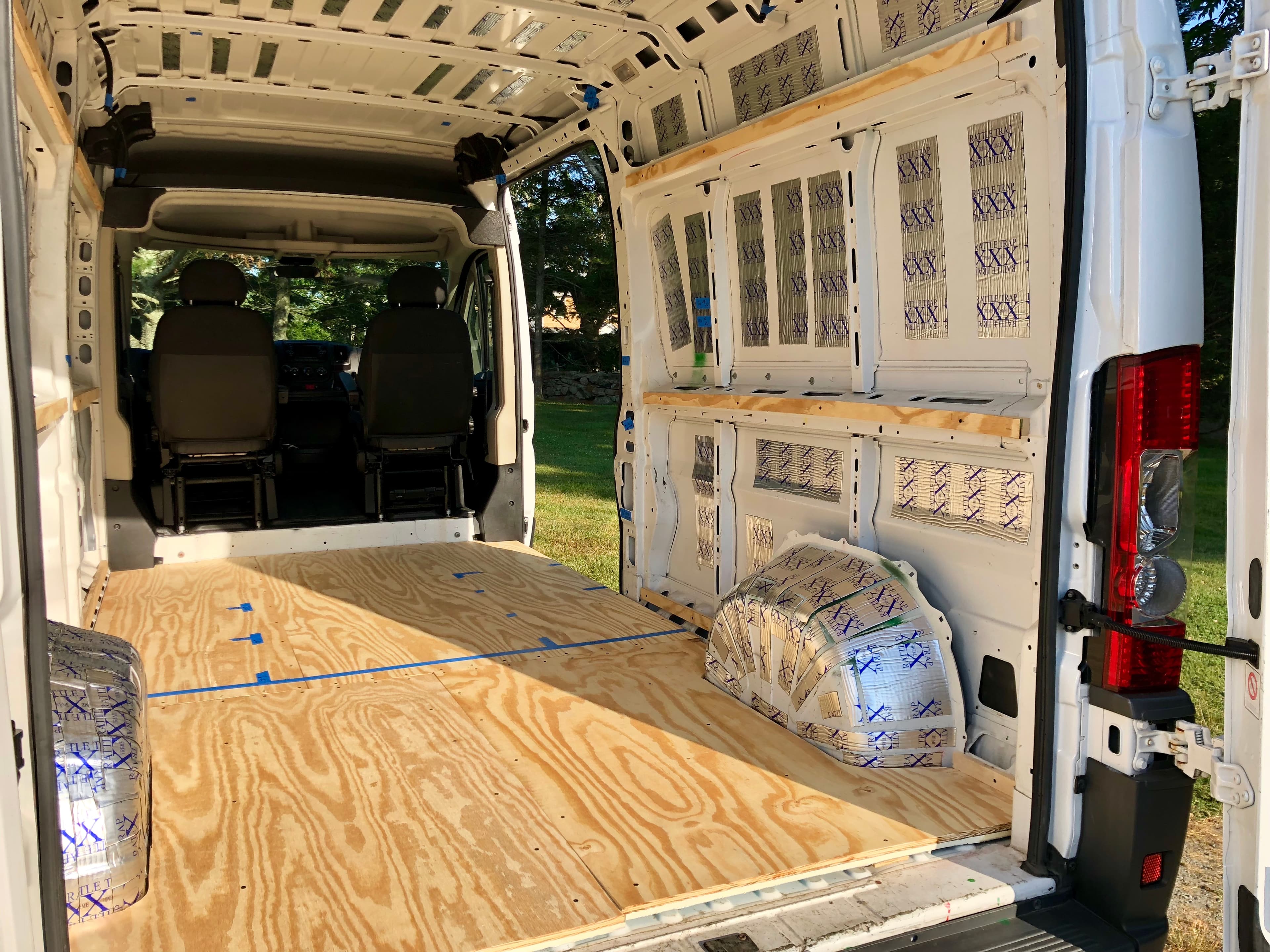

I finished the second half of the subfloor. It took a little while to cut out the wheel wells and get the pieces to fit seamlessly.

I took a bunch of measurements to determine the interior layout for the driver's side wall. A queen bed will extend to the left of the image, drivers seat to the right. There will be a table in front of the bench seat.

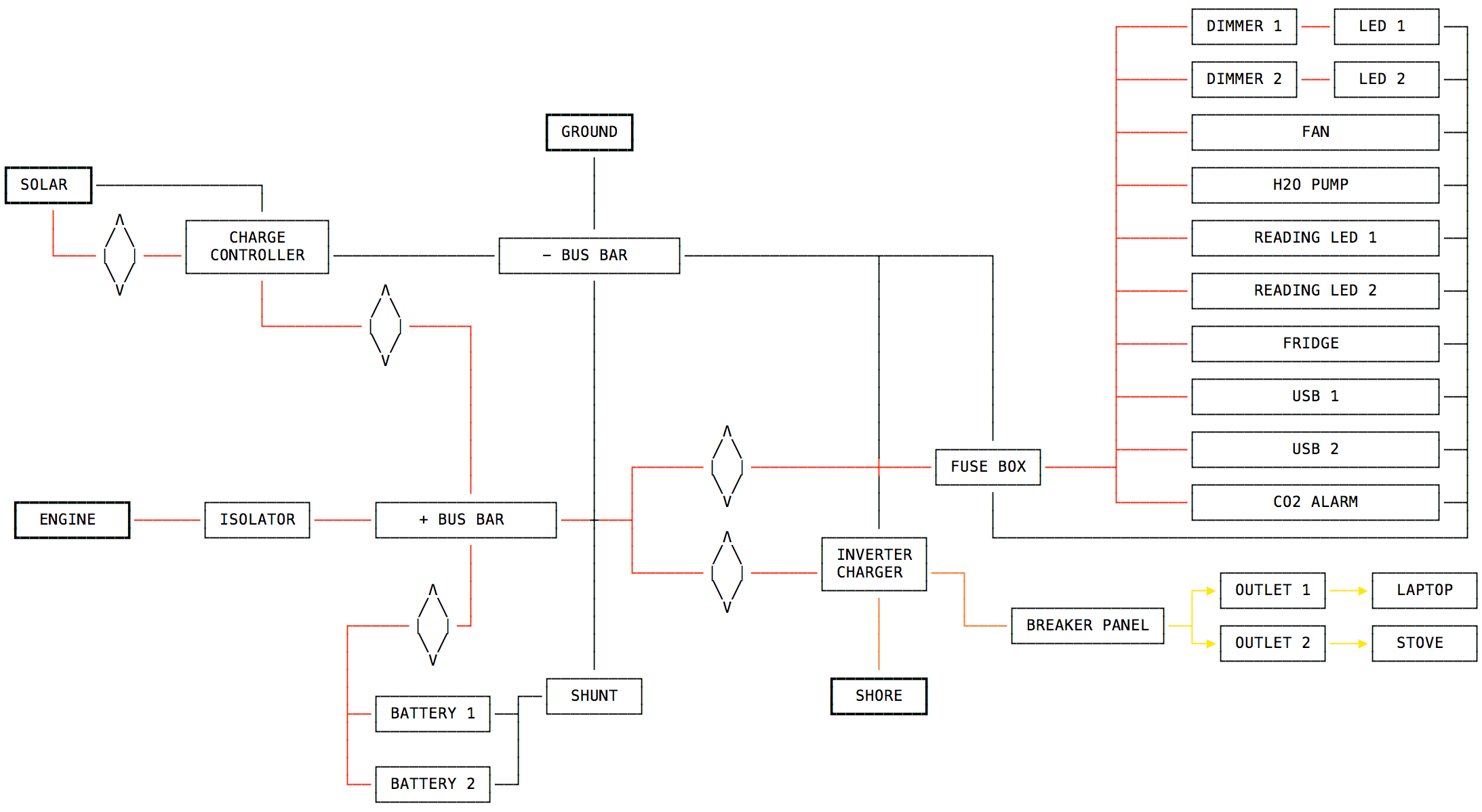

I also outlined what the wiring will look like. Diamonds denote fuses, heavy borders are energy sources. I used the app Monodraw to do this.

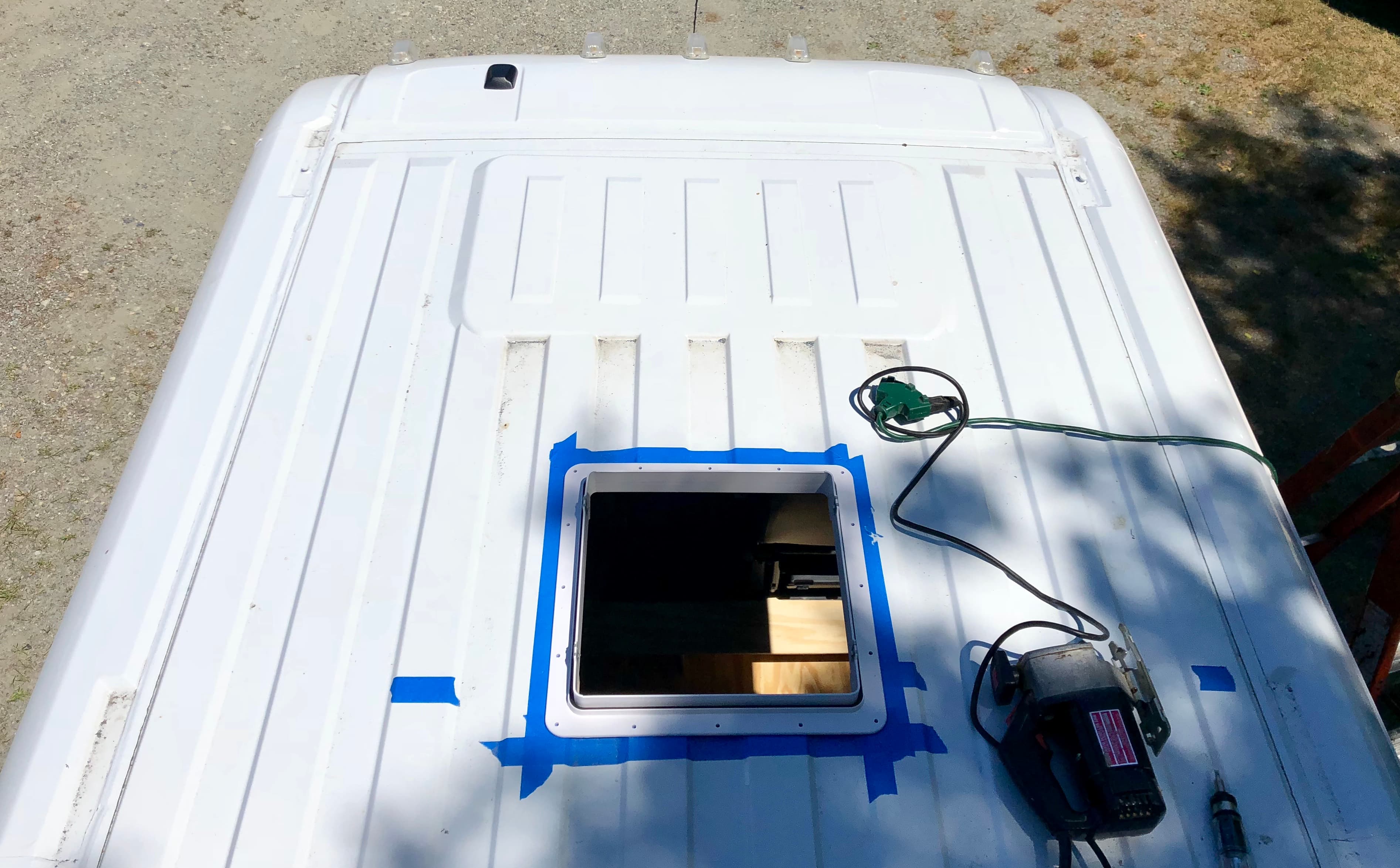

I taped and then cut a 14x14" hole in the roof and installed a Maxxair Fan. It has a rain cover, which is nice since I can keep the fan open even when it's raining. My dad was helping me that day, and we also installed a seat swivel base for the driver's seat. It fits well, so I ordered a second swivel for the passenger seat as well.

After installing all the 14 AWG, 12/2, and 10/3 wiring (for 12V appliances, 110V appliances, and shore power, respectively), I started on the insulation. I sprayed Great Stuff Pro into the rails/support beams of the van. Then I cut up a bunch of 1" polyiso rigid foam insulation and started installing it on the ceiling.

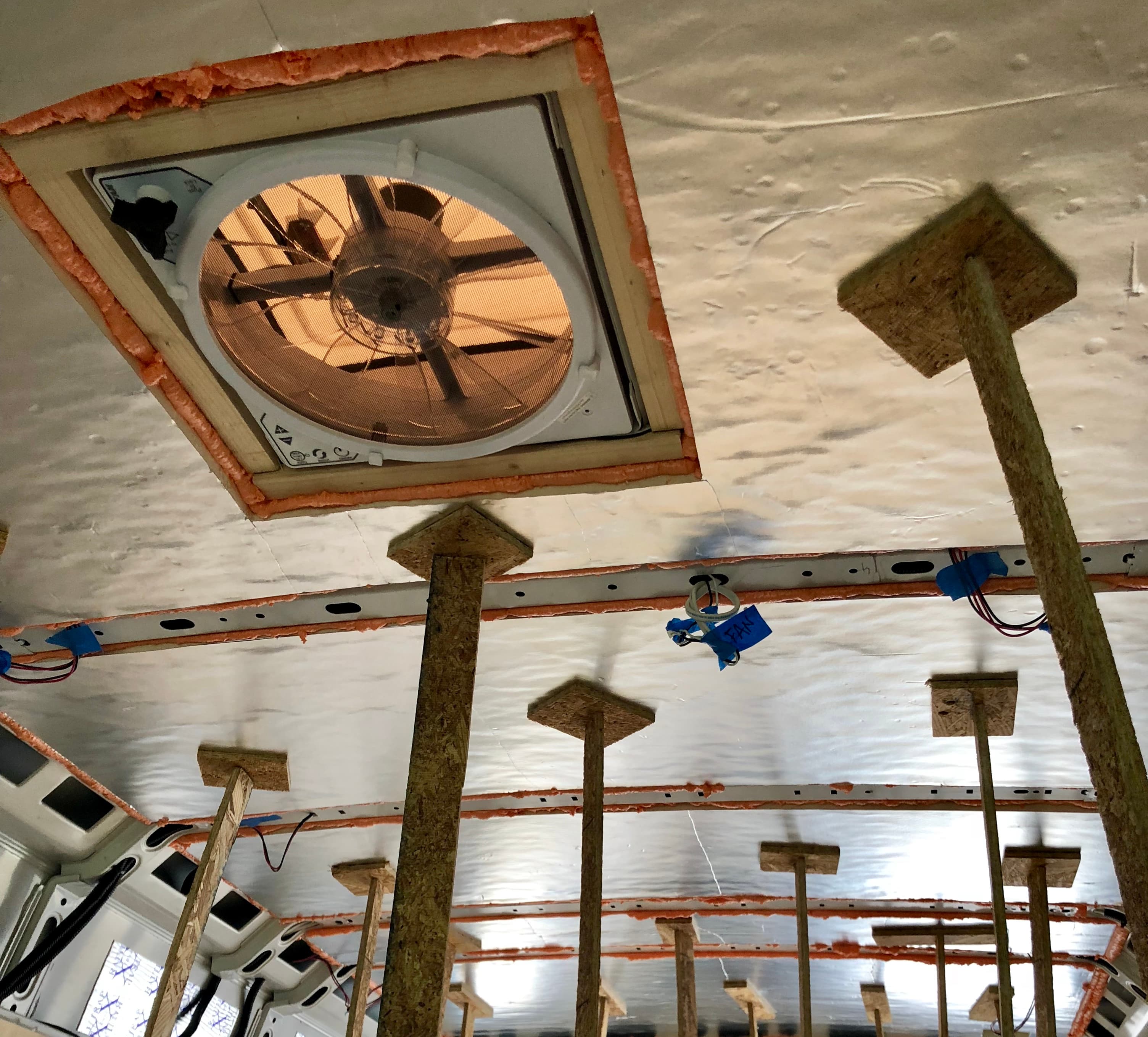

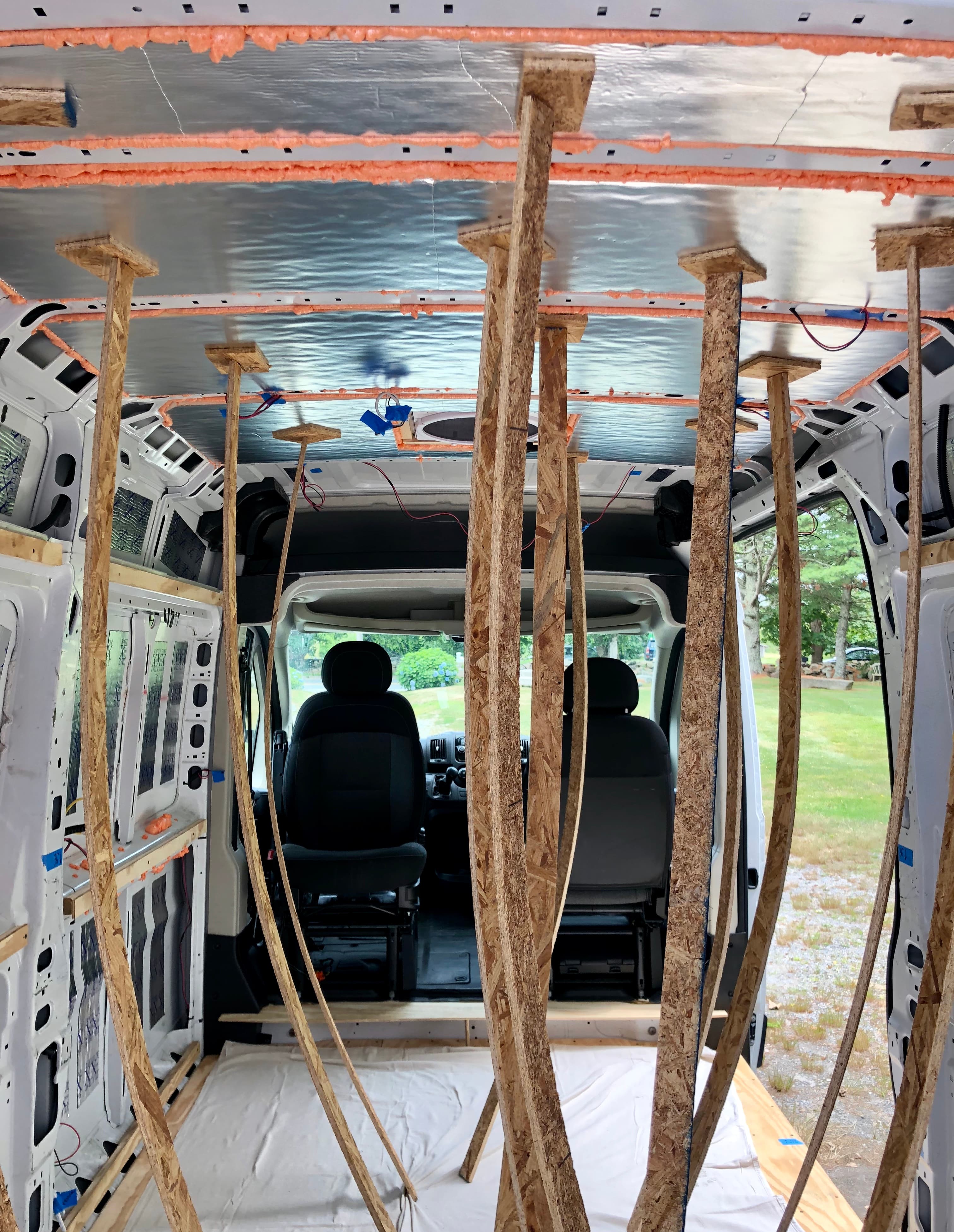

The wooden boards are 1/2" OSB cut into a bunch of 2" pieces. I used them to hold the insulation in place while I sprayed Great Stuff along the edges. Great Stuff will expand as it cures, and it holds the insulation in place really well.

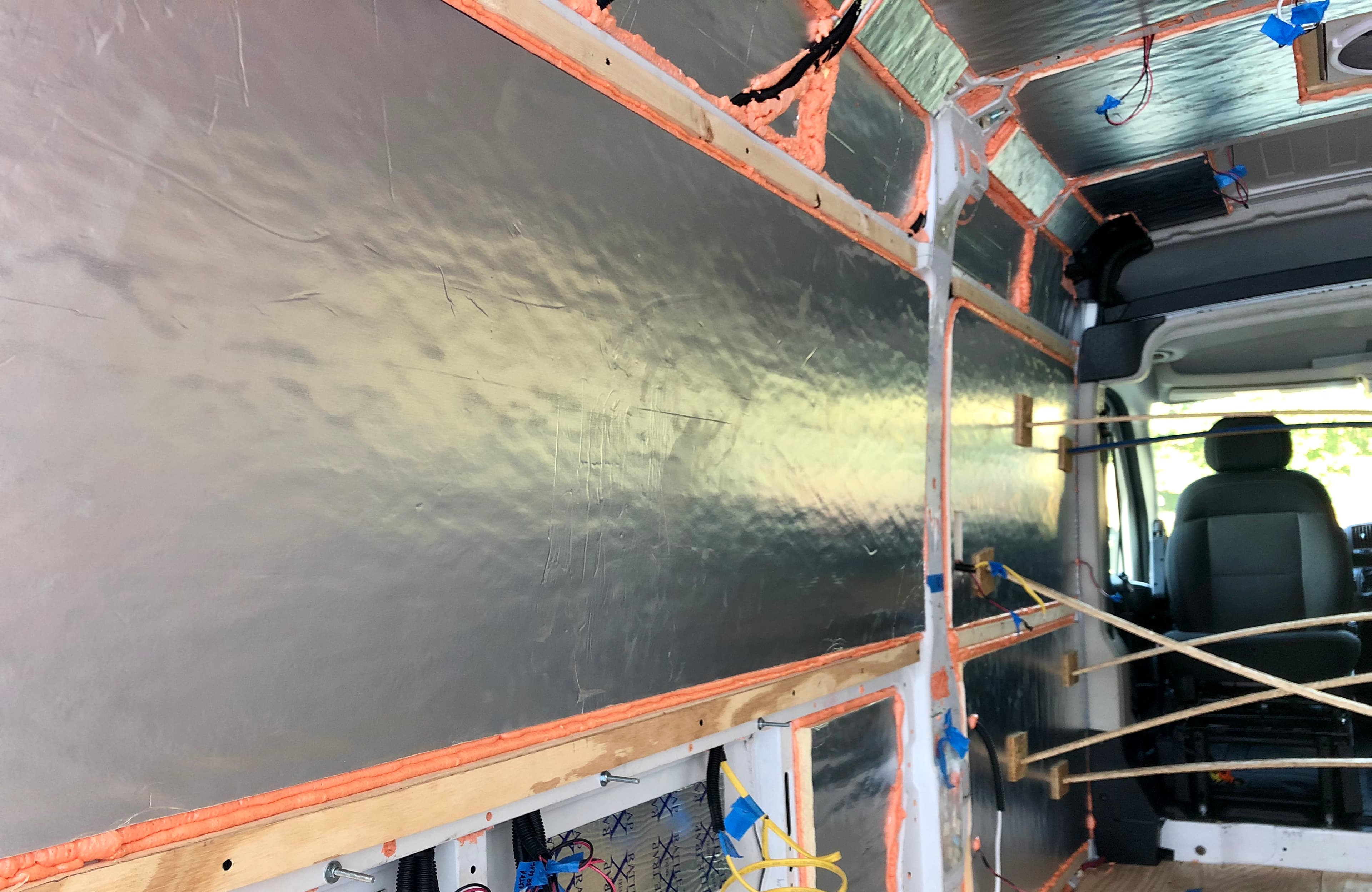

I installed 2" polyiso insulation on the walls. Installing insulation isn't much fun, it takes a while and is a pain to work with.

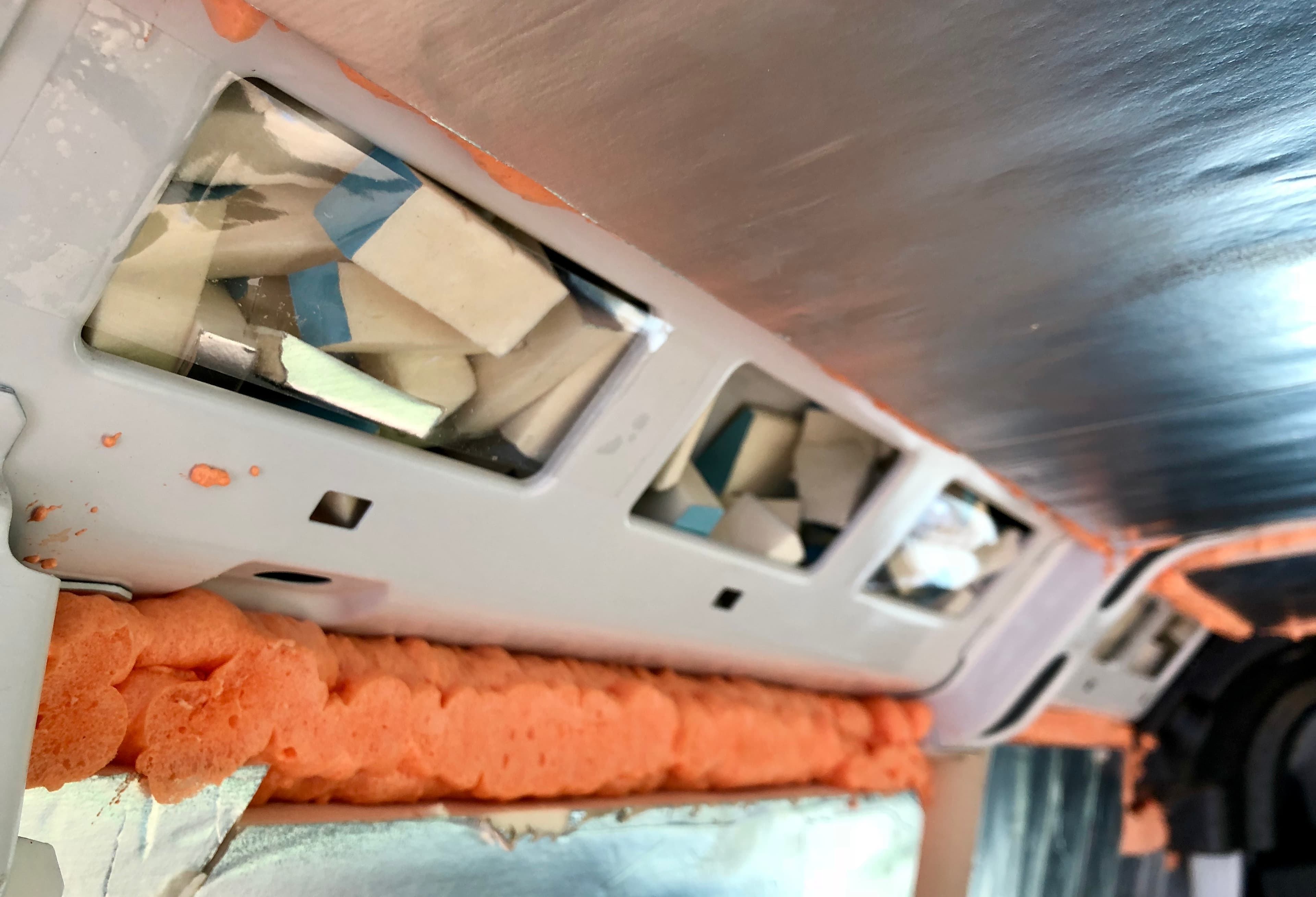

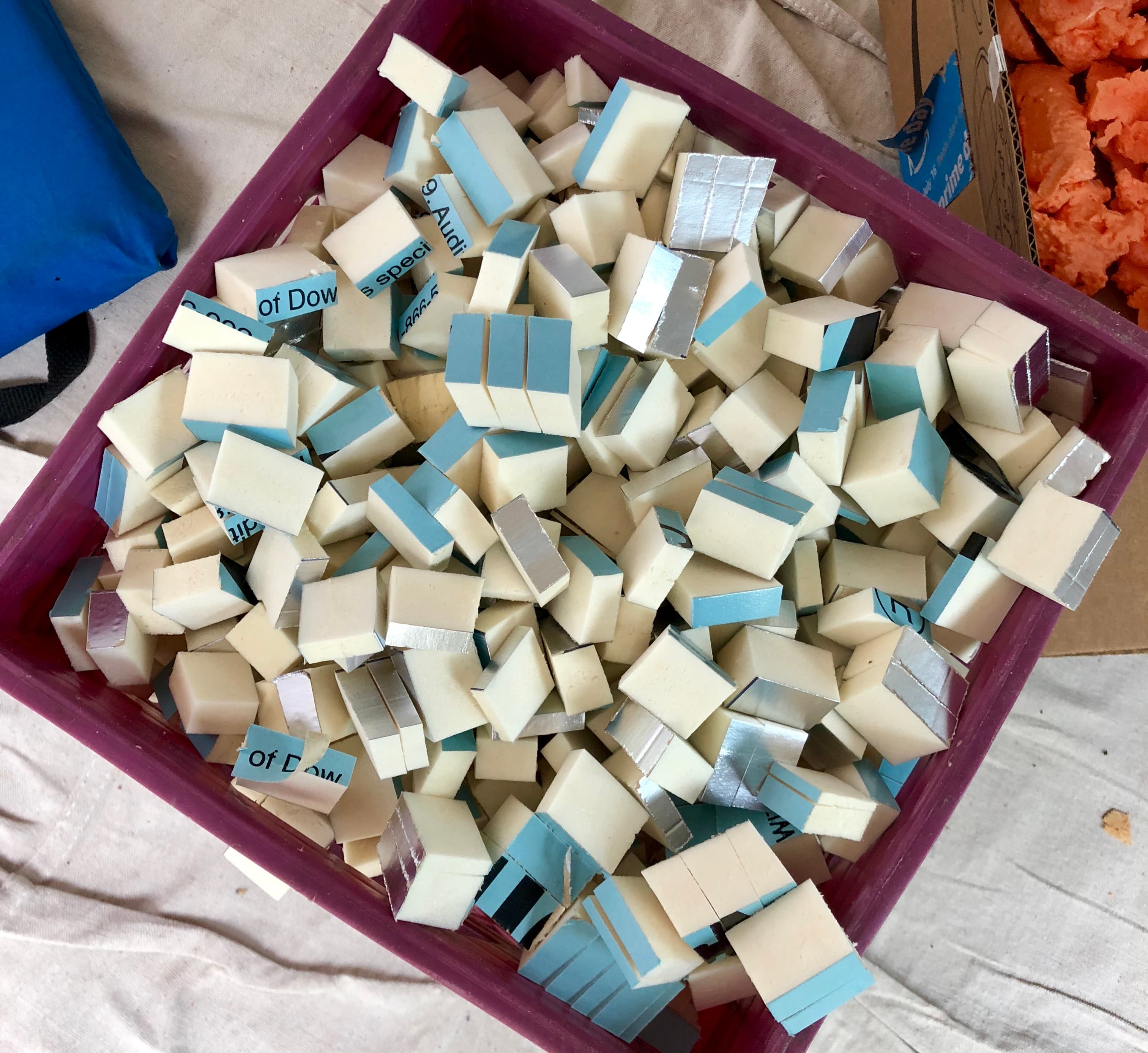

There are a handful of areas I needed to insulate that are too large for Great Stuff, but too small/non-geometric for foam boards (large vertical beams, roof corners). So I diced some of the extra polyiso foam and installed it in those areas.

I used some packaging tape to block off certain openings while placing the cubes inside.

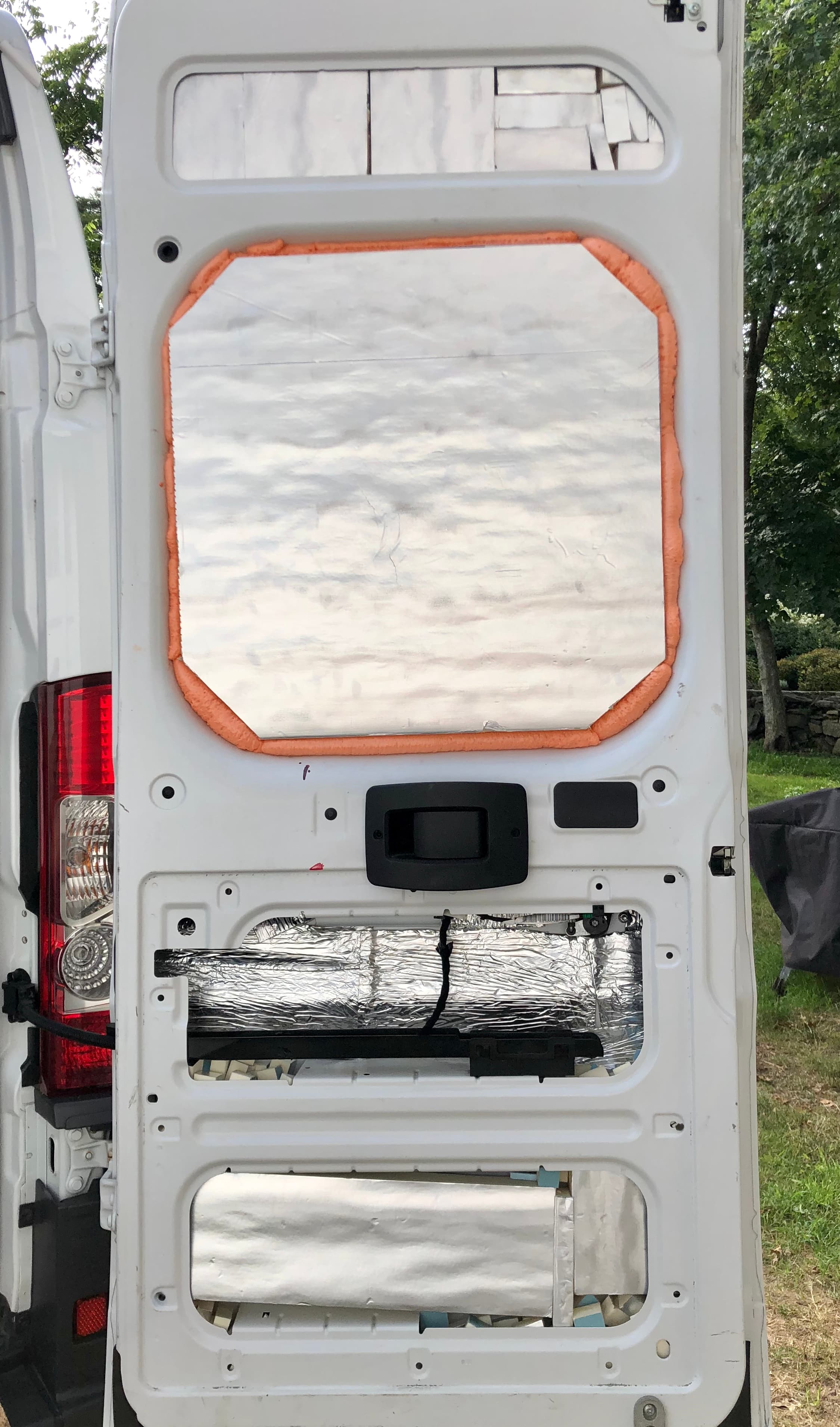

I insulated the doors using 2" polyiso foam in the non-mechanical areas, and Frost King Insulation Tape in the areas that involve moving parts (handle, spring, etc).

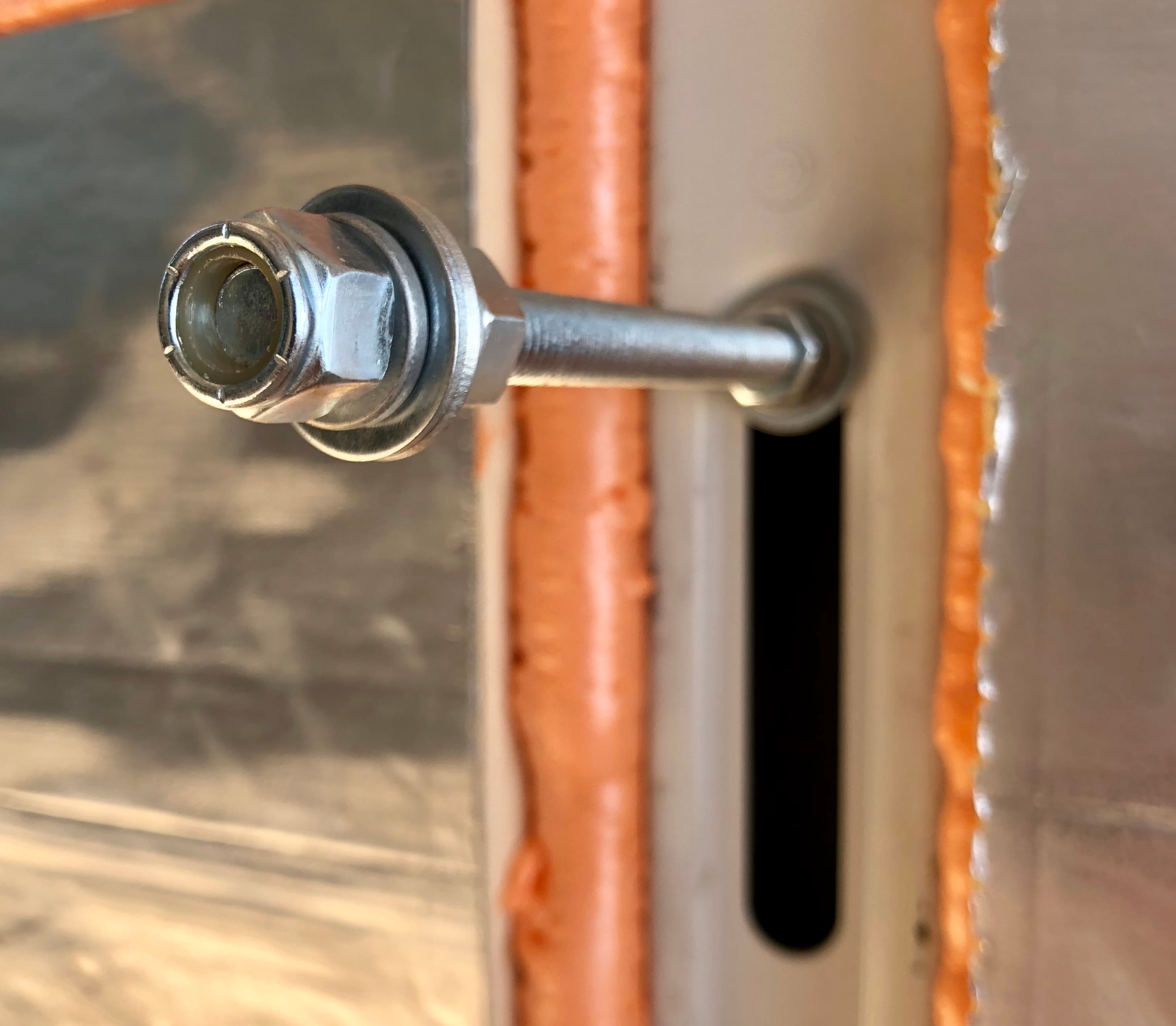

I had to install bolts to anchor the bed frame to the van prior to adding the 1" poliyso insulation, since the 1" insulation will cover the rails of the van. These are 5" full-thread 5/16" bolts.

I covered all the individual 2" polyiso panels with 1" panels. This will be the final layer of insulation prior to installing the plywood sheathing.

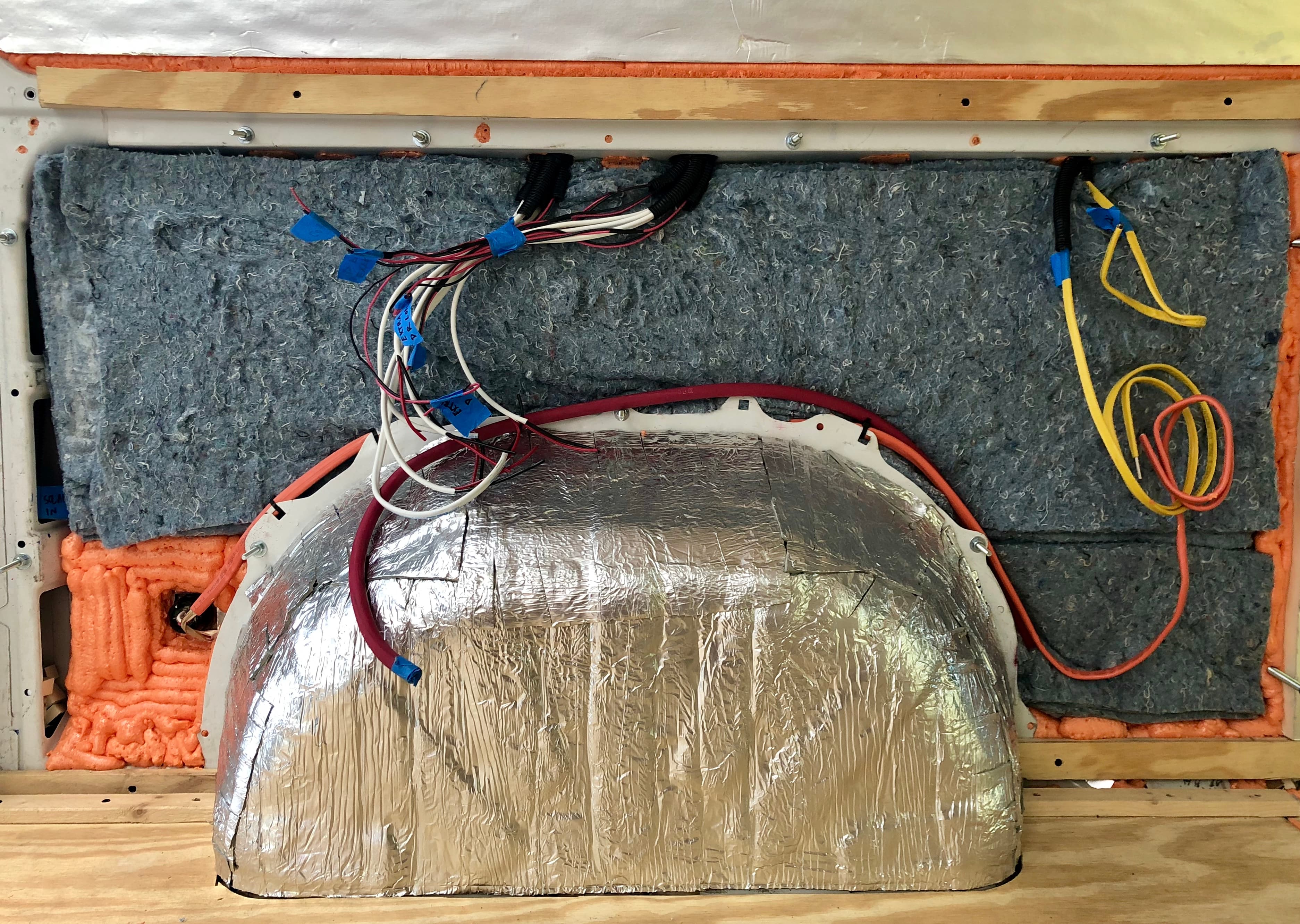

I used 5 rolls of Frost King 1" denim insulation behind the electrical board, instead of the polyiso foam. This will allow me to move wires more freely without needing to carve specific channels.

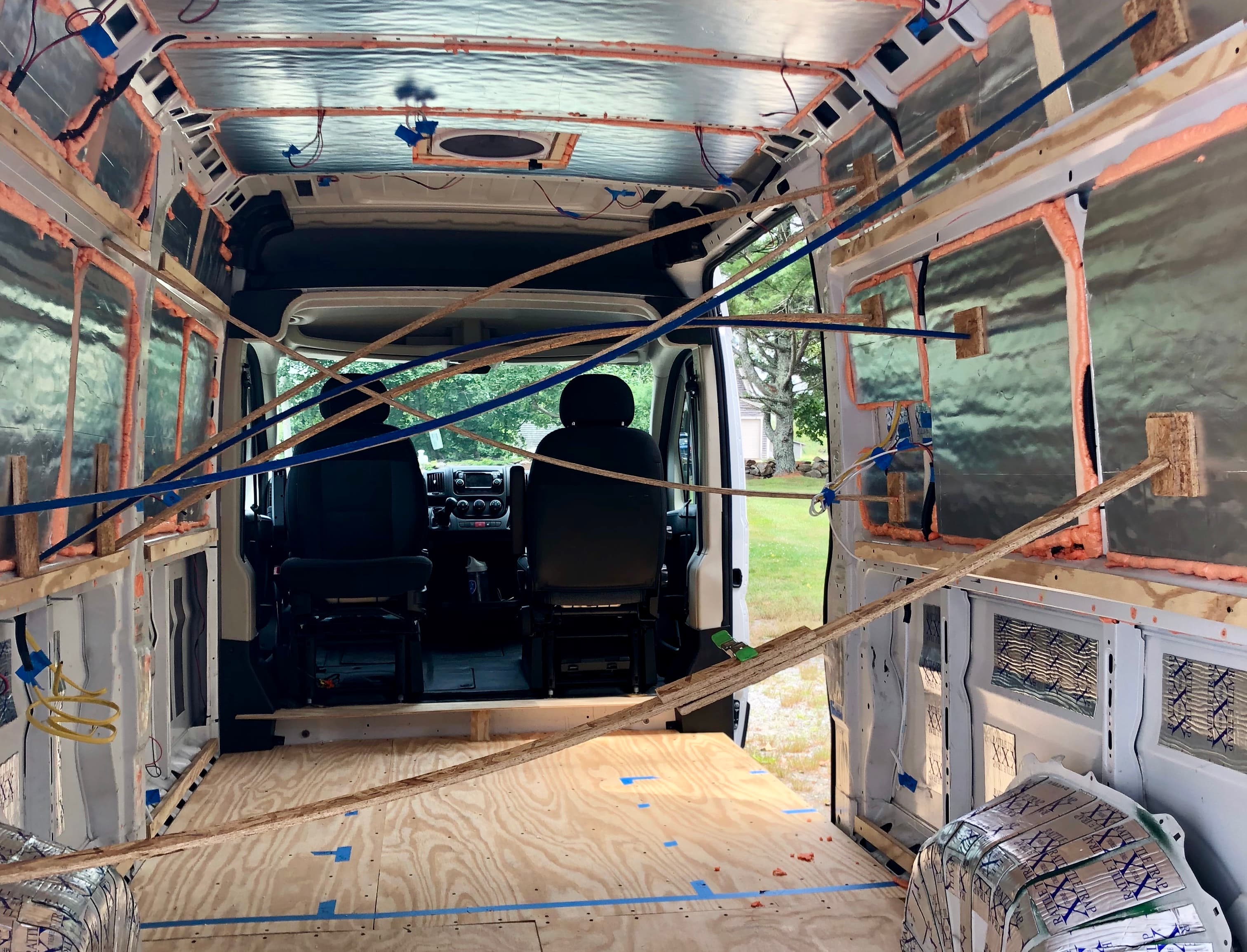

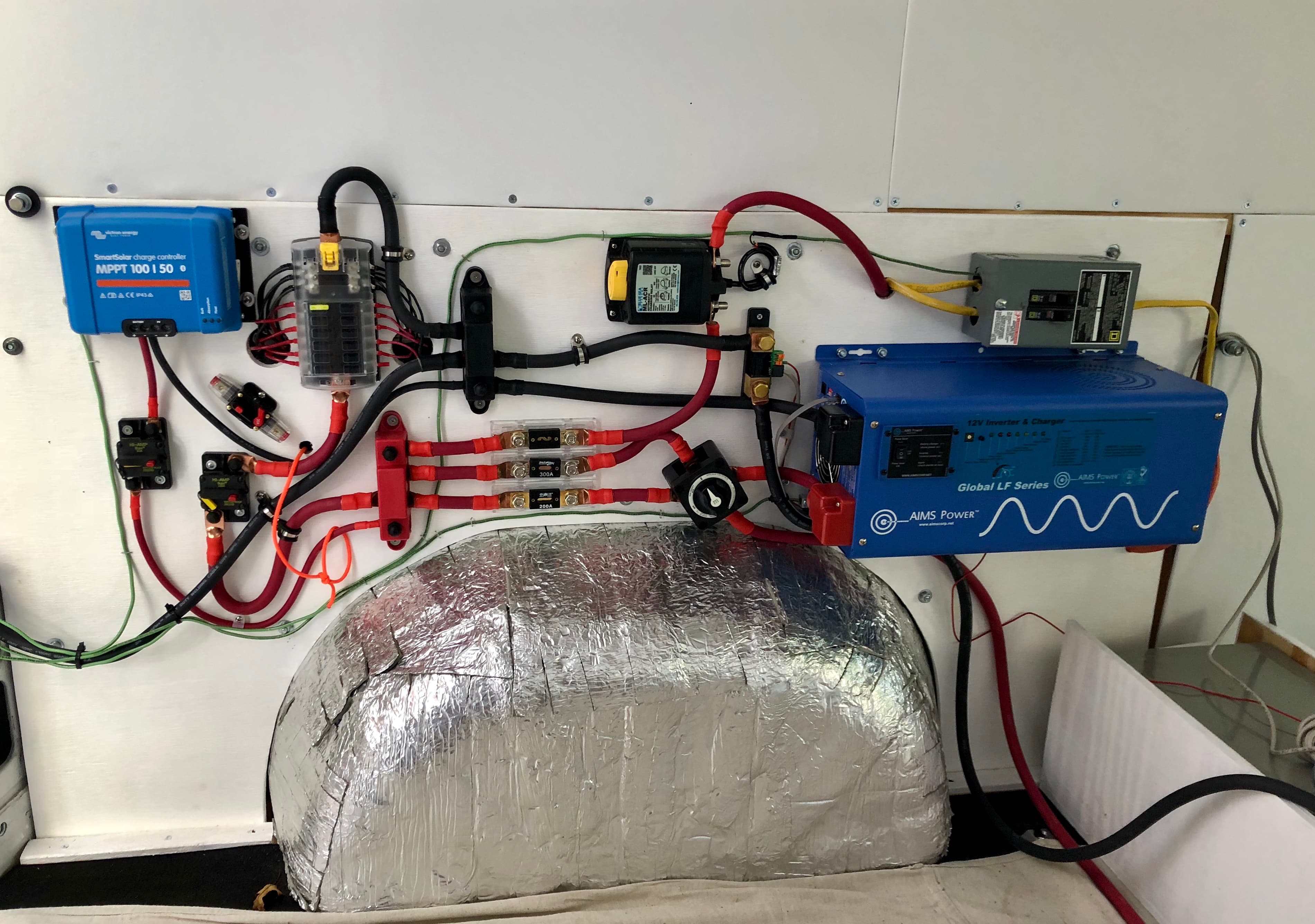

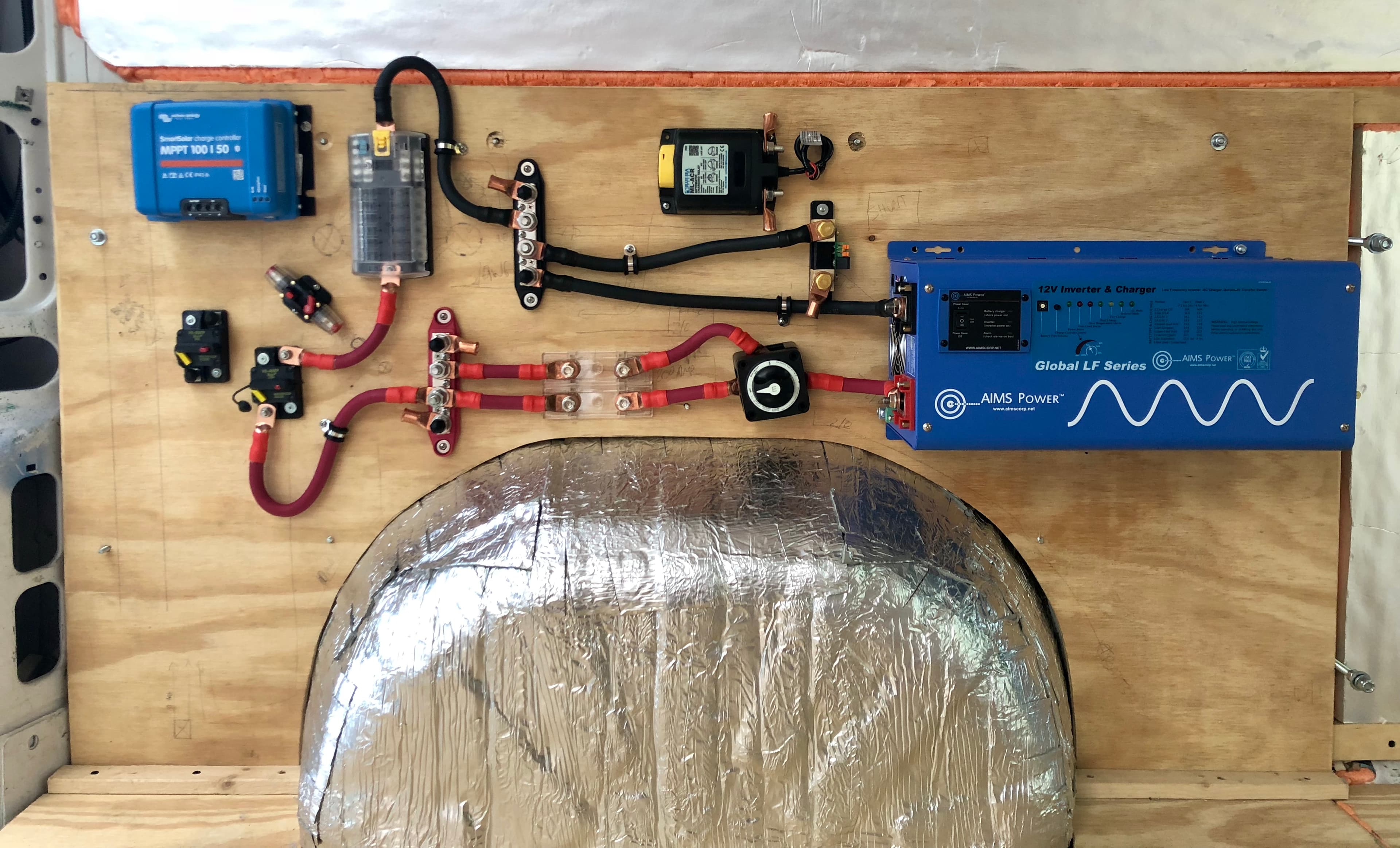

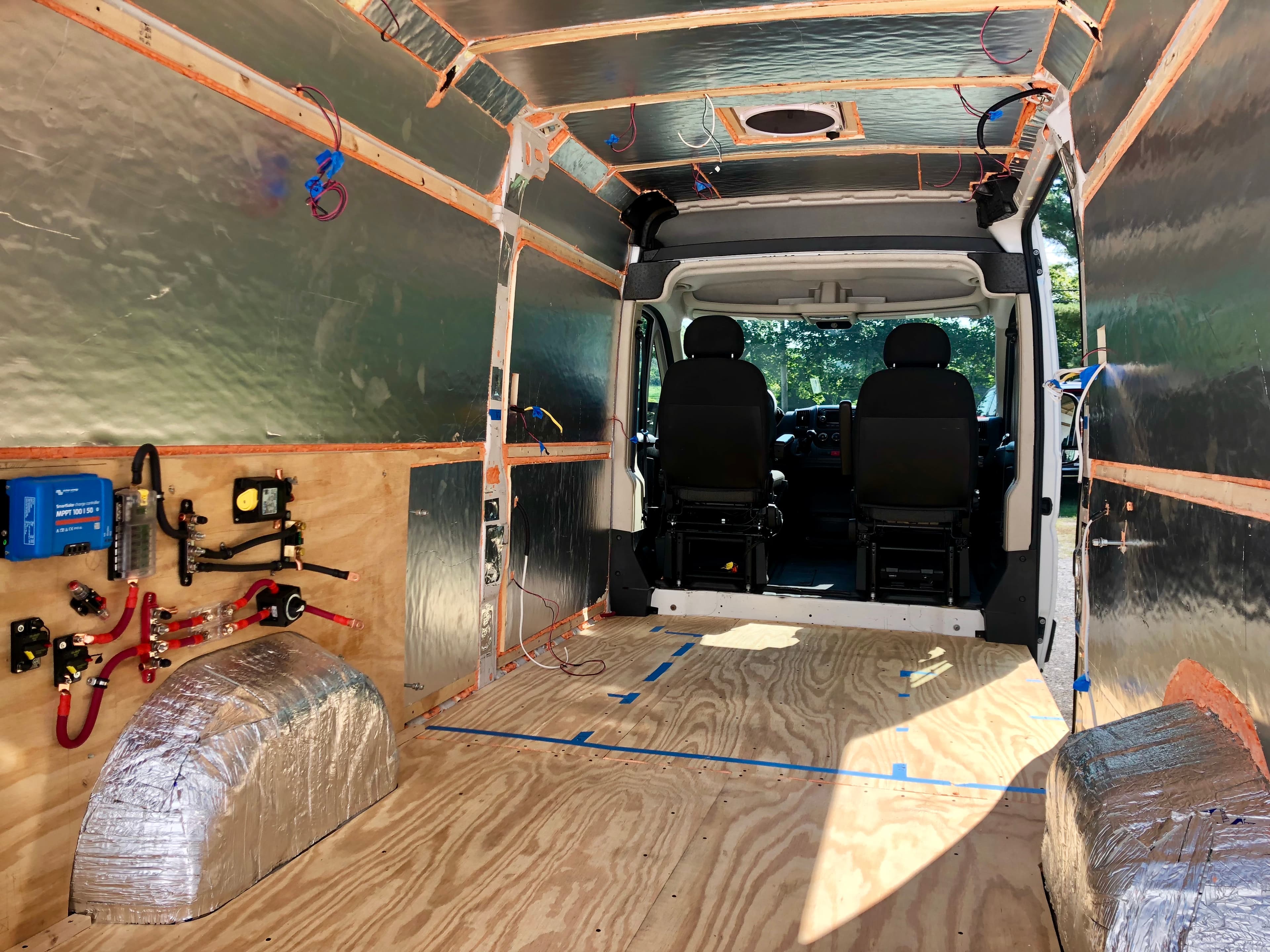

Finally, with insulation being (more or less) complete, I started wiring the electrical board. I outlined where all the wires will run, and I will eventually take this all apart prior to finalizing it.

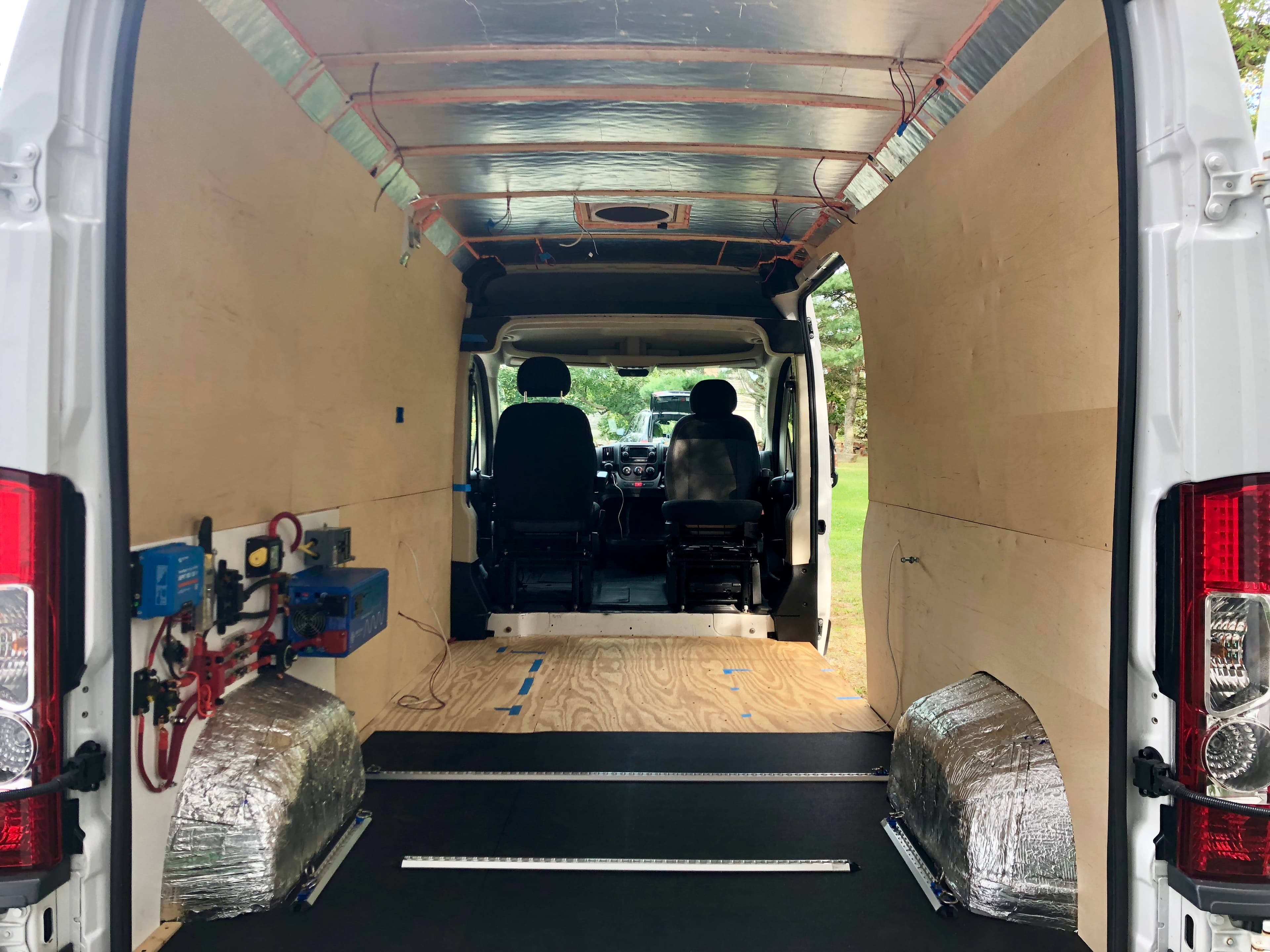

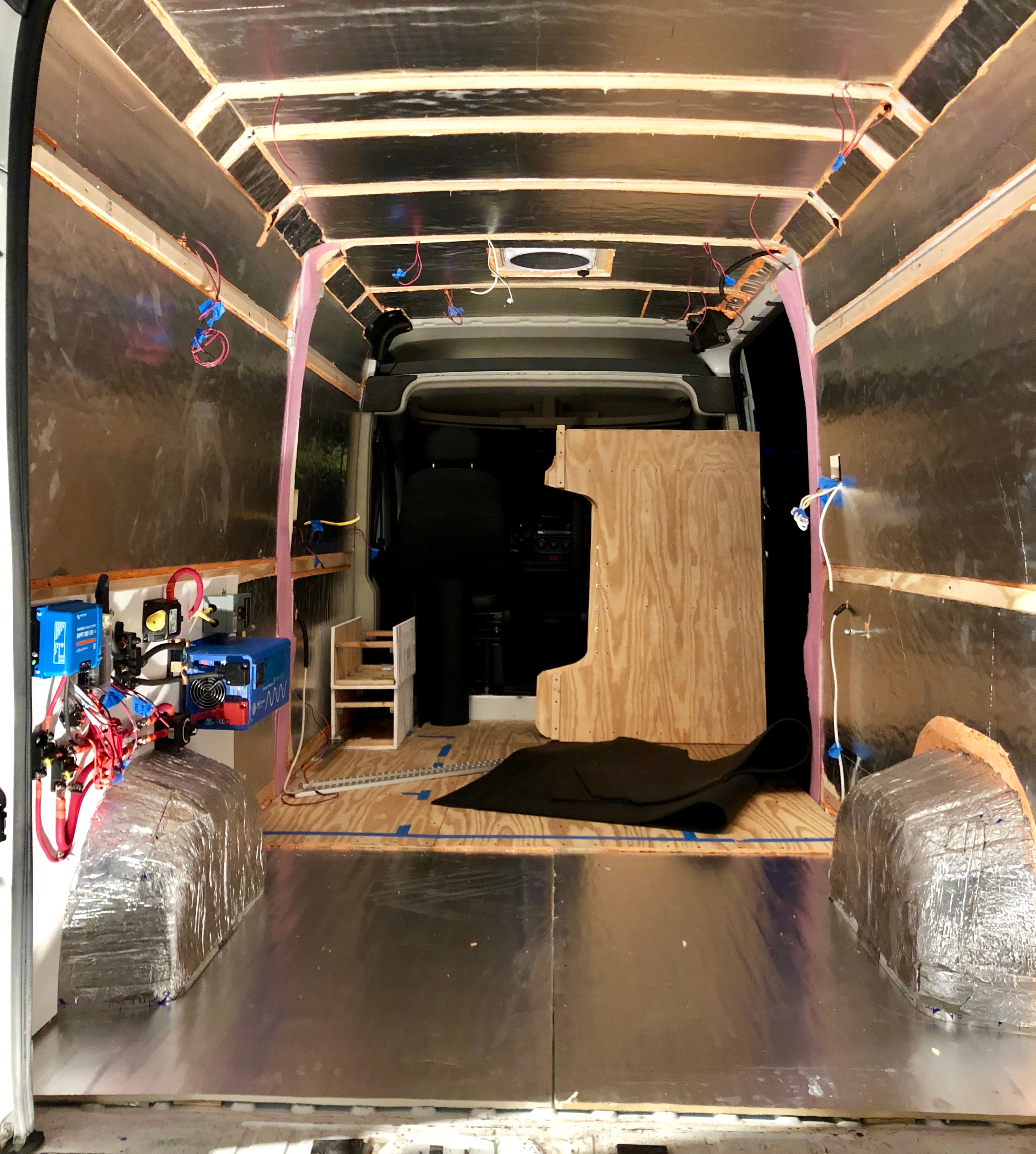

What the van looks like prior to starting the plywood sheathing, which will cover the entire interior.

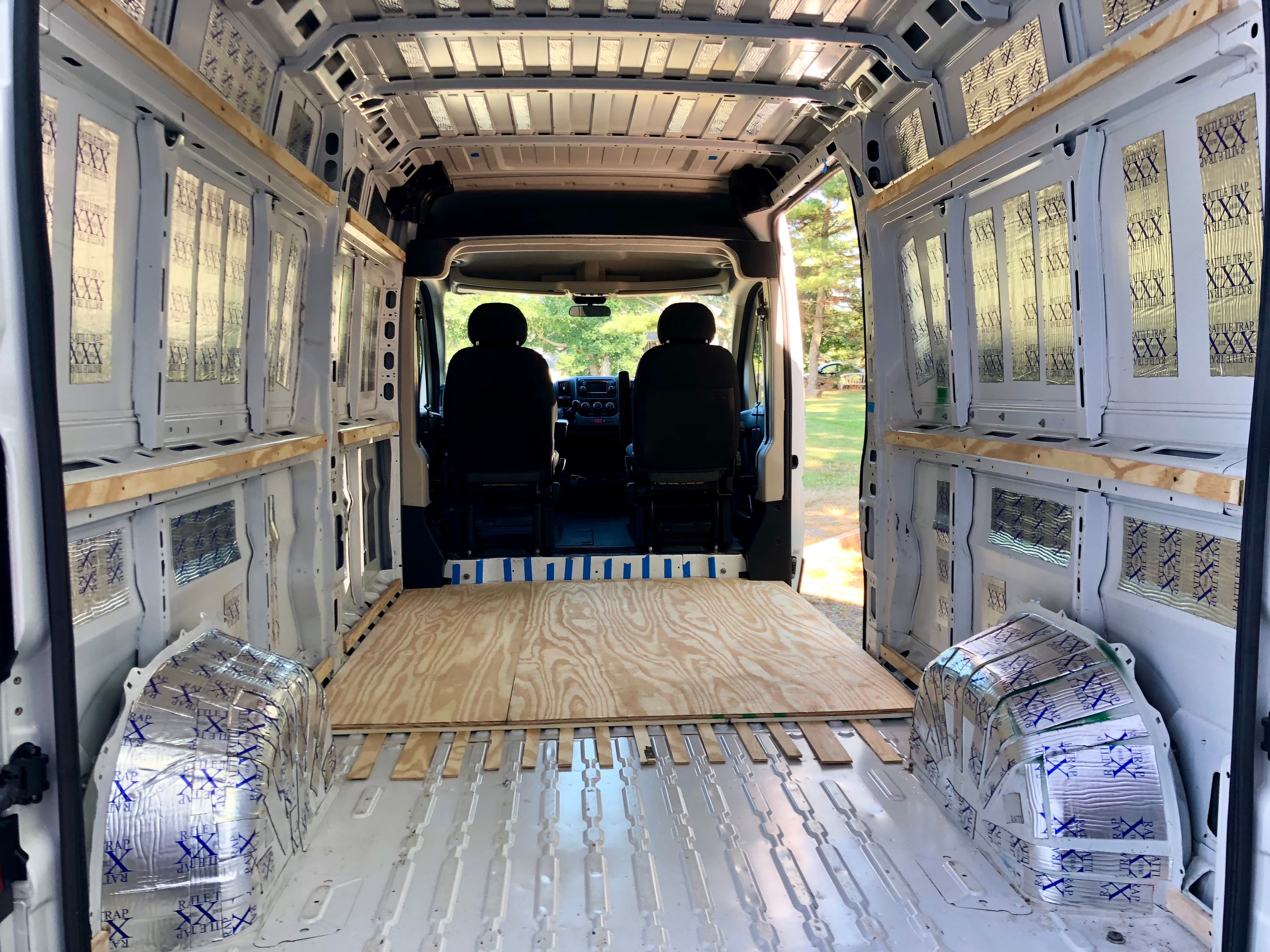

Prior to working on the plywood sheathing for the walls, I ended up removing the rear floor in order to install T-nuts, which will be used to mount the L-track system in place. I should have done this when I originally installed the floor, but at that time I wasn't planning to use L-track.

T-nuts allow you to attach bolts to an area where you don't have access to the back. In this case, I won't be able to hold a nut in place while I tighten the bolt holding the L-track in place, which is why I used T-nuts. They're often used on climbing walls, since you're unable to access the rear of the wall while installing/changing the holds. The L-track will be anchored into the T-nuts using 1/4x1" stainless socket screws.

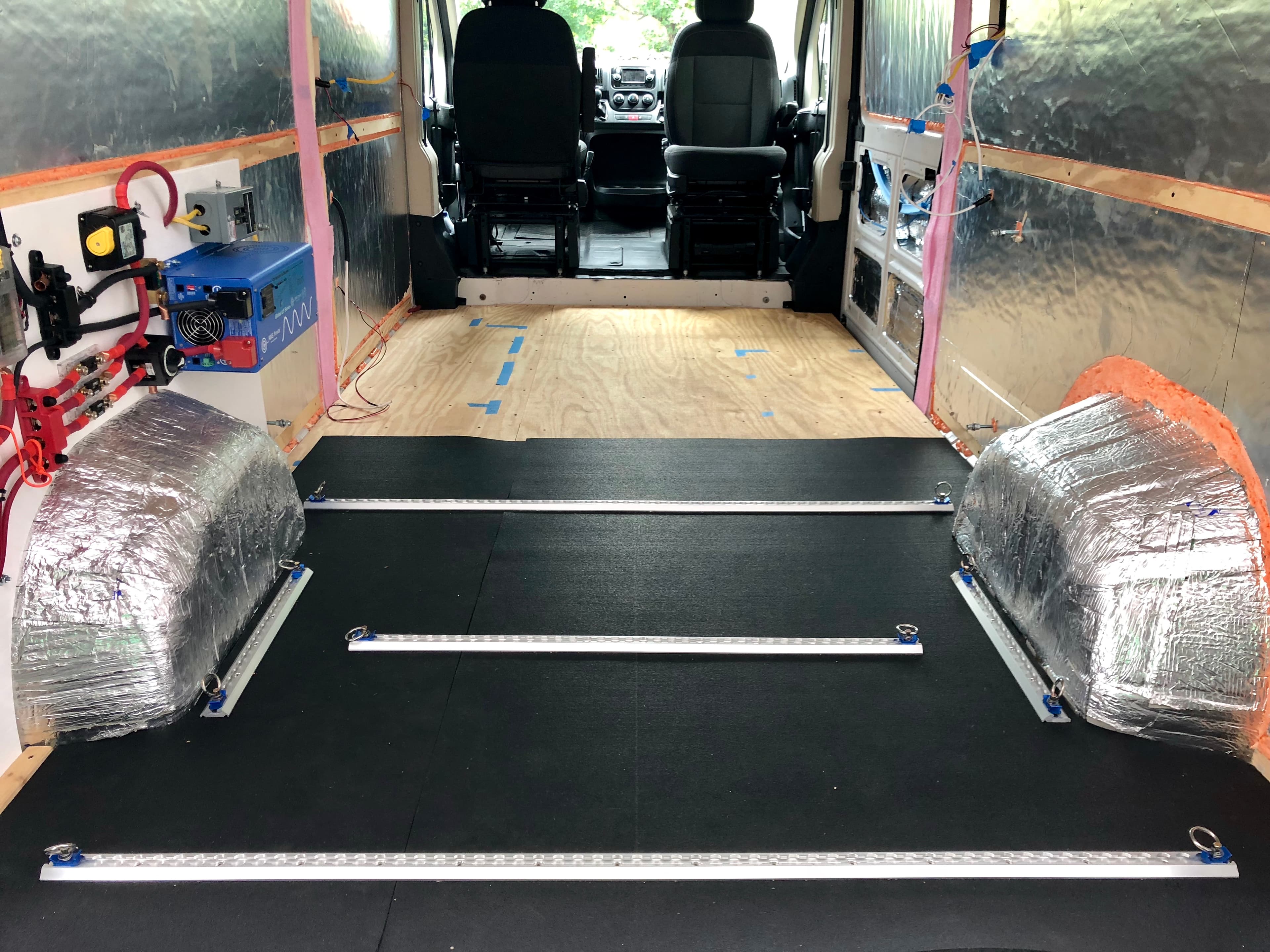

Between the L-track and 1/2" plywood floor, I added 1/4" recycled rubber mat. This will act as a sound dampener and create a more durable surface for the "garage". It's the type of mat you would find in a gym under the weights & equiptment.

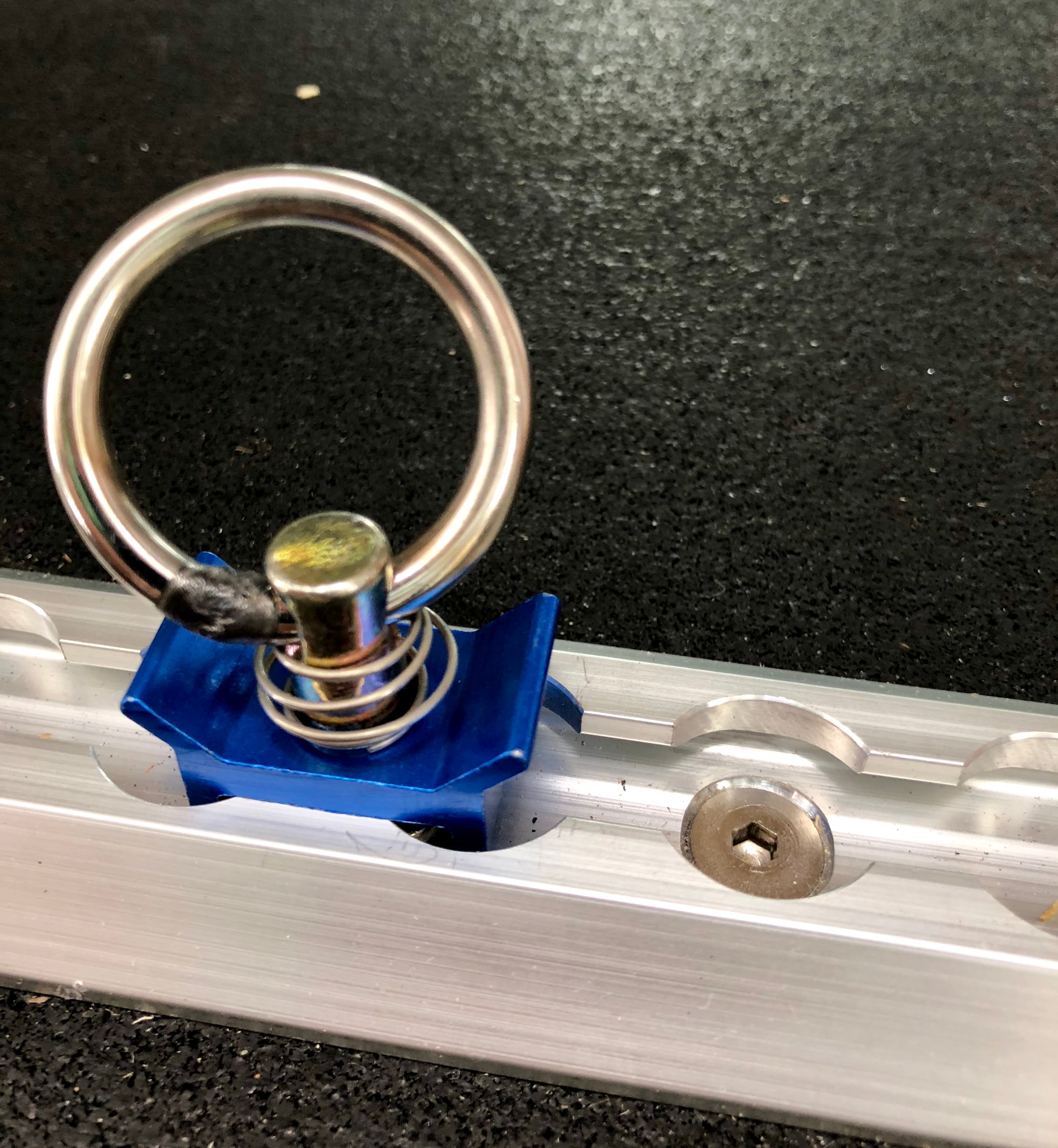

L-track is nice because it's modular and lightweight, and you can find all sorts of anchors/tie downs for it. I purchased 10 fittings with rings that I can easily reposition & tie things to. This is also how I will secure the batteries from moving around.

I cut & shaped 1/4" birch plywood for all the walls and ceilings. After installing and making sure everything fit together, I removed the pieces in order to upholster them in a white vinyl I found on Amazon. I decided to use vinyl instead of paint because it's easier to clean and should make for a slightly quieter ride.

I ended up going with 3x 175 Watt Newpowa solar panels. 525 watts of solar is probably more than I need, but since I'm going to be installing an induction cooktop, I figure more solar is better so I'm not as limited in when/what I cook. The panels fit well on the roof and sit just behind the roof fan. They're mounted less than 1" off of the roof, so when looking at the van from street level, you can't exactly tell they're solar panels.

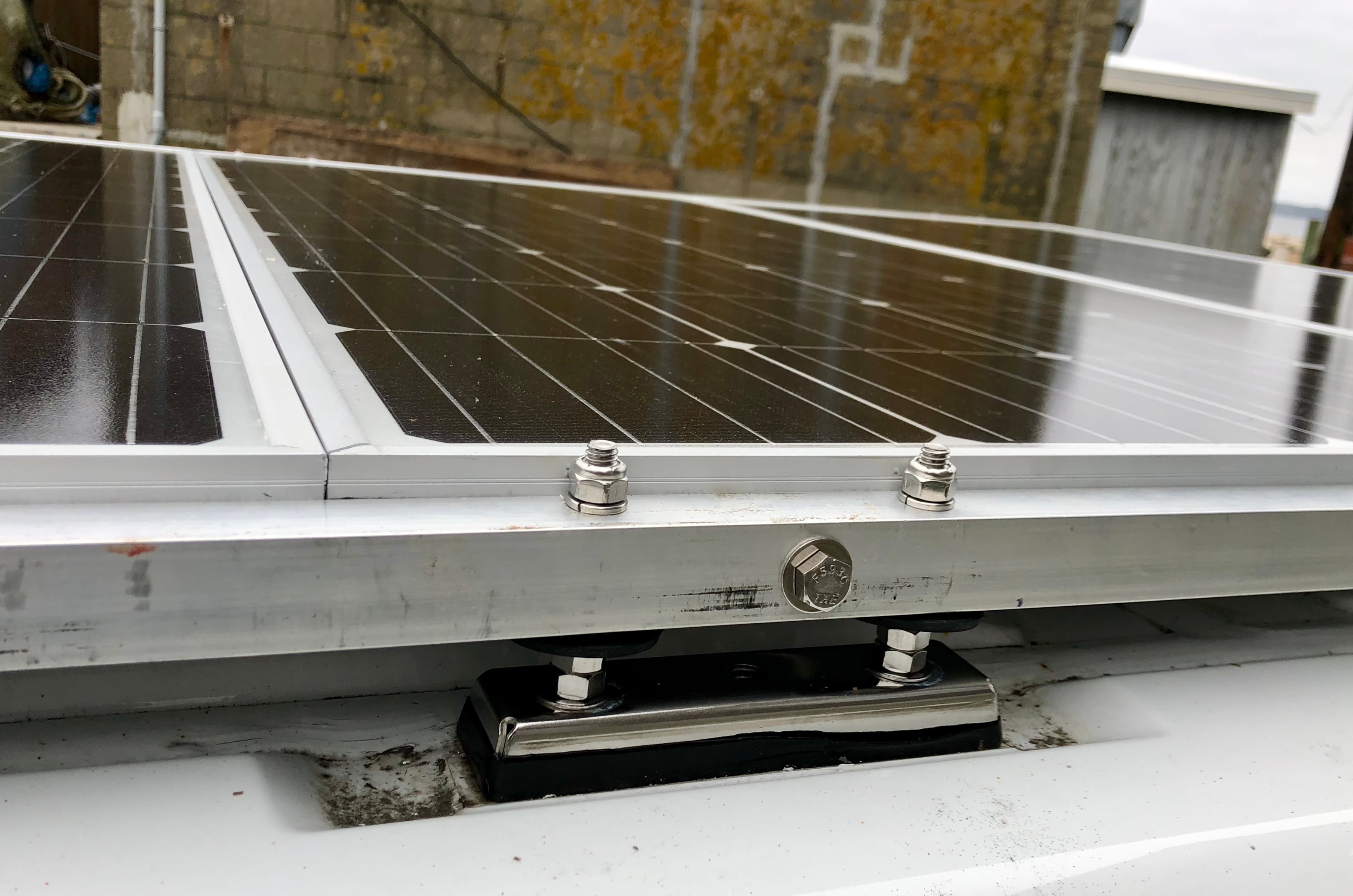

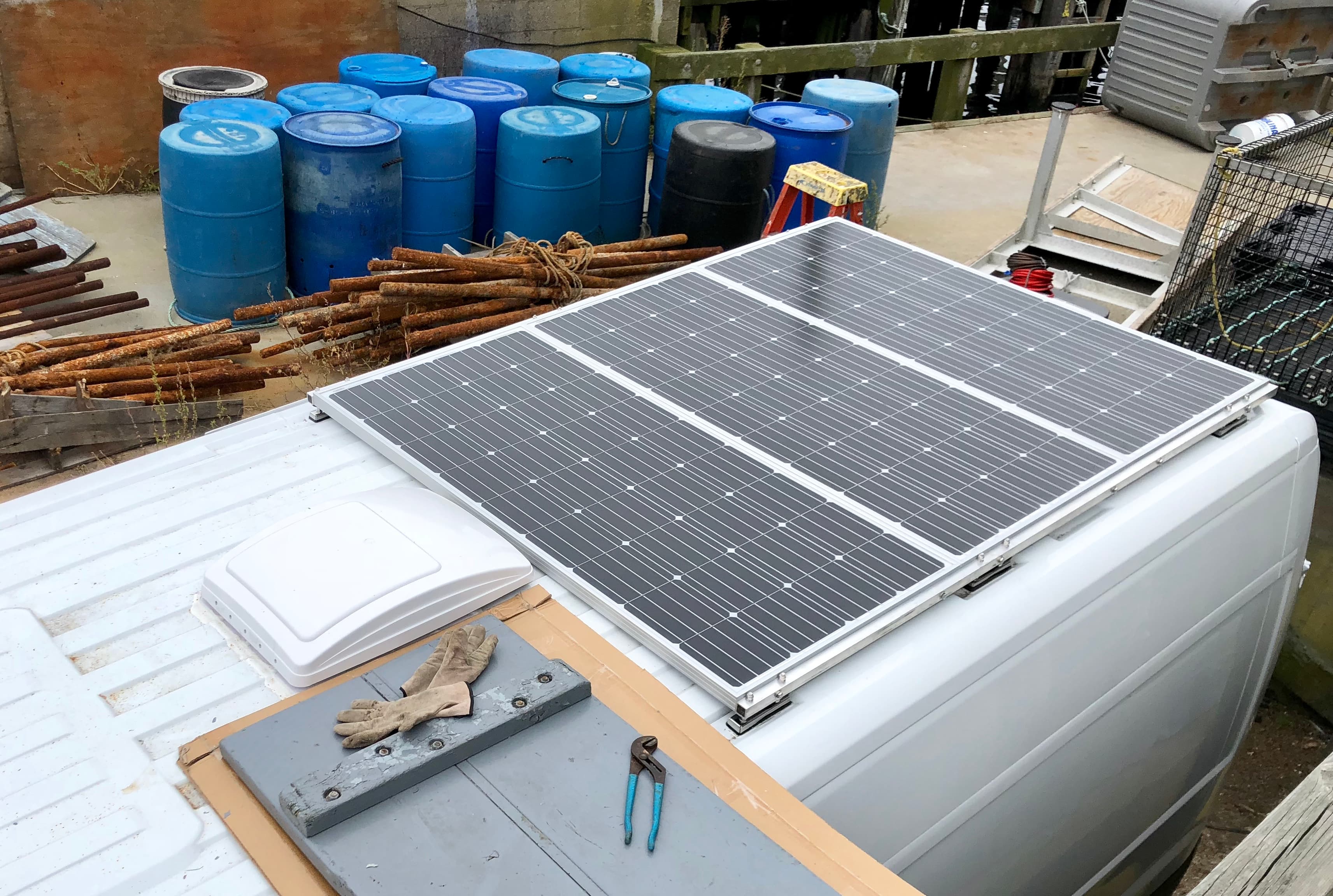

I first attached all 3 panels together using 1" square aluminum tube and 5/16" stainless bolts & washers (the bolt facing the camera in the above picture). I then used 5/16" carriage bolts to attach the entire frame to the van's factory installed roof rack tie downs (the bolts pointed up in the picture). I bought the roof rack brackets from Vantech and they fit really well, far better than drilling holes in the roof in my opinion.

Once I finished upholstering the plywood sheathing in vinyl and confirmed the electrical system worked as planned, I started wiring all the USB ports, outlets, and ceiling LEDs.

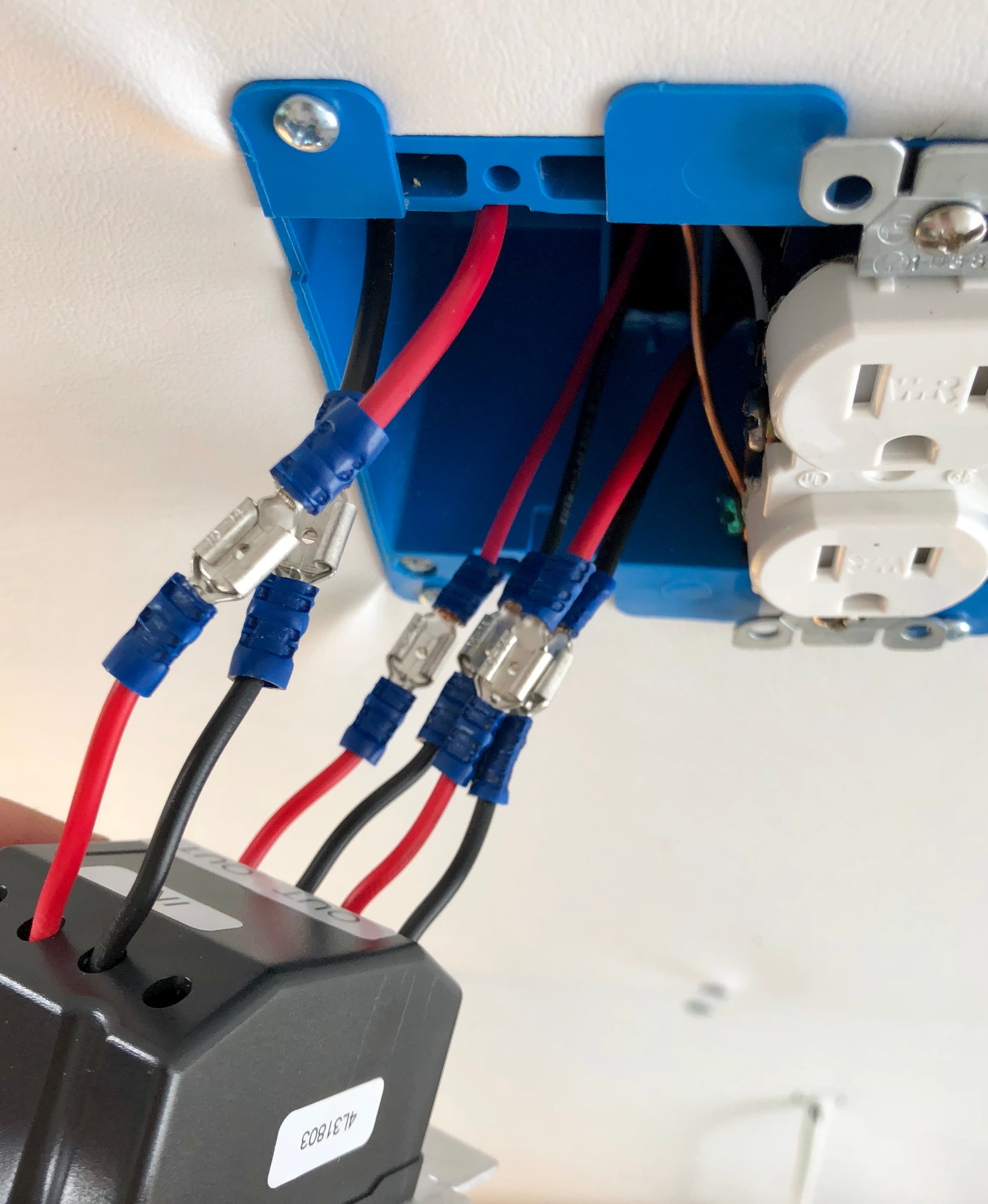

This is wiring for a 2-zone dimmer switch, so I can control the front & rear ceiling LEDs from the same switch.

Wiring the ceiling LEDs in series/parallel. This is the setup before soldering and adding heat shrink tubing.

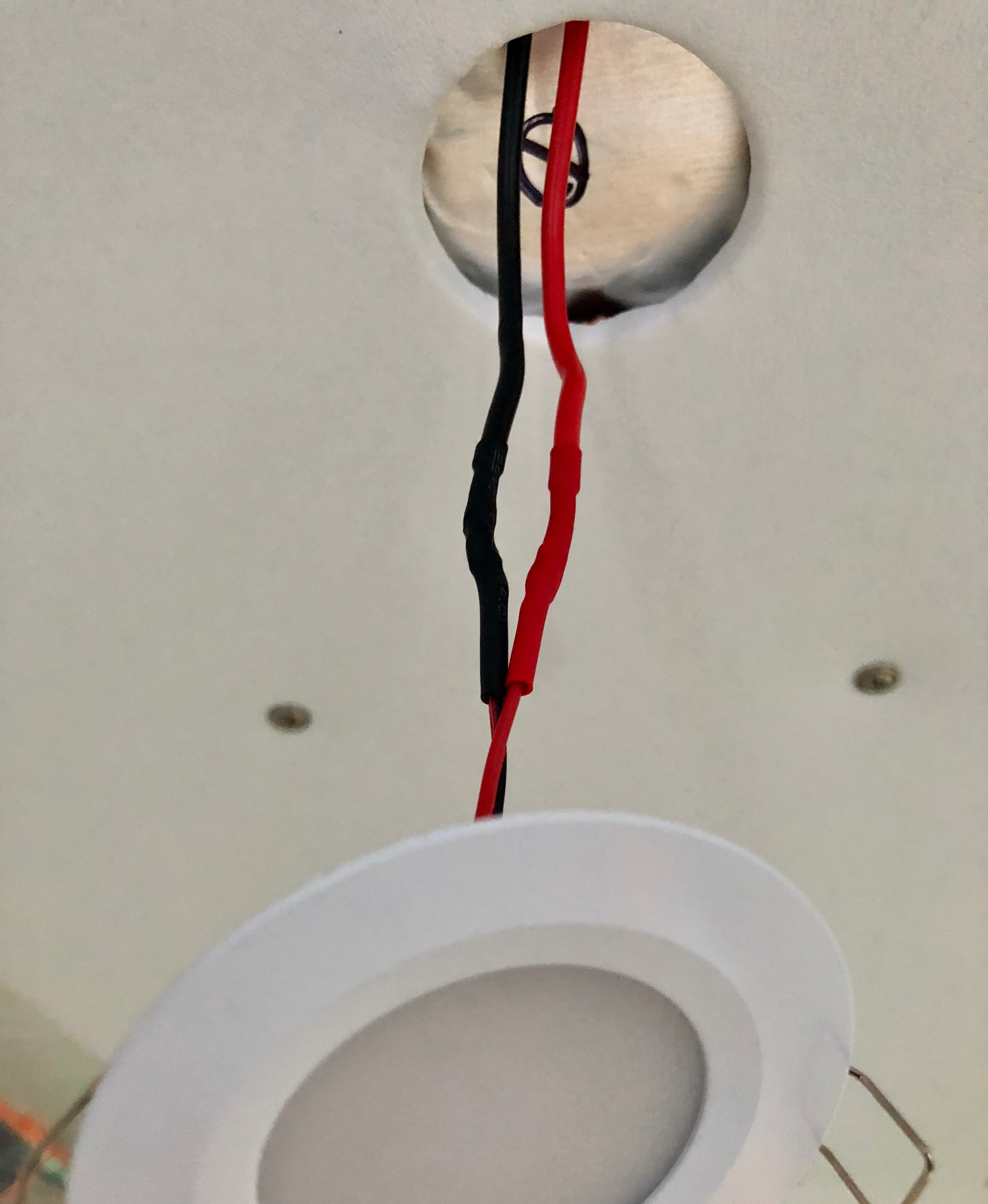

A ceiling LED after it's been wired. This will be mounted in the hole in the background and so it sits flush with the ceiling.

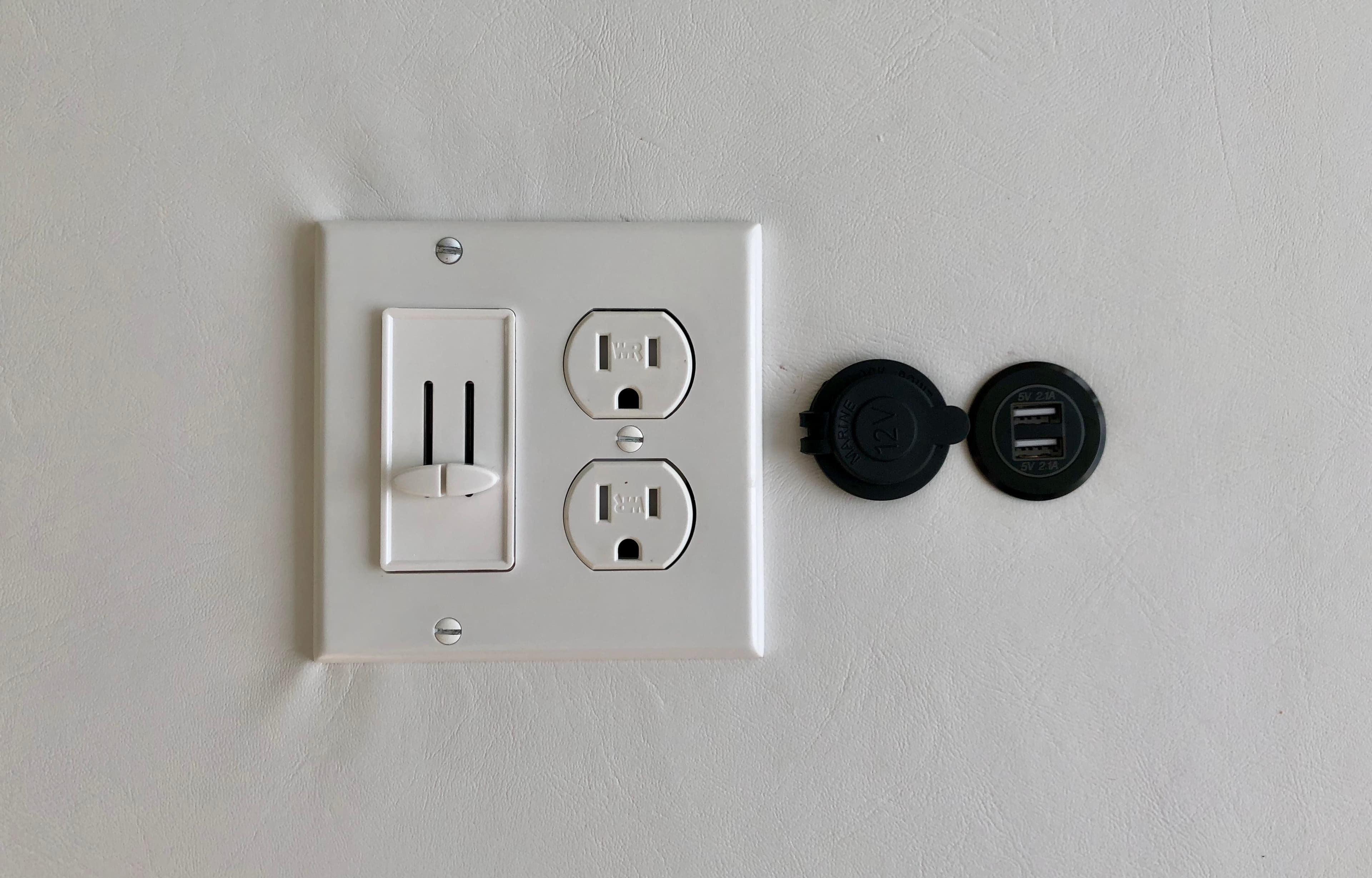

Installed from L to R: ceiling LED dimmer switch, 120v AC outlets, 12v cigarette outlet, 12v USB ports.

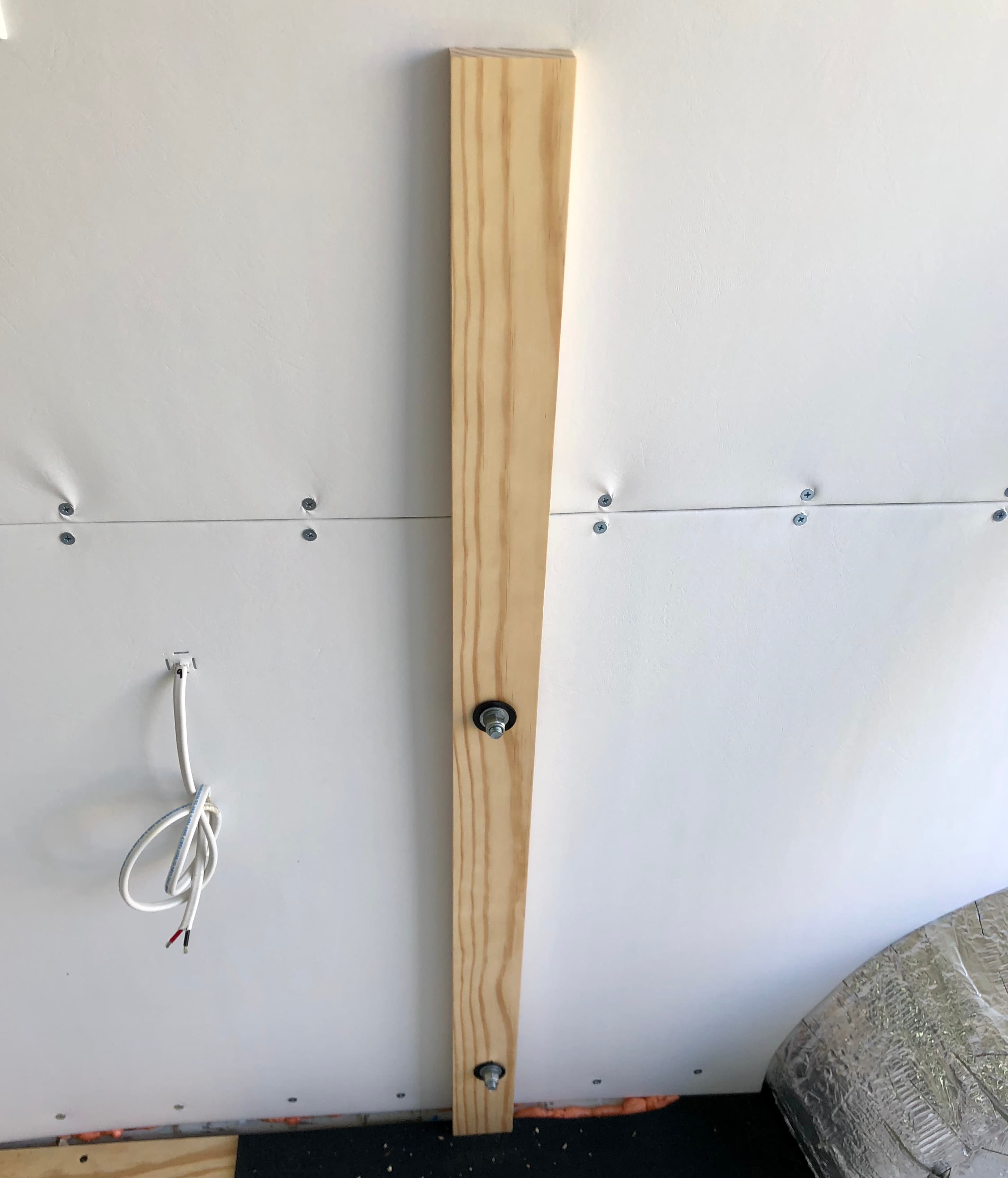

That just about finishes the "foundation" of the van, almost everything from here on out will be building the interior (bed, cabinets, etc). First step was to install the bed posts. As mentioned in Step 8, I had previously installed bolts attached to the vehicle frame that would anchor my bed frame. So I installed the bed post, which is made of 1x4" clear pine, and then began to construct the frame that the mattress will rest upon.

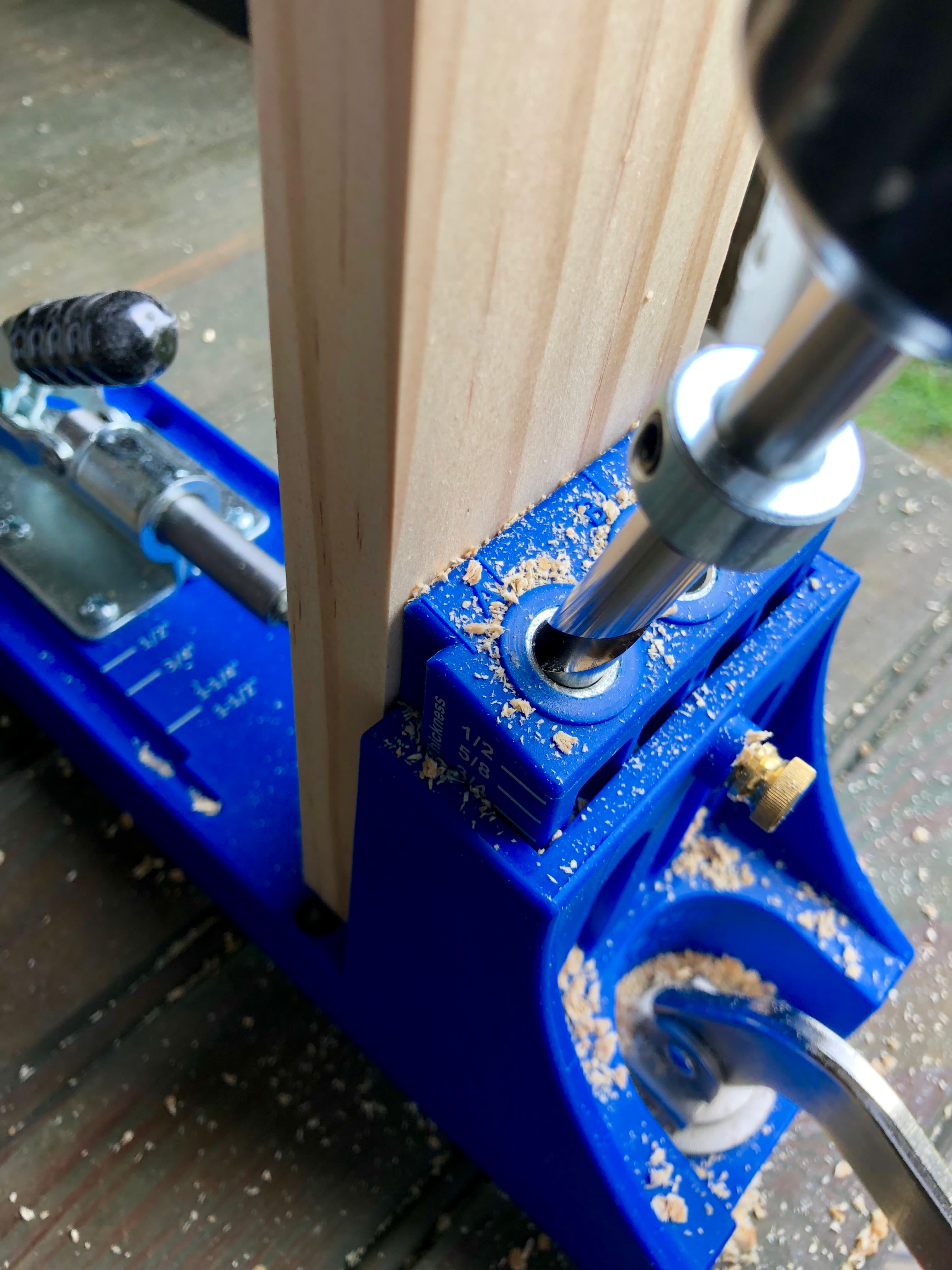

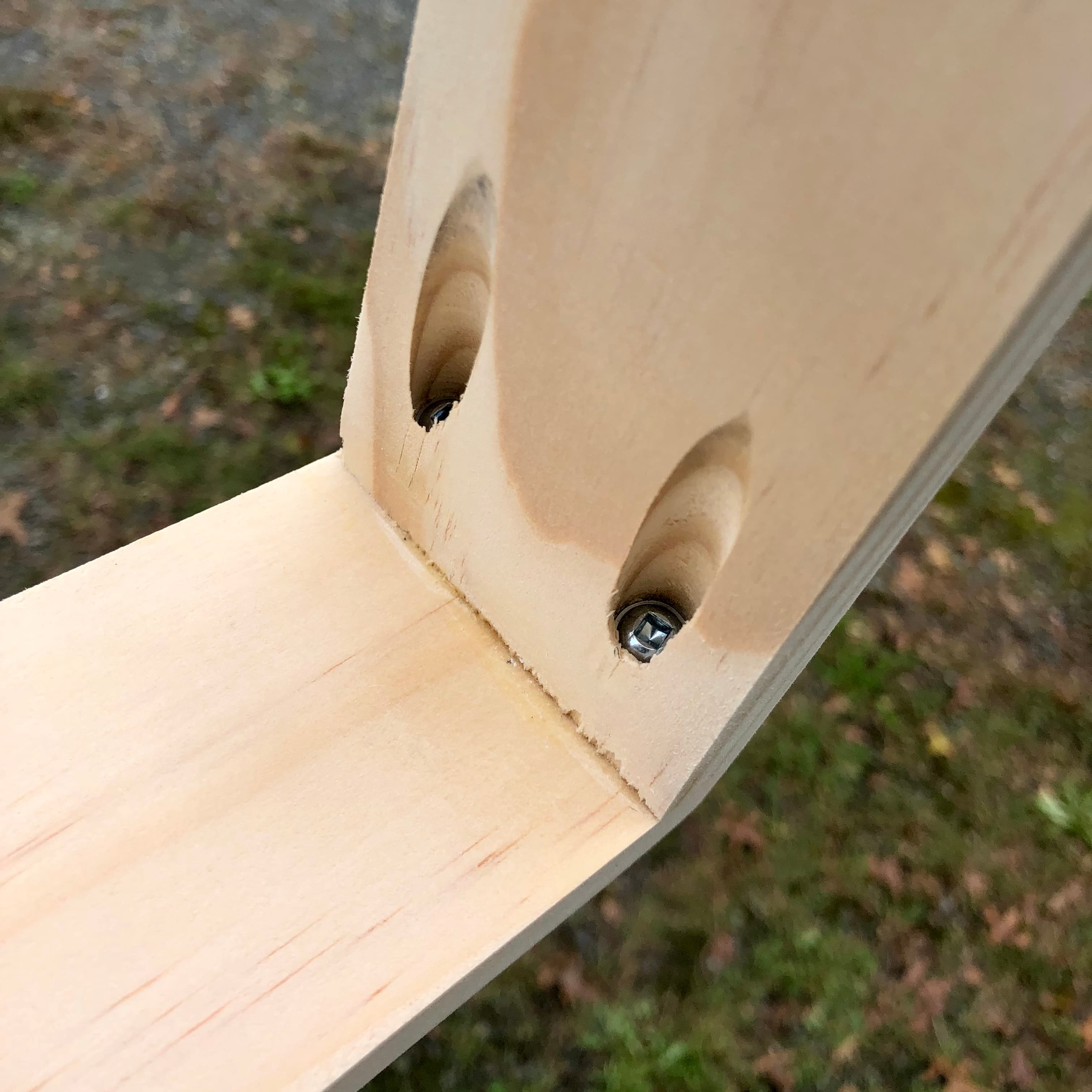

I used a pocket jig and some wood glue to create strong 90 degree joints.

The bottom of the bed frame sits 39.5" above the floor, which should be enough space to store a few mountain bikes.

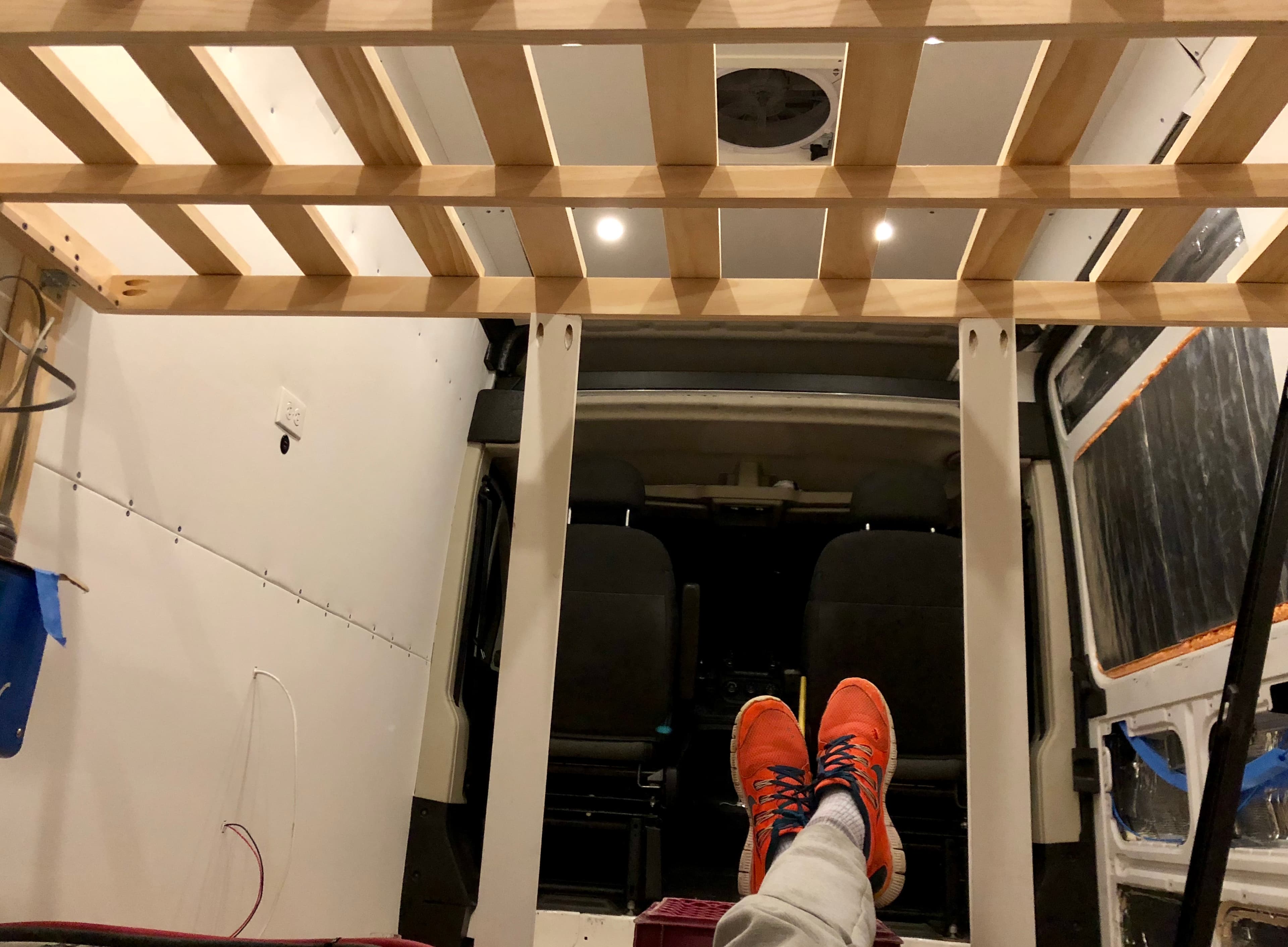

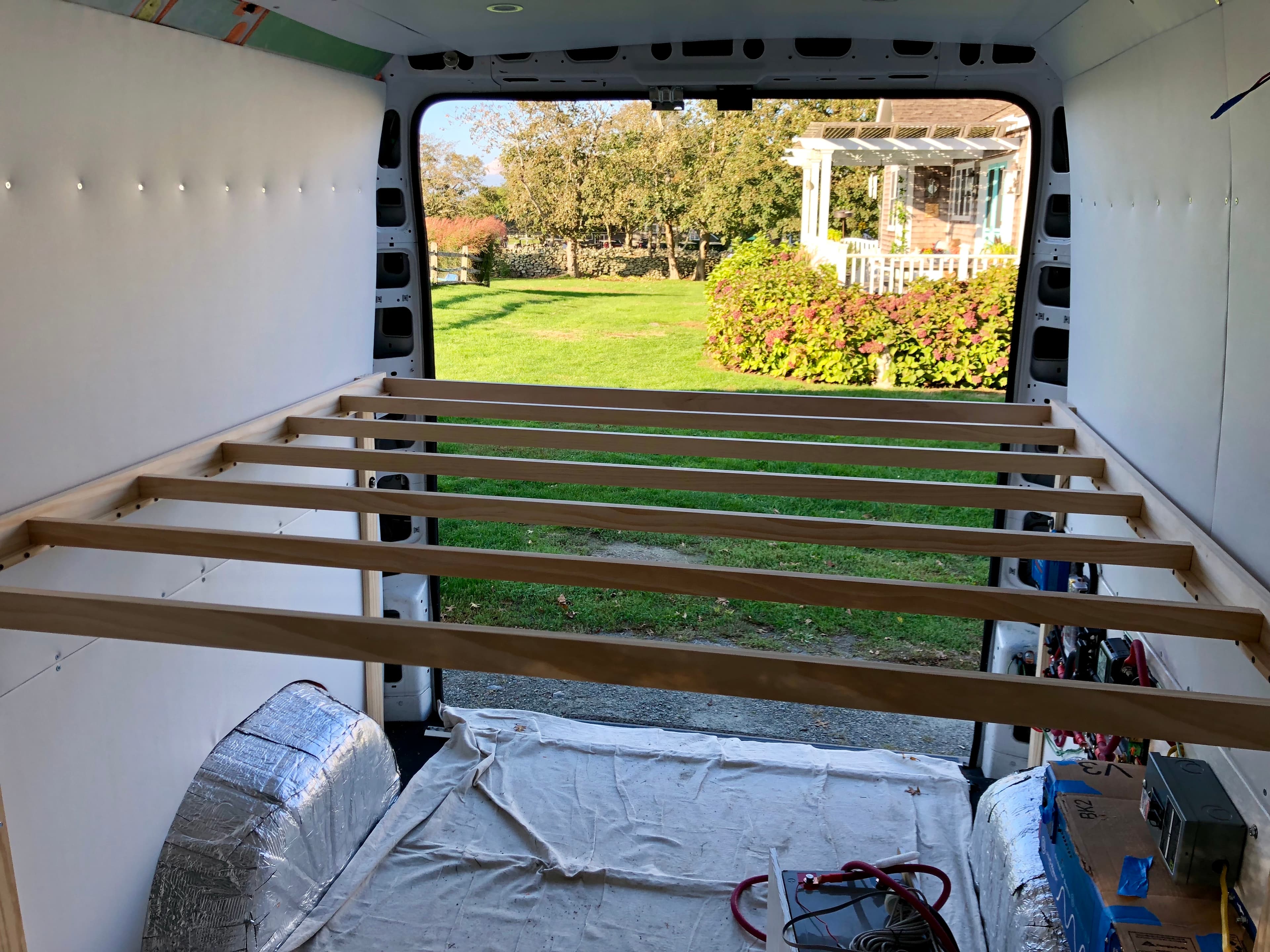

And then I added 62" slats that run perpindicular, which will help with weight distribution. This is what my mattress will sit on.

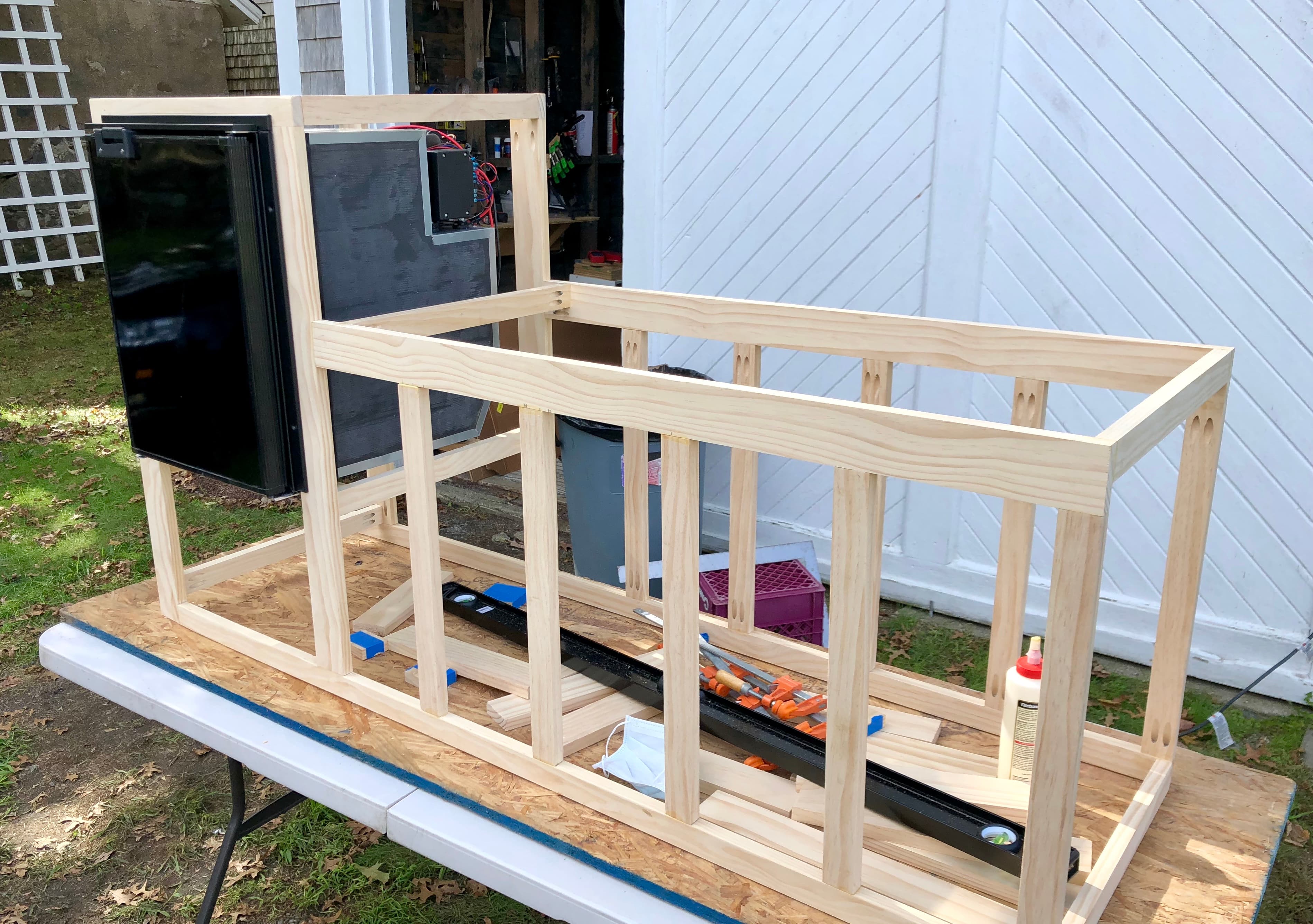

I built the "living room", which consists of one unit that houses both the refridgerator and sofa (see Step 4). On top of the fridge (black box in the top left) will sit a 22x22" countertop, and below it will be a drawer/storage. The sofa/bench is on the right, it's 42" long so it should fit 2 people. The frame is built out of 1" by various sized (either 3 or 4") clear pine boards. Again, I used pocket holes & wood glue to secure everything.

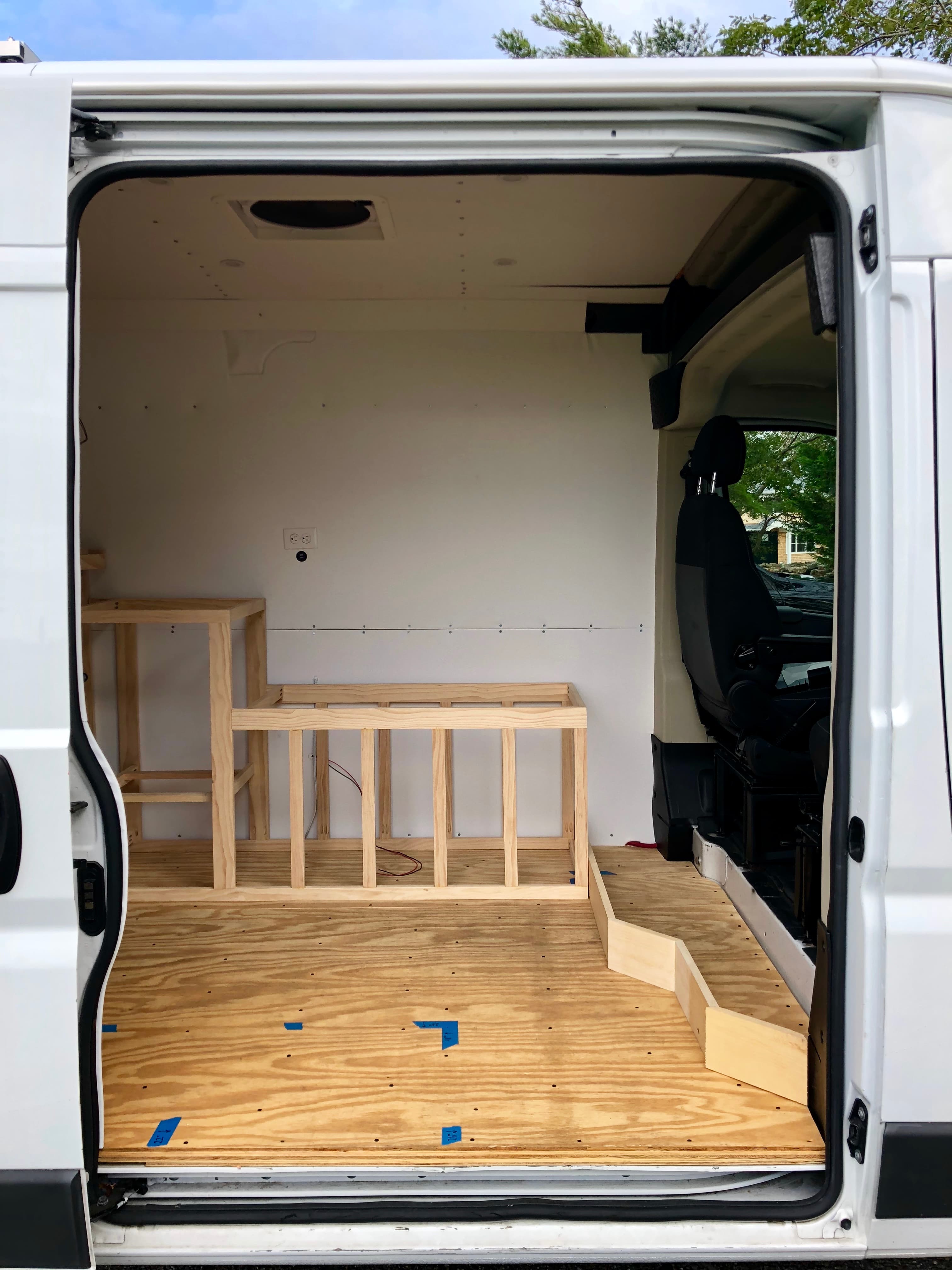

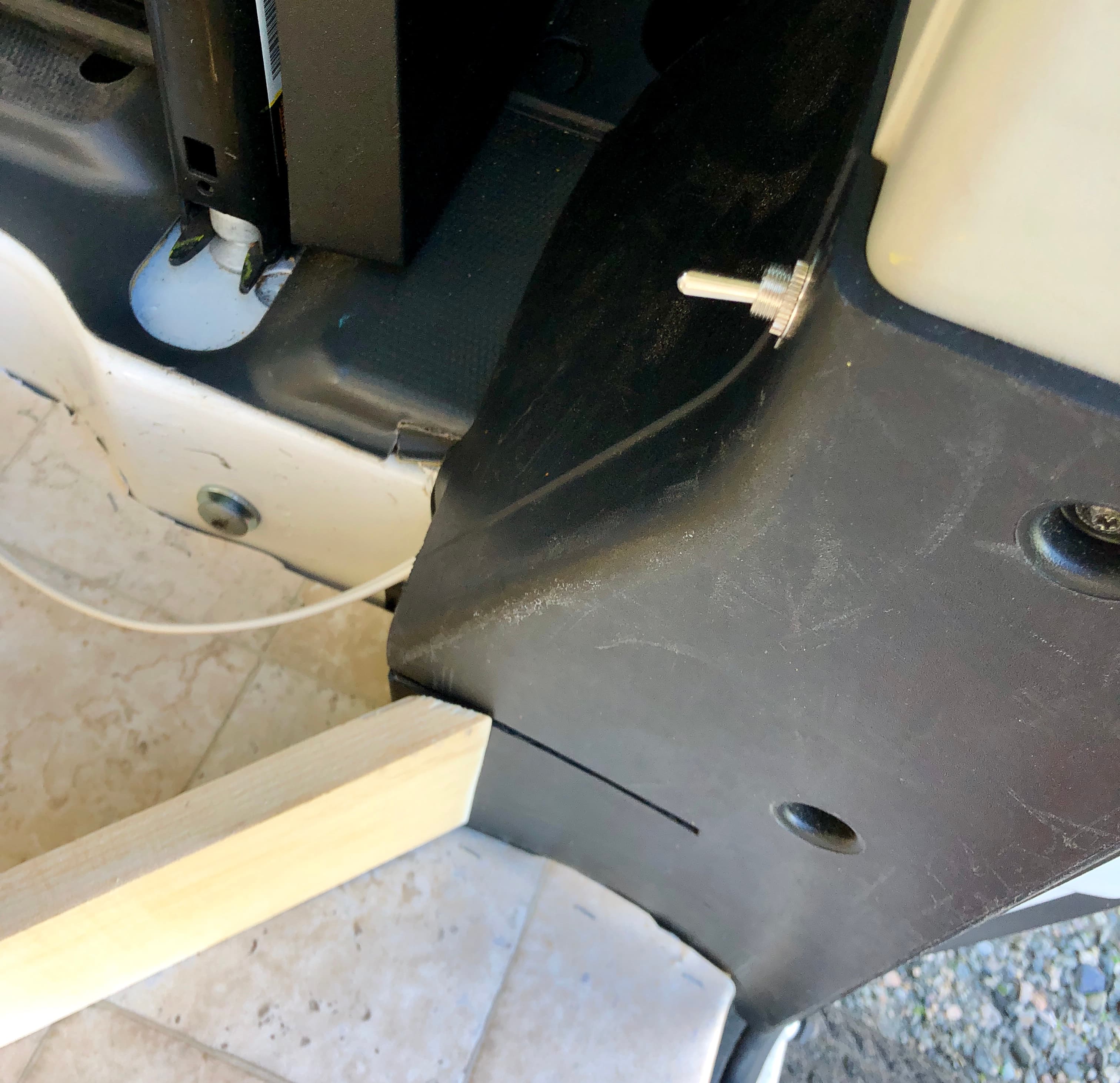

Here you can see where the unit will be installed (after some sanding/priming/painting). I also started working on a 6" step (wood piece to the right of the unit) that will be used when the driver/passenger seats are swiveled around. Under the step will be storage. The driver & passenger seats are 24" off the floor (normal height is around 18"), so without the step your feet dangle in the air, hence why I built the step.

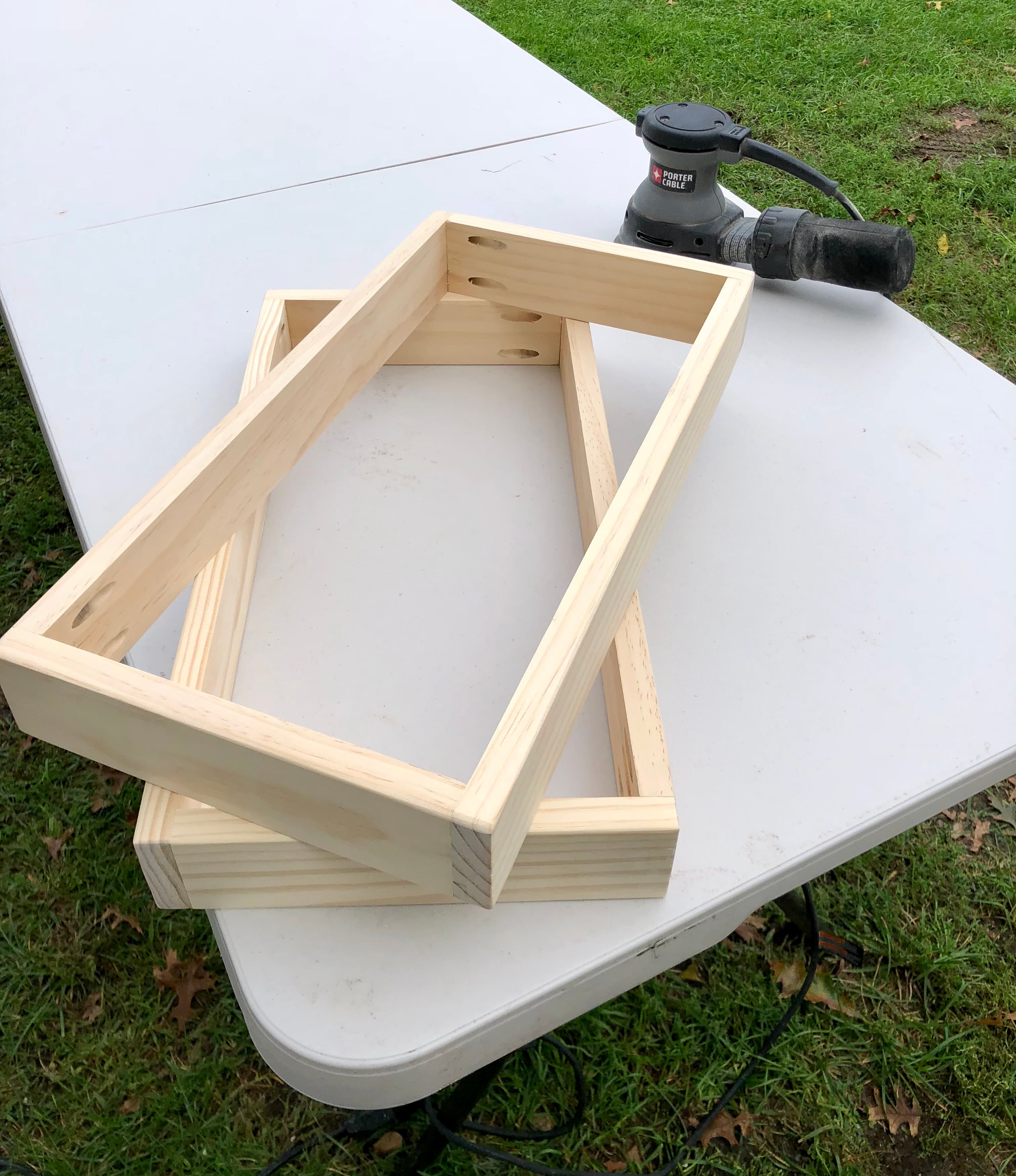

I built boxes for the 2 200Ah NPP batteries that I have. The frames are made out of 1x3" clear pine boards.

Again used pocket joints here. After sanding I will prime and paint them.

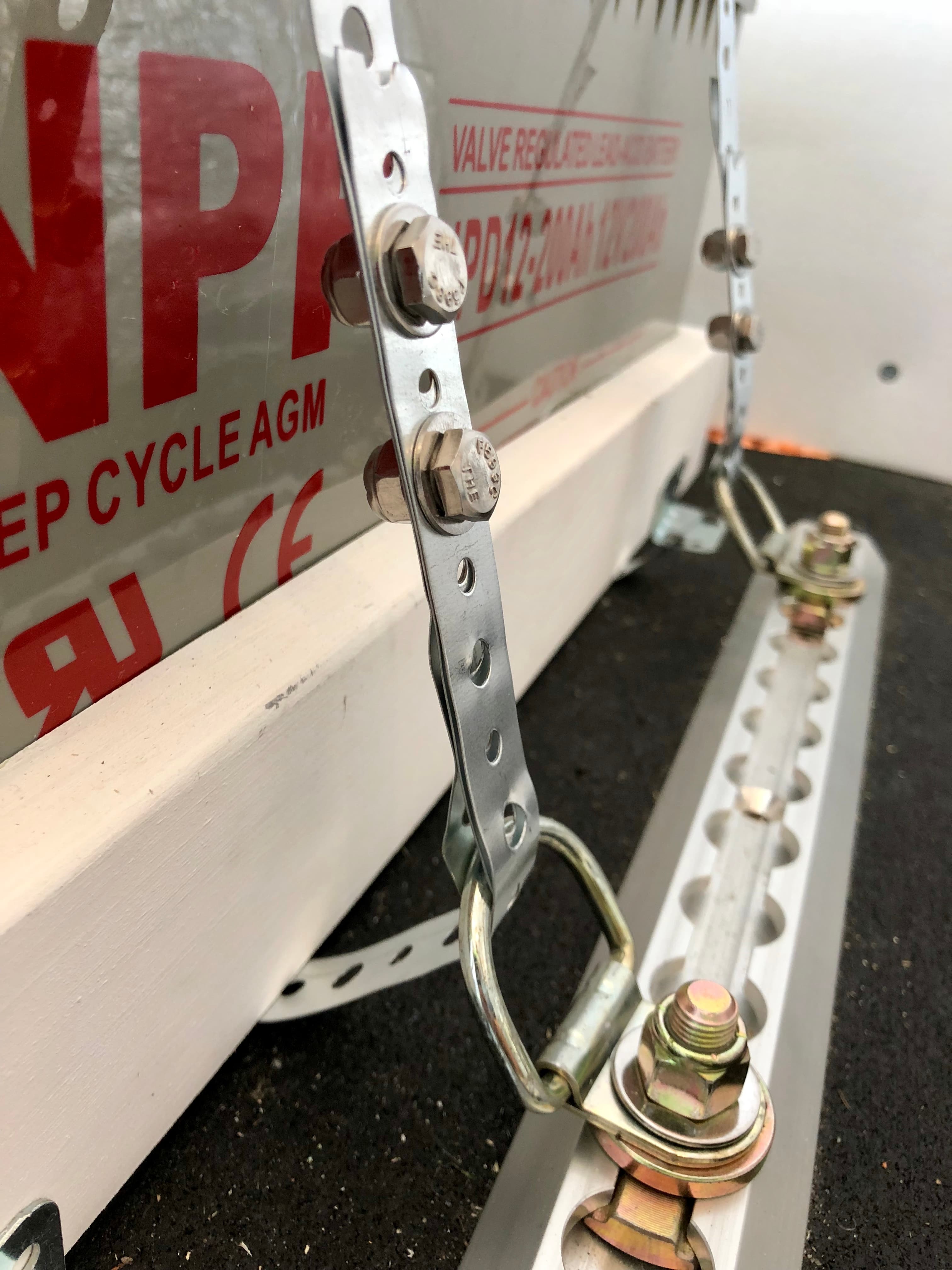

Each battery weights 140lbs, so ensuring they're properly secured (and weight is evenly distributed) is important since I don't want them flying towards me if I were to break suddenly. I used steel hanger iron and stainless steel bolts to make straps, and wrapped 2 around each battery. I attached the straps to the L-track using stainless D-rings and double lug L-track fittings.

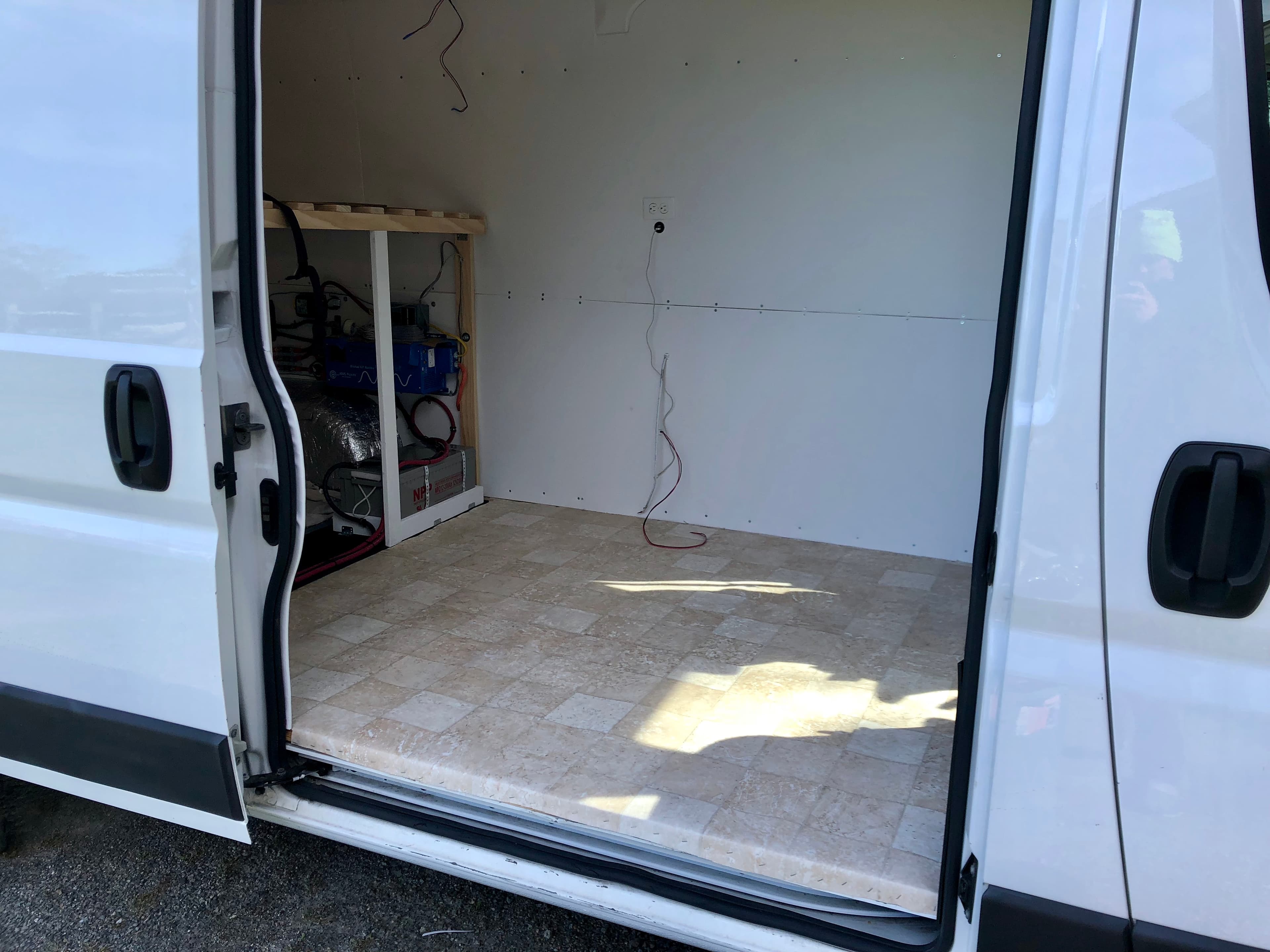

I wanted a waterproof layer between the sub floor and the floor people will see/walk on, so I found a piece of vinyl in the remnants section at Lowes for $20 and cut it so size. I don't like the looks of it but that's fine since nobody will see it.

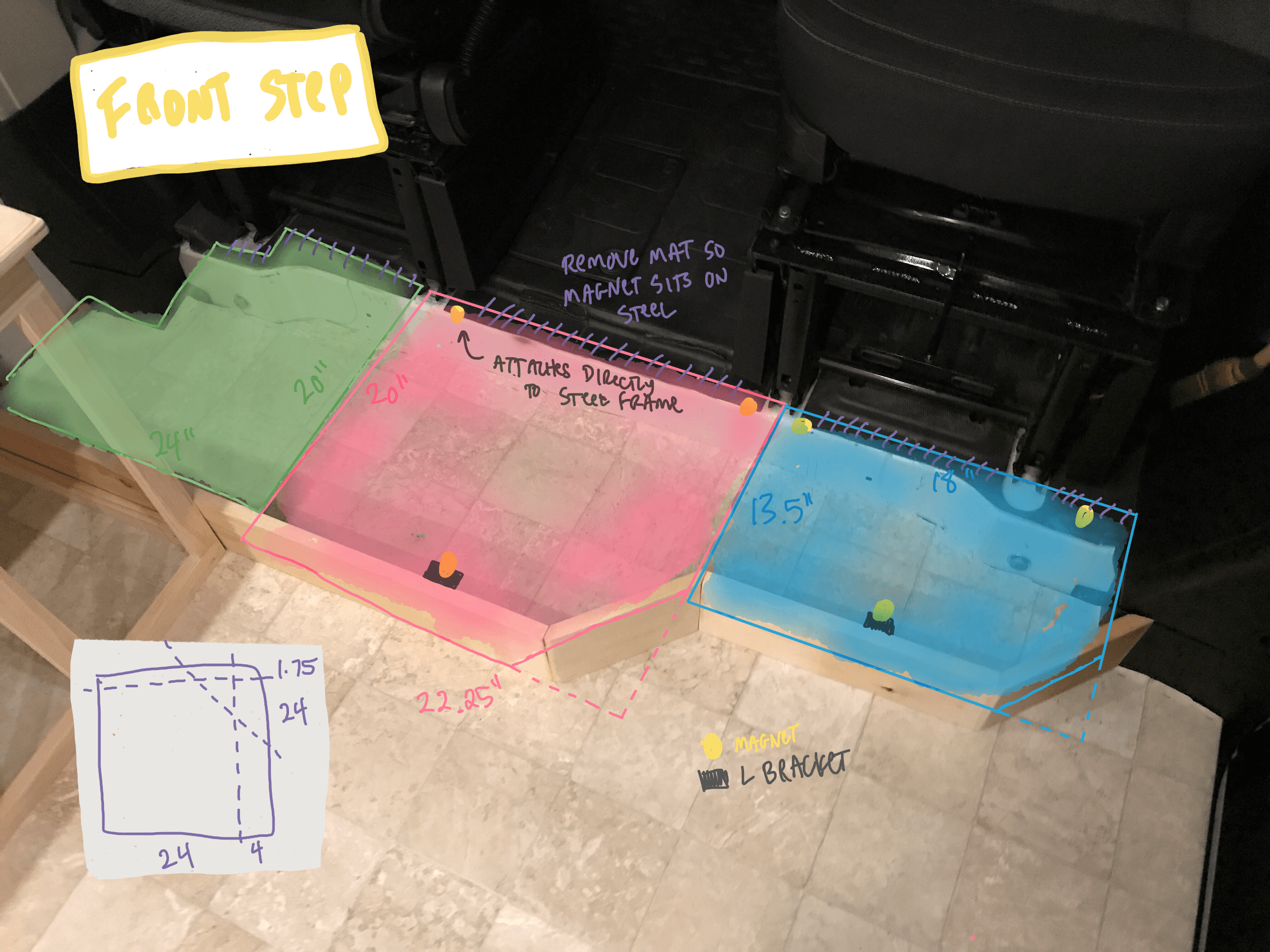

Determined the dimensions and then used a nice 3/4" plywood to build the 3 tops of the 6" step.

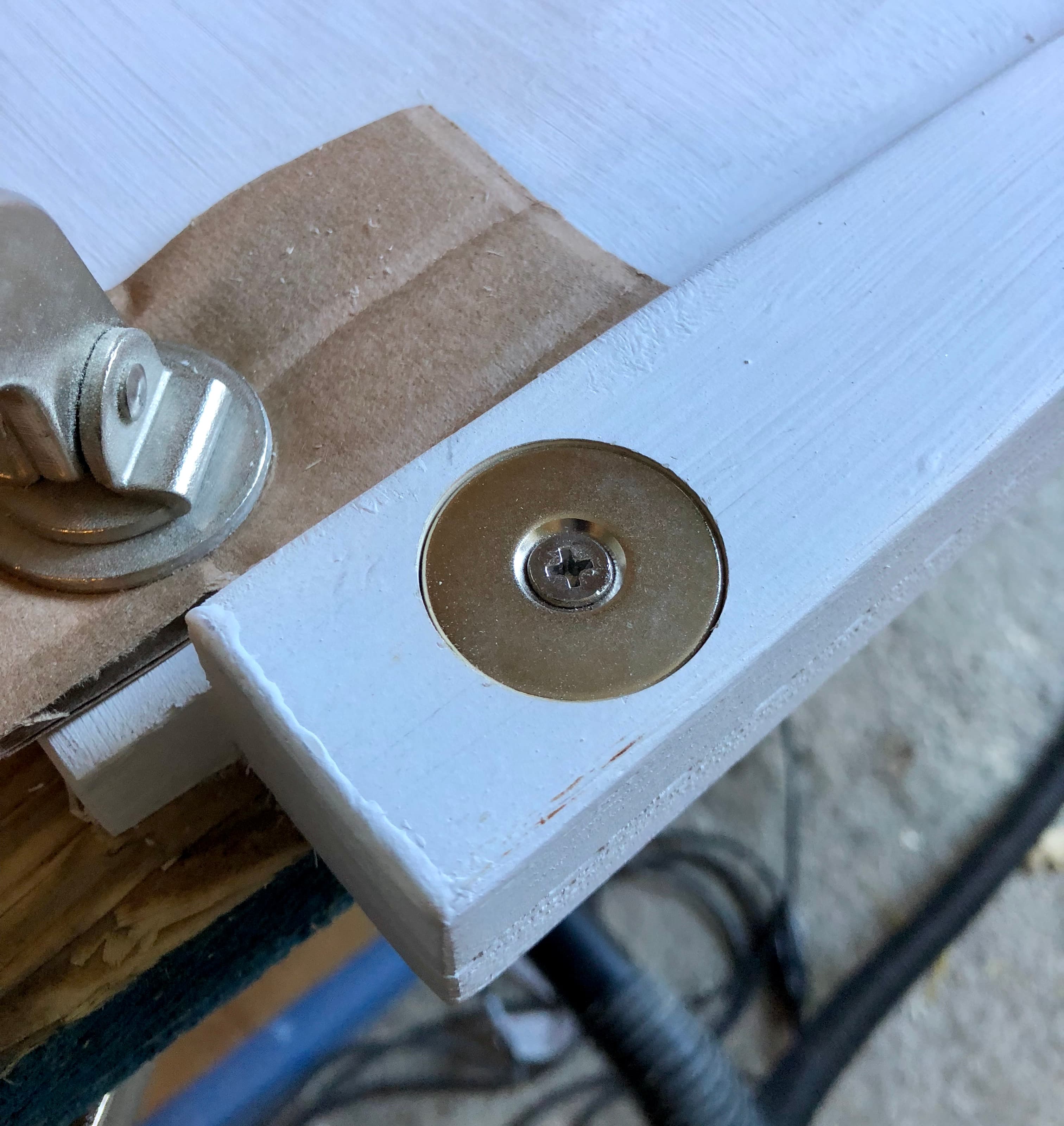

I used a Forstner bit to countersink neodymium magnets, which will keep the panels from moving around while driving.

The main light switch is above the kitchen counter, so I installed a small switch that's accessible without needing to step into the van. I will run LEDs along the step & and bench (floor lights) so that you can see where you're walking without needing to turn the ceiling lights on.

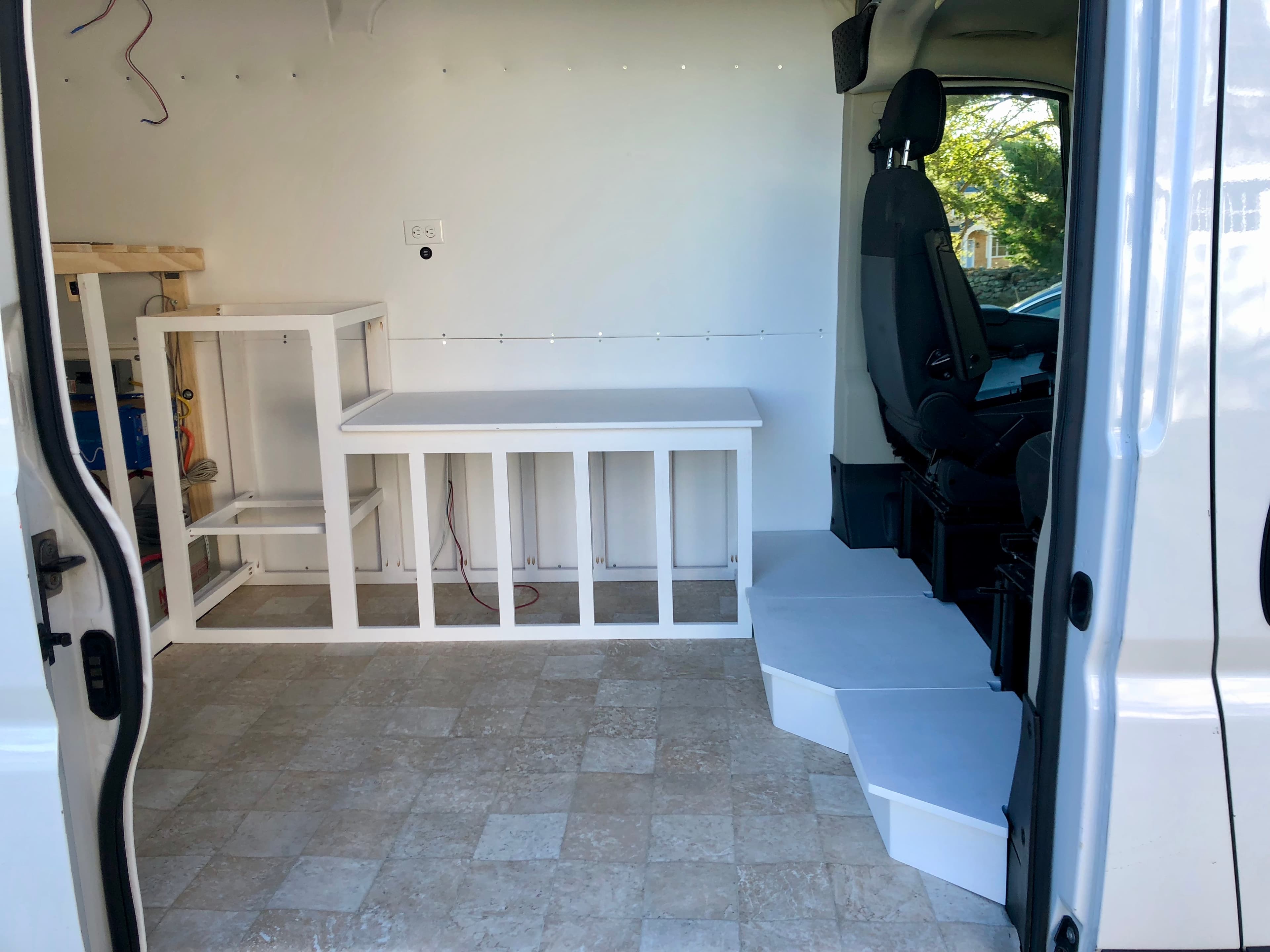

Here is what the step and living room unit look like after being primed. I also installed those same magnets on the underside of the bench seat.

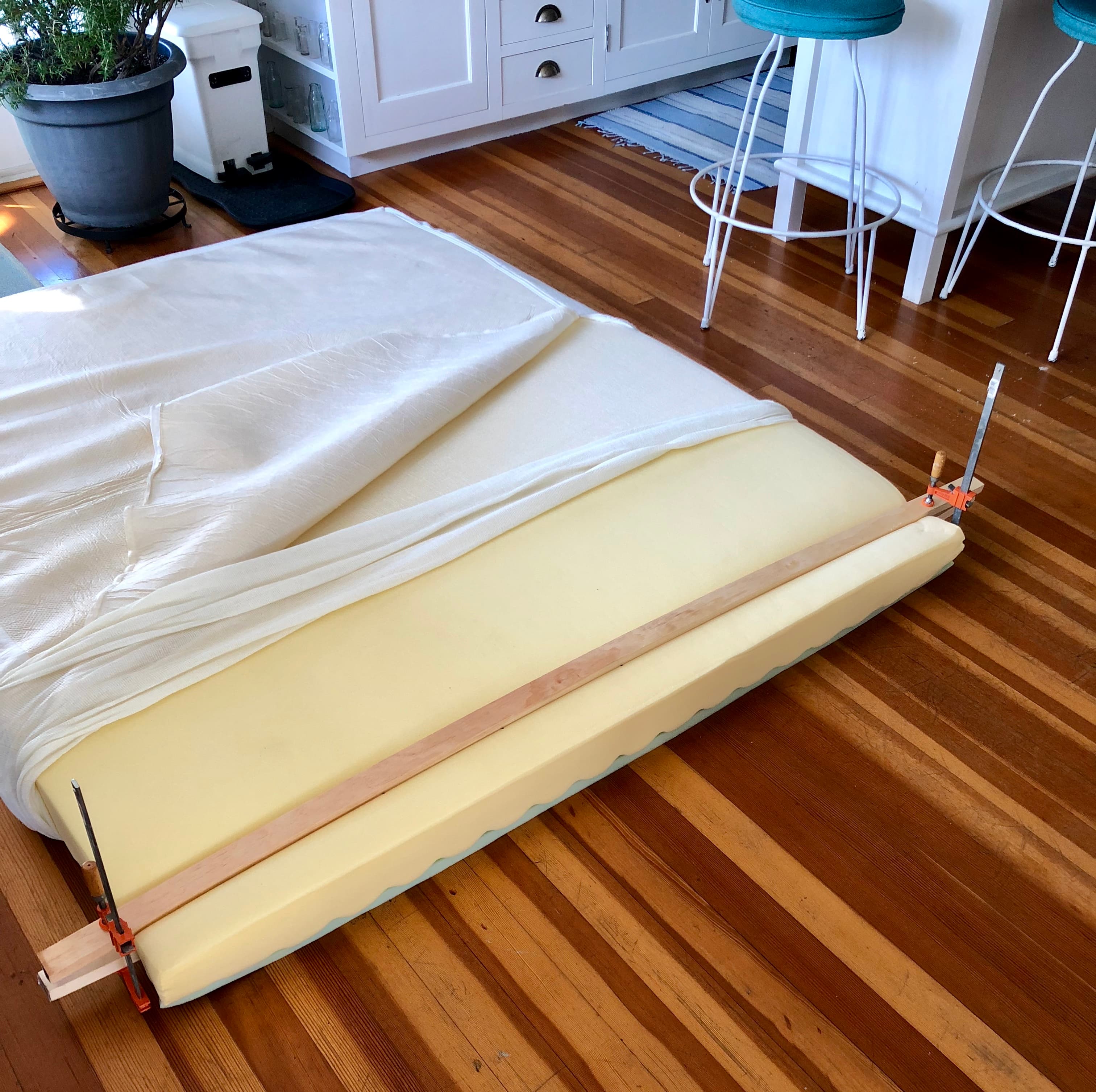

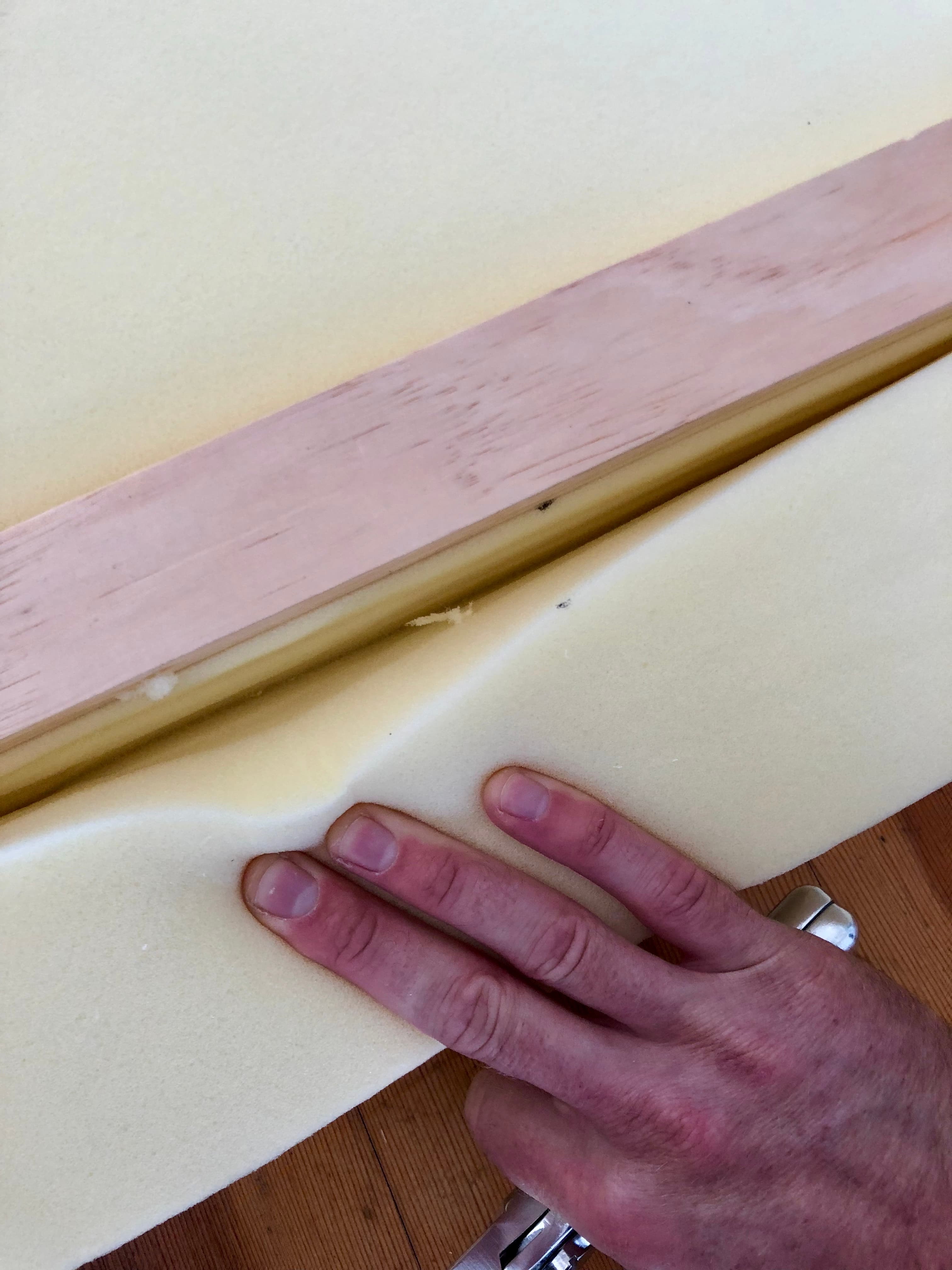

The memory foam mattress I bought was a few inches too long, so I used 2 boards and wood clamps to pinch the foam before slicing it. I used a carpet knife to cut the mattress, which worked well.

I bought some faux teak decking for the floor - this will be what you see & walk on. It's soft and lightweight, and feels nice on the feet. I installed some of this along the 6" step, so that it will match the floor. And then I added a strip of LEDs, which will act as running/floor lights.

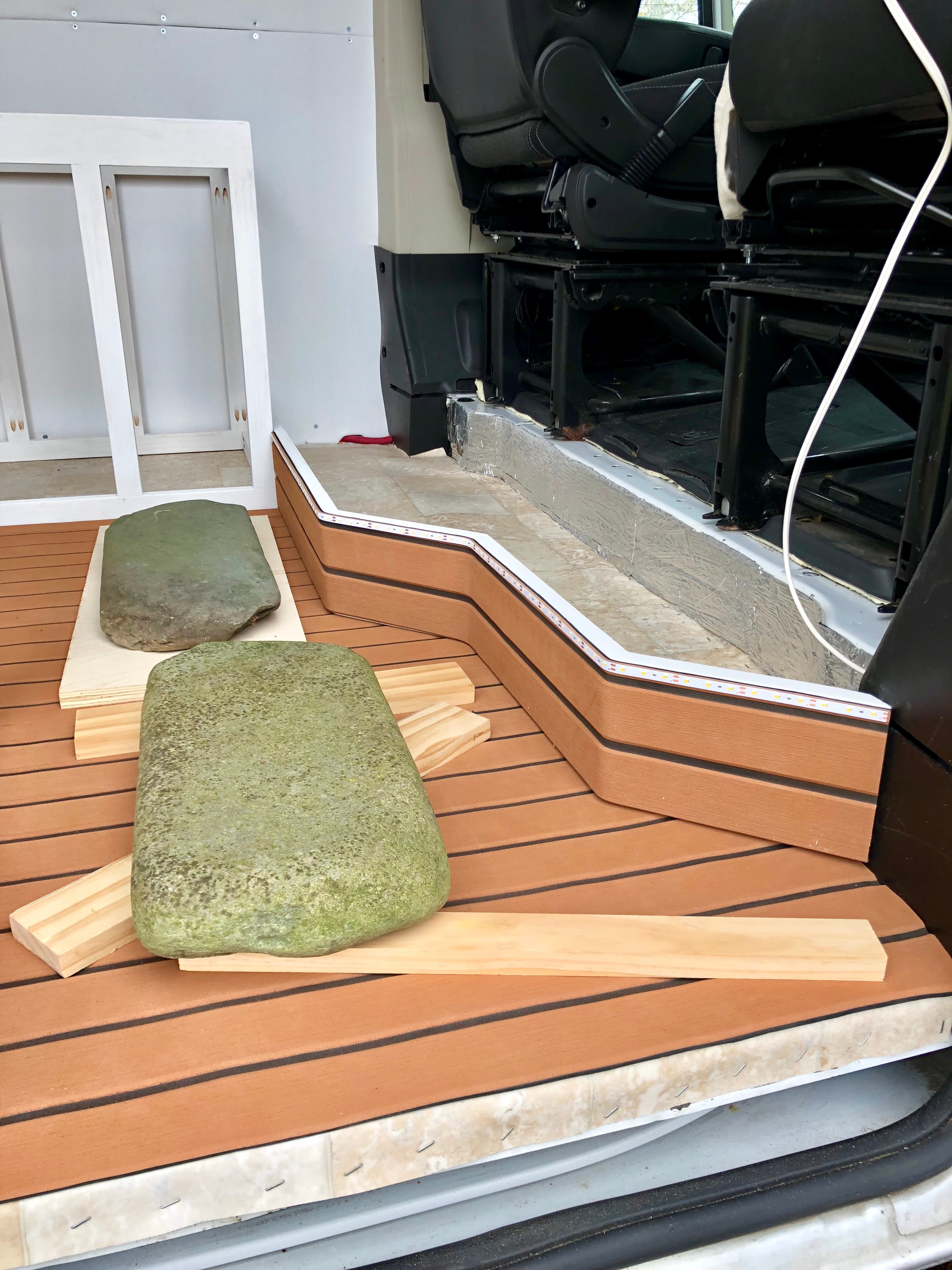

I then installed the teak foam floor, using heavy rocks while the adhesive dried. This foam runs down the middle of the interior, only where people will stand/walk (not under the cabinets).

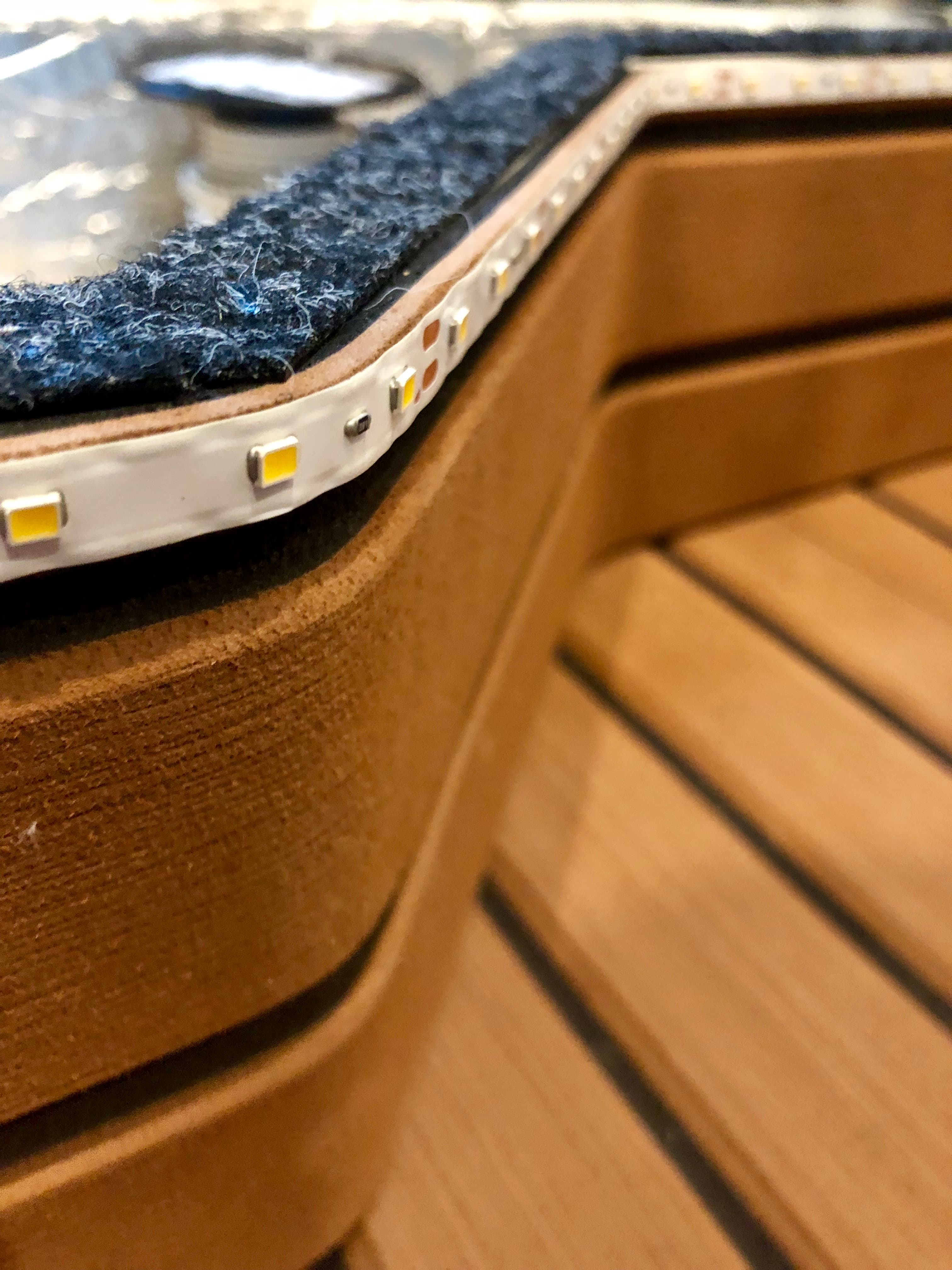

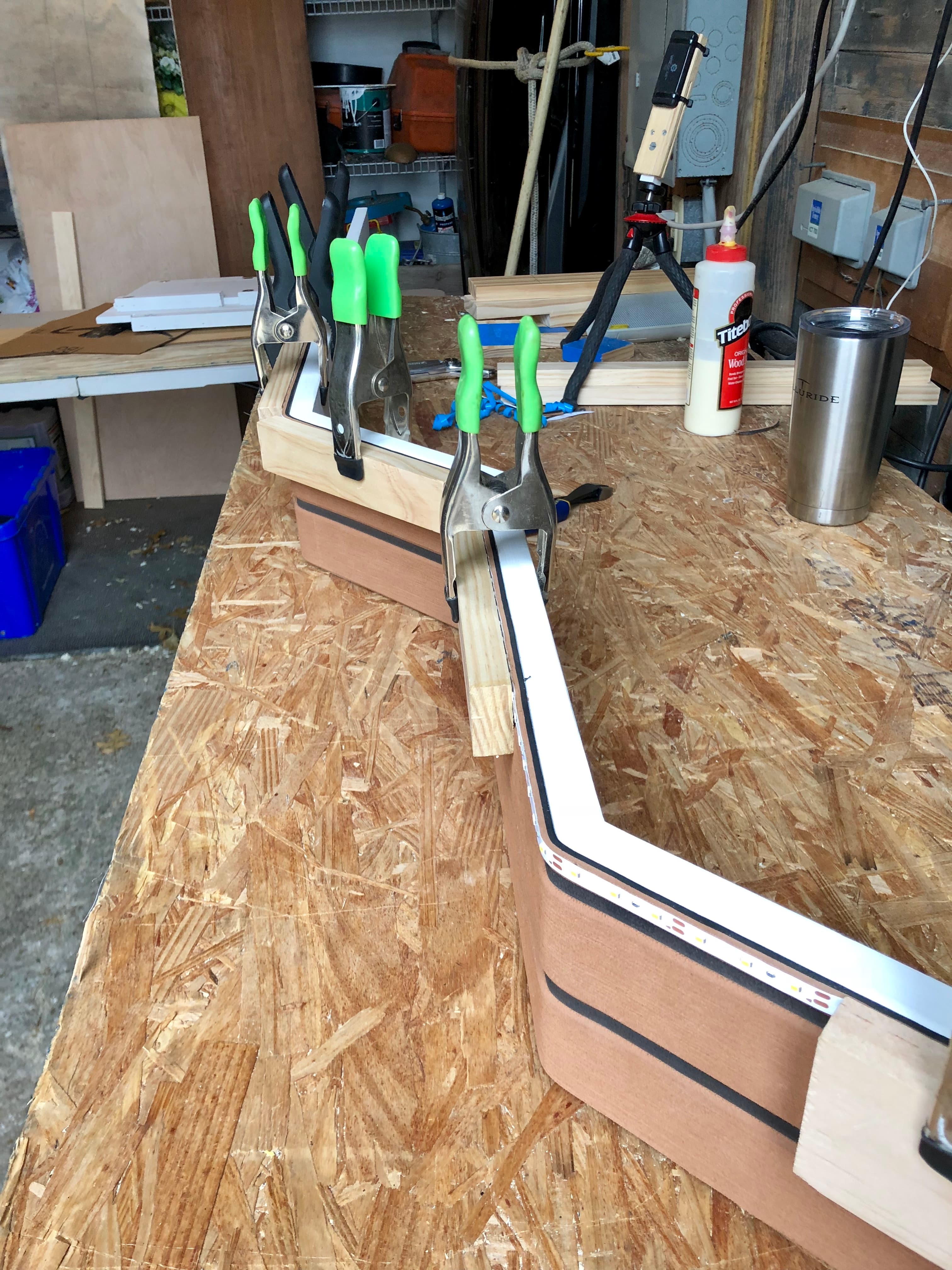

The finished step. I put some extra, thin carpet I had on the top to prevent rattling while driving. Here you can clearly see the LED strip.

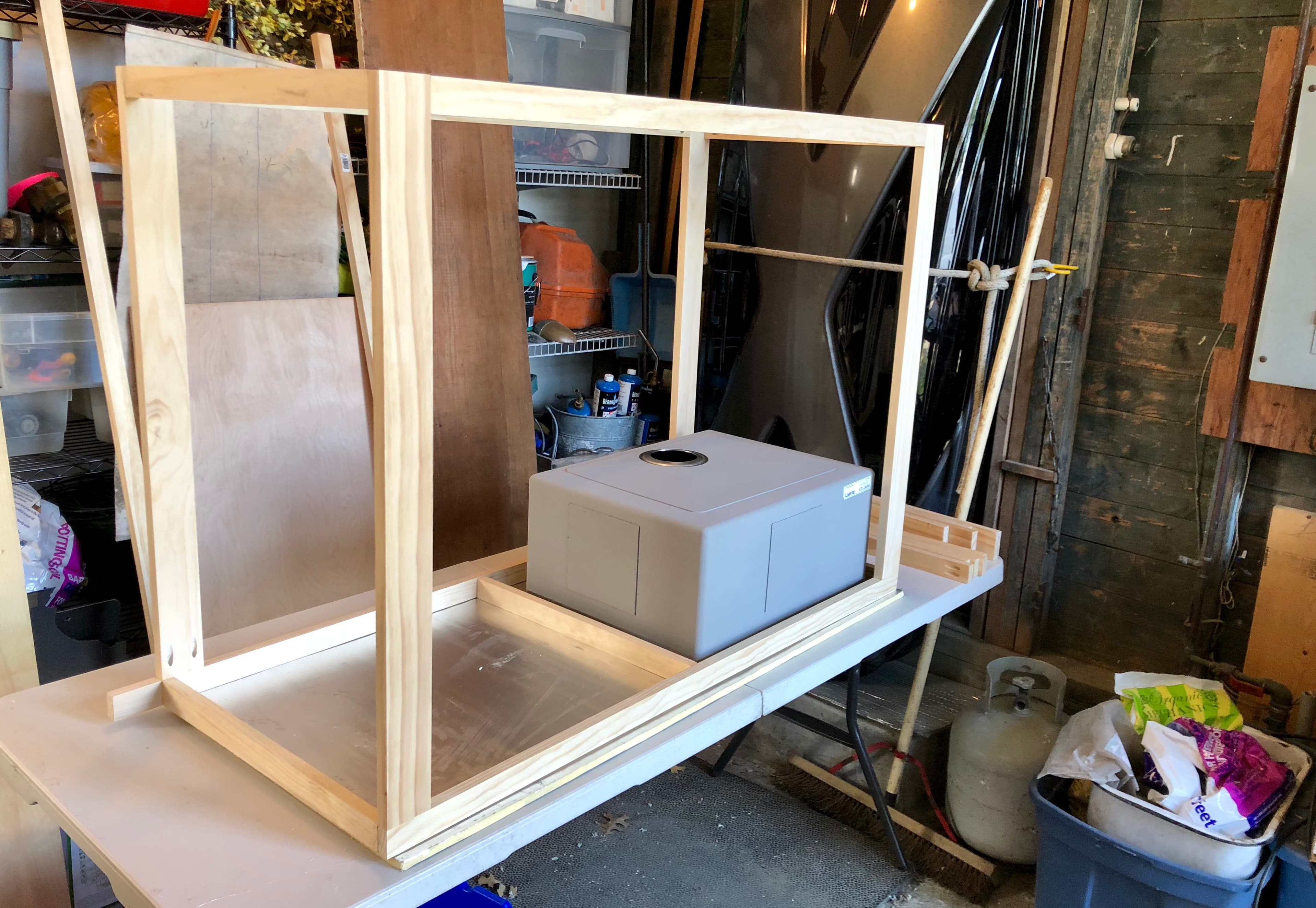

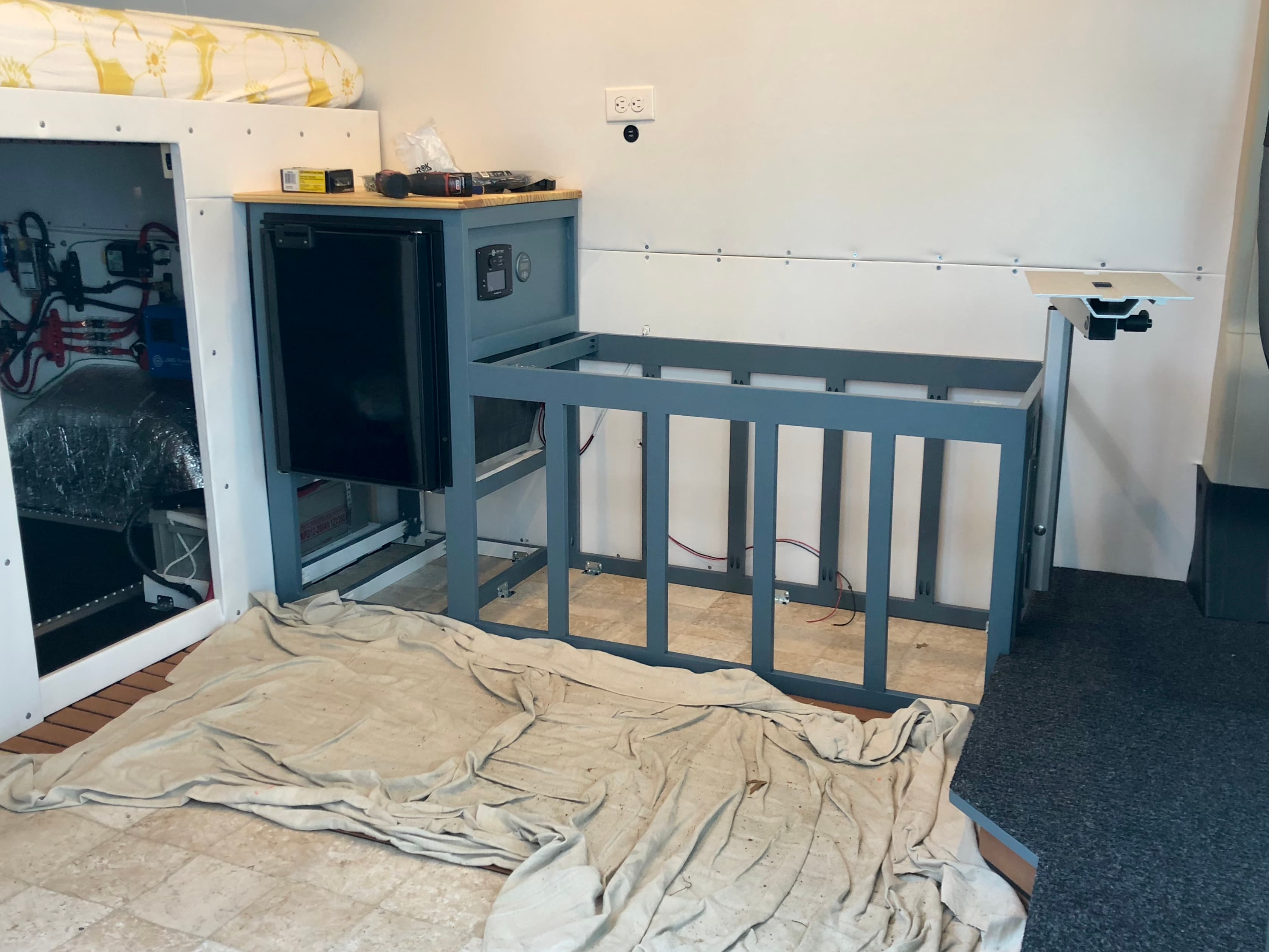

I built the frame for the kitchen unit. This unit will sit behind the passenger seat. It will connect to the bed frame and extend forward 48". It blocks part of the sliding door opening, but there's still plenty of room to get in/out of the van. In the picture above, the unit is upside down - I'm measuring where the sink will be placed and where supports will be installed.

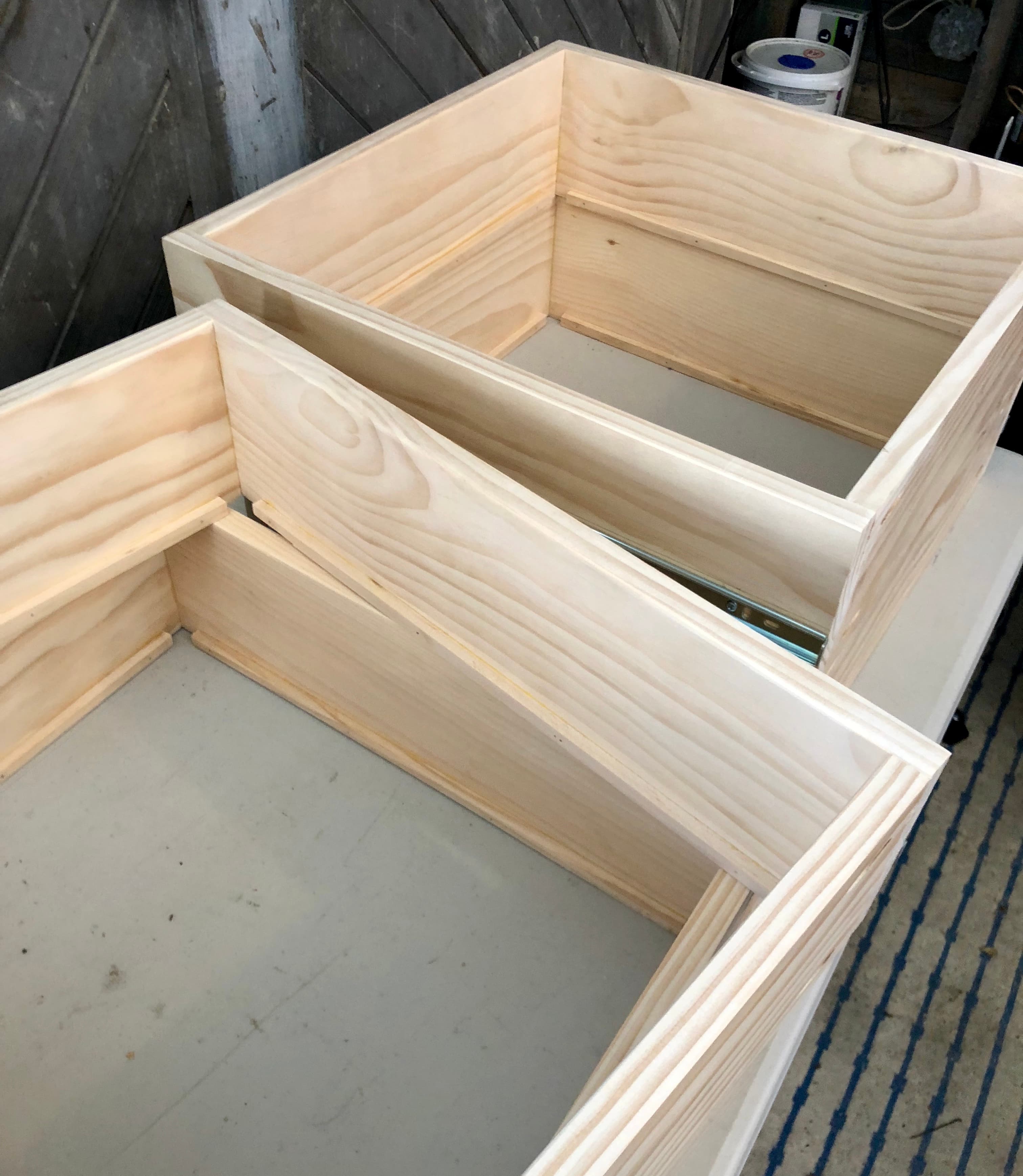

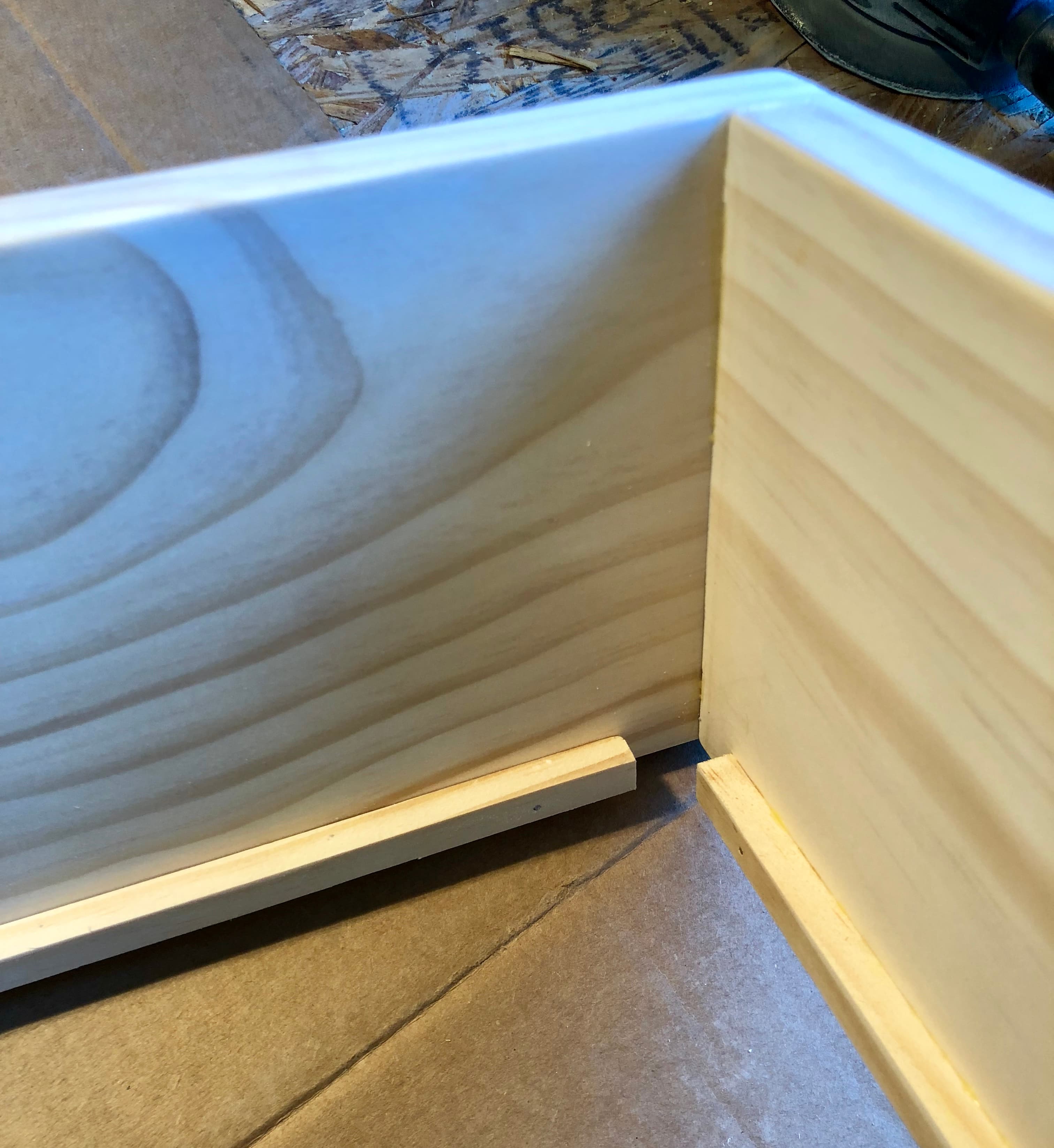

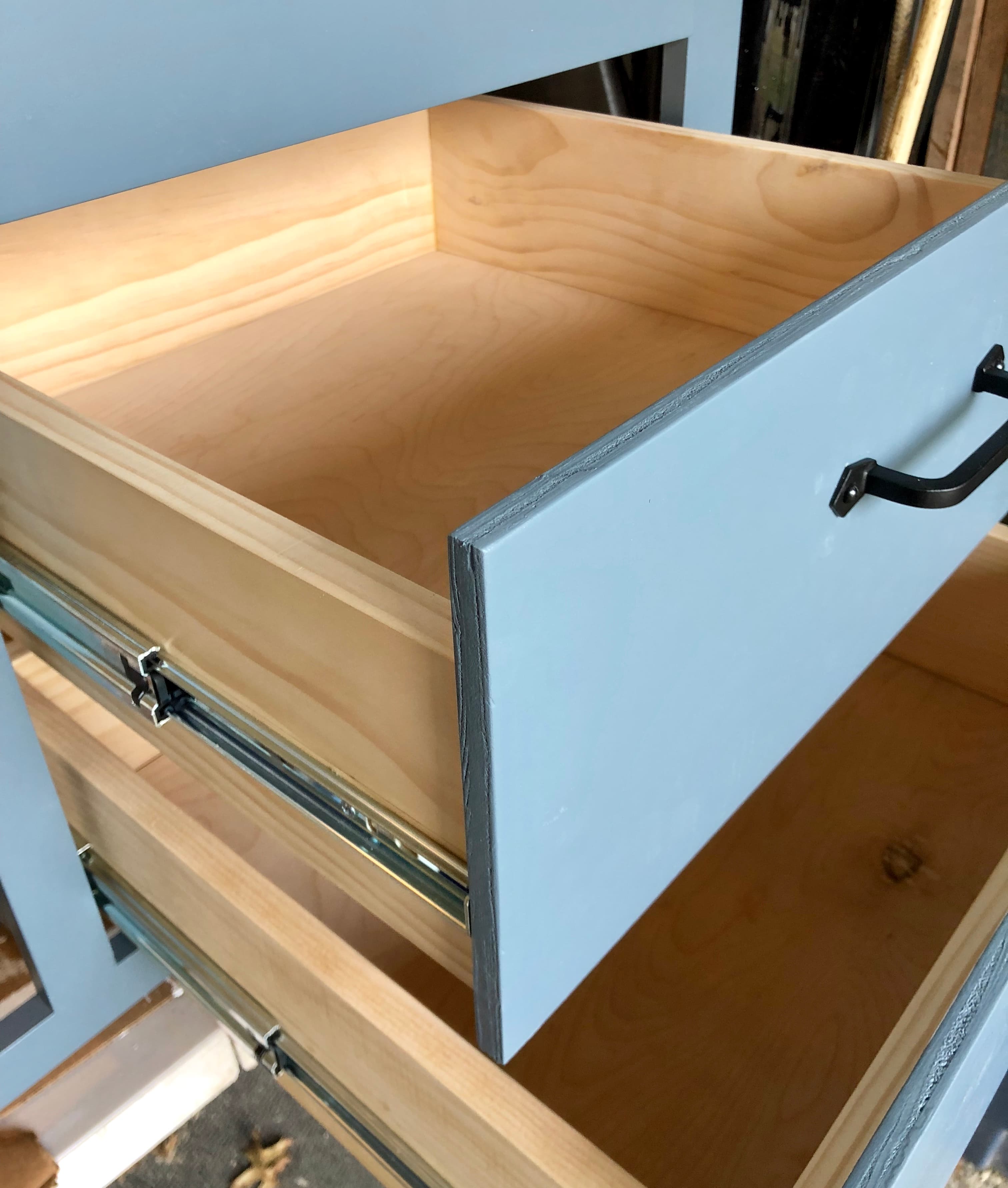

There are 4 kitchen drawers. I installed a small strip along the bottom edge, which will hold the base of the drawer in place. I then lined the top of the wood strip with silicone, which will keep rattling to a minimum I hope.

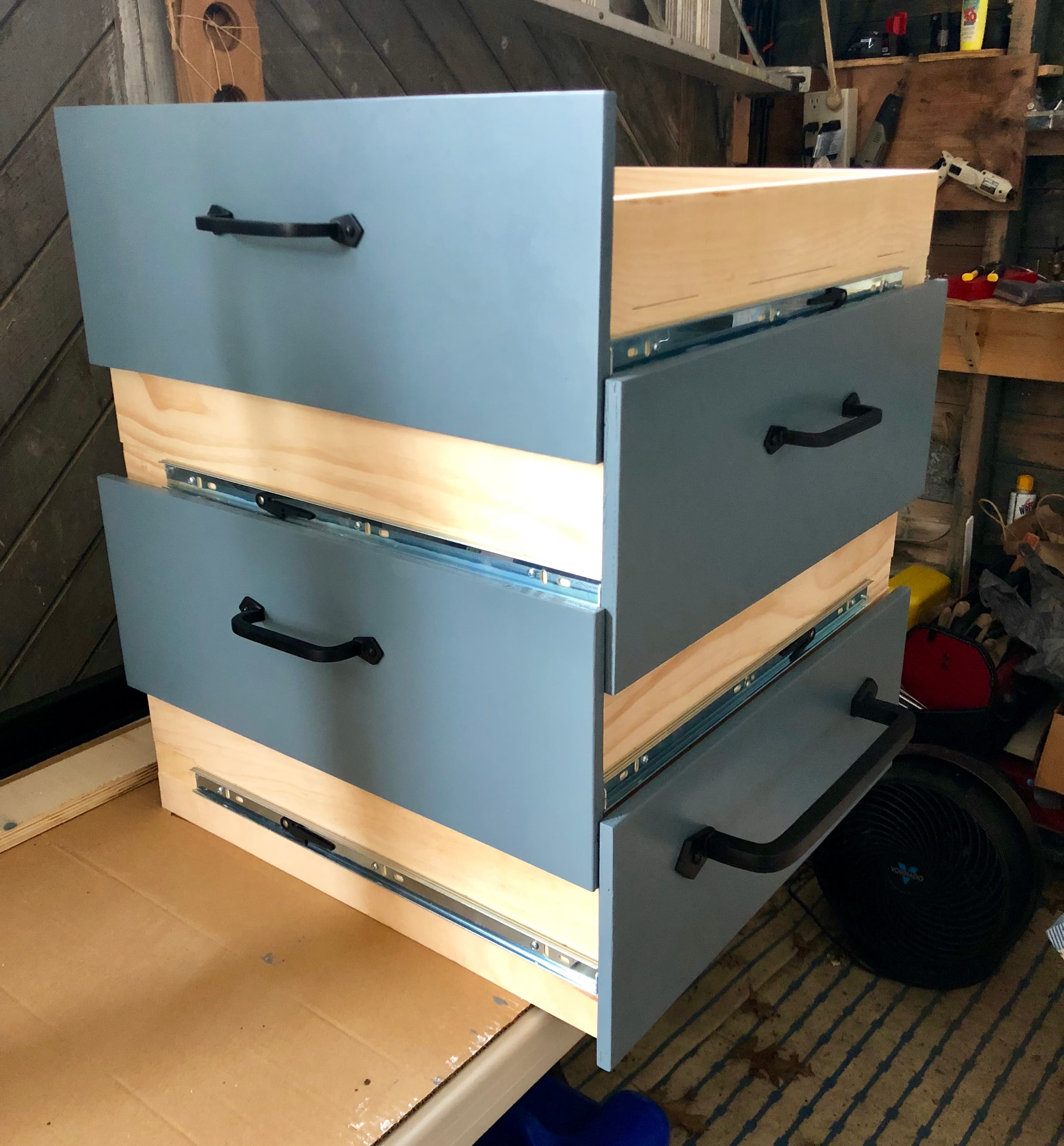

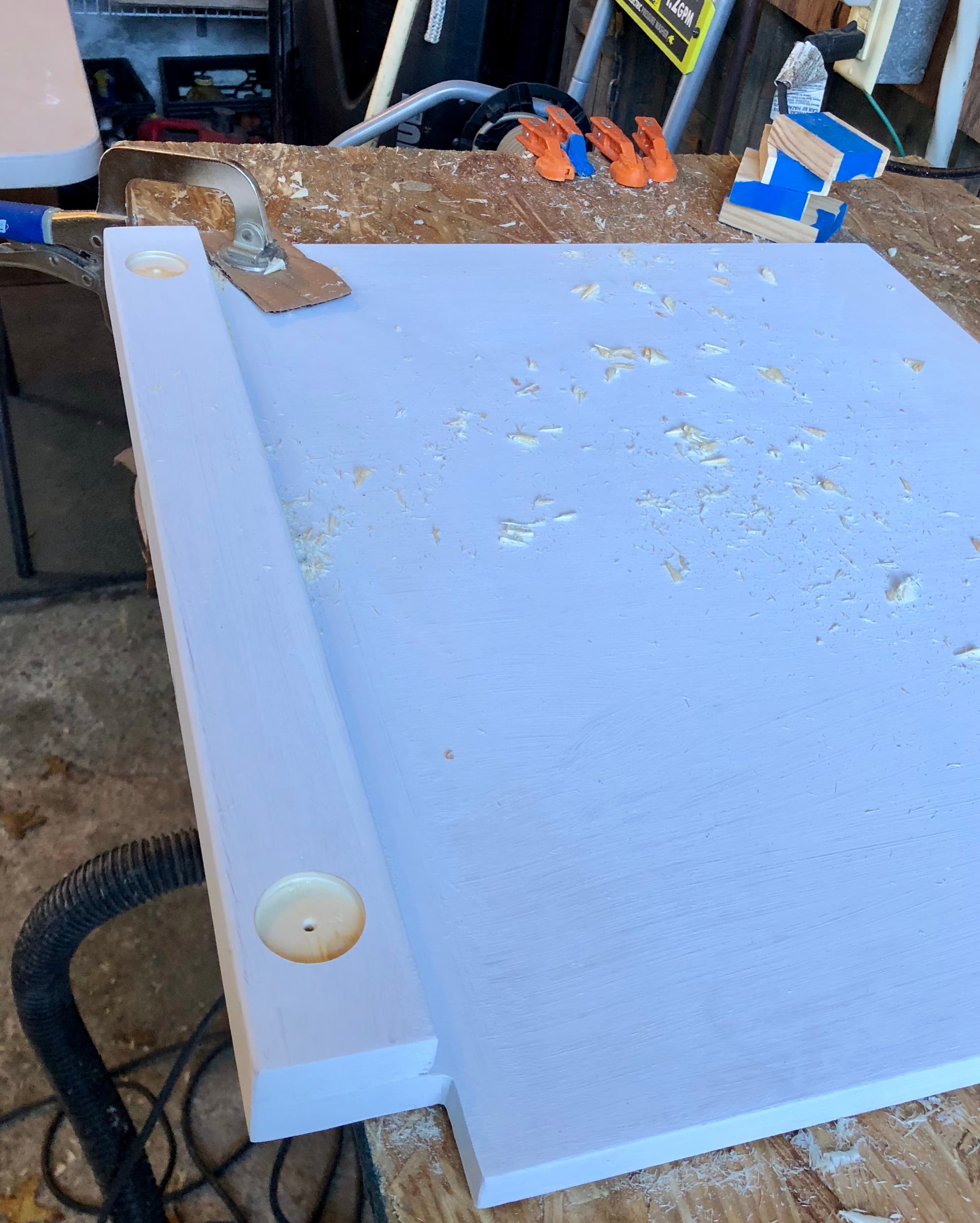

Primed, painted, and finished kitchen drawers. One handle (bottom right) is wider than the others—this will be the top drawer and that handle will act as a towel rack.

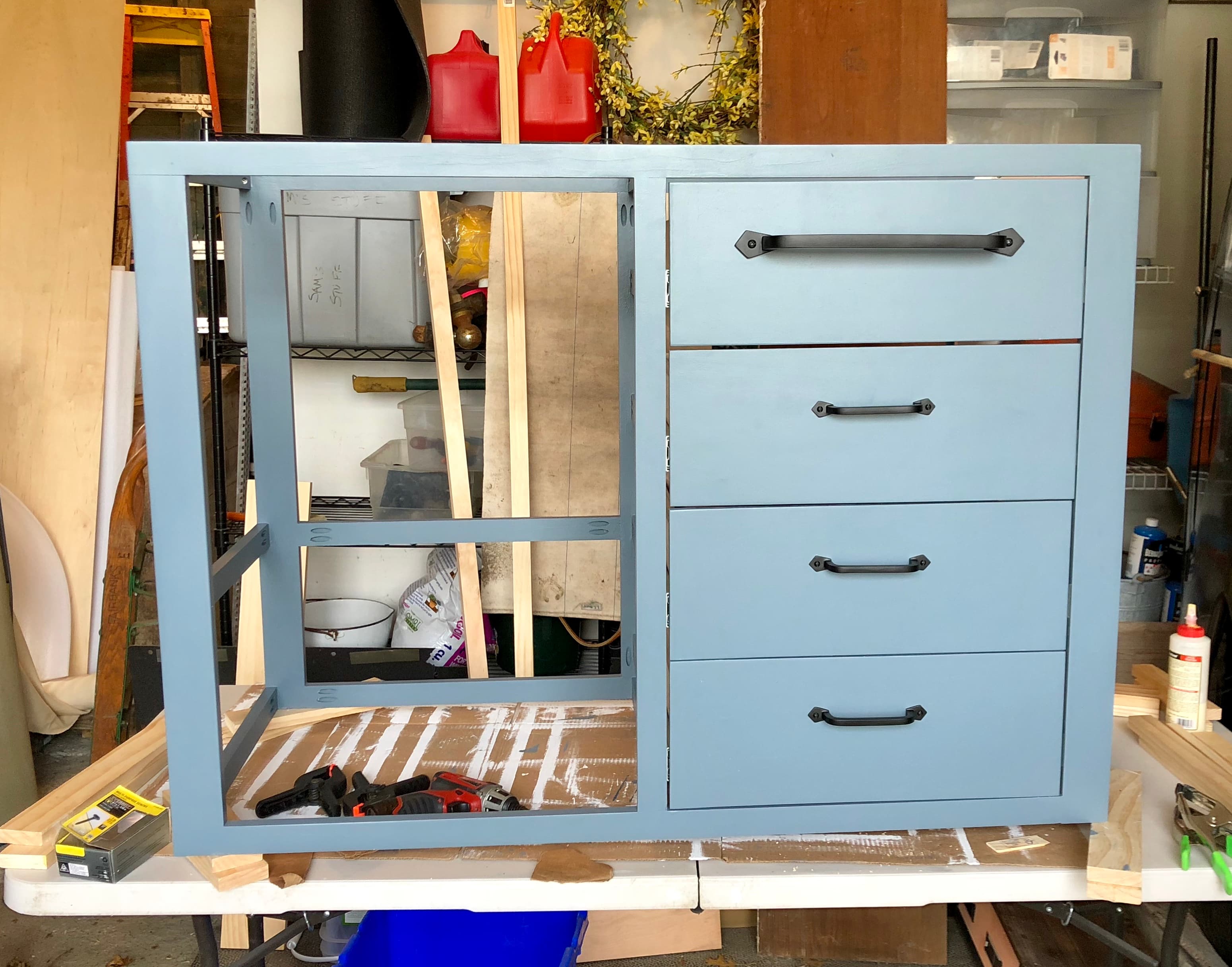

Kitchen unit - primed, painted, and drawers installed. The unit is 36x48". The top will be a counter, with the sink and stove inset.

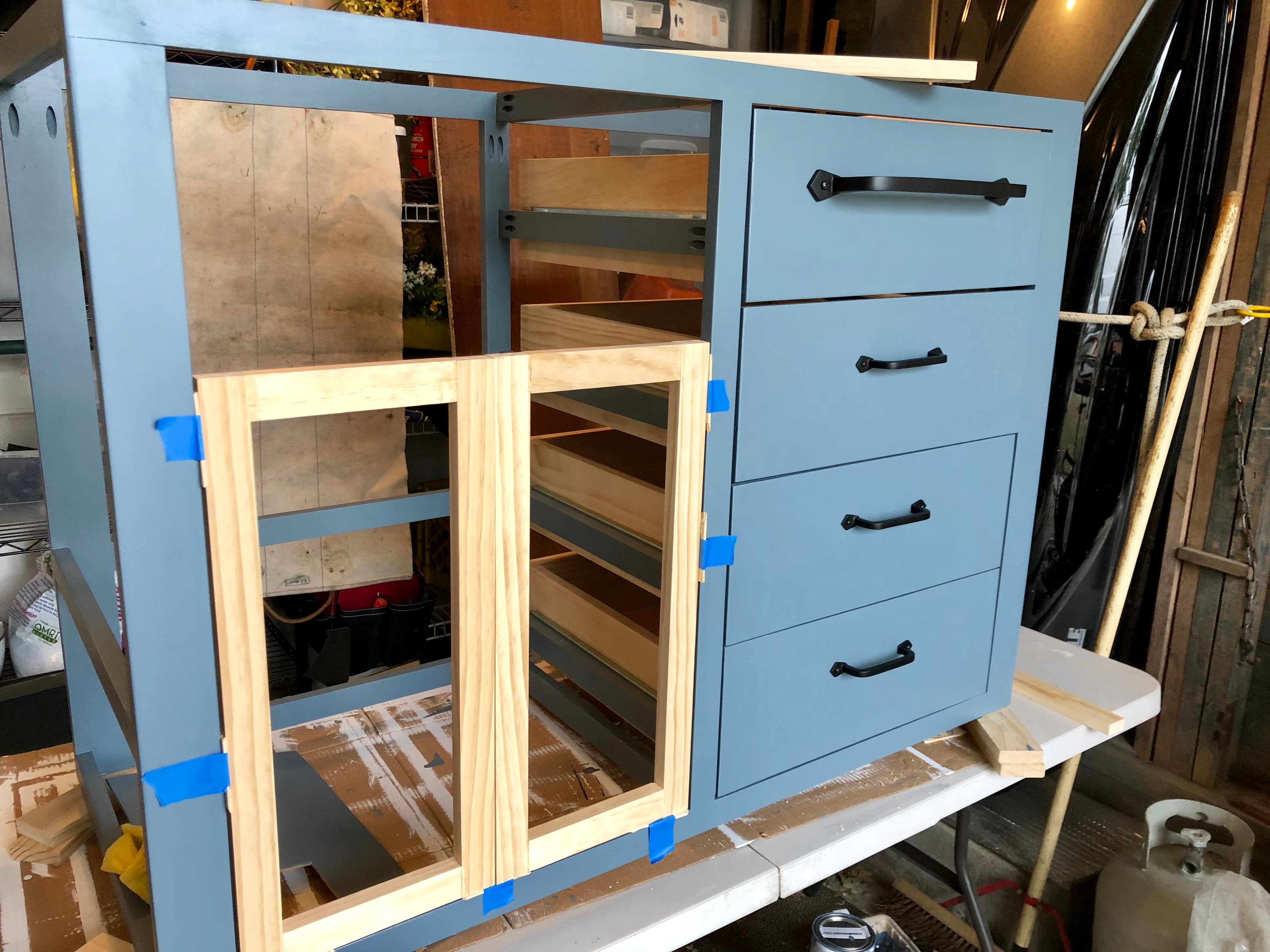

Measuring the doors for the cabinet below the sink. This will house the grey water tank, trash/recycling/compost, fire extinguisher, cleaning supplies, etc.

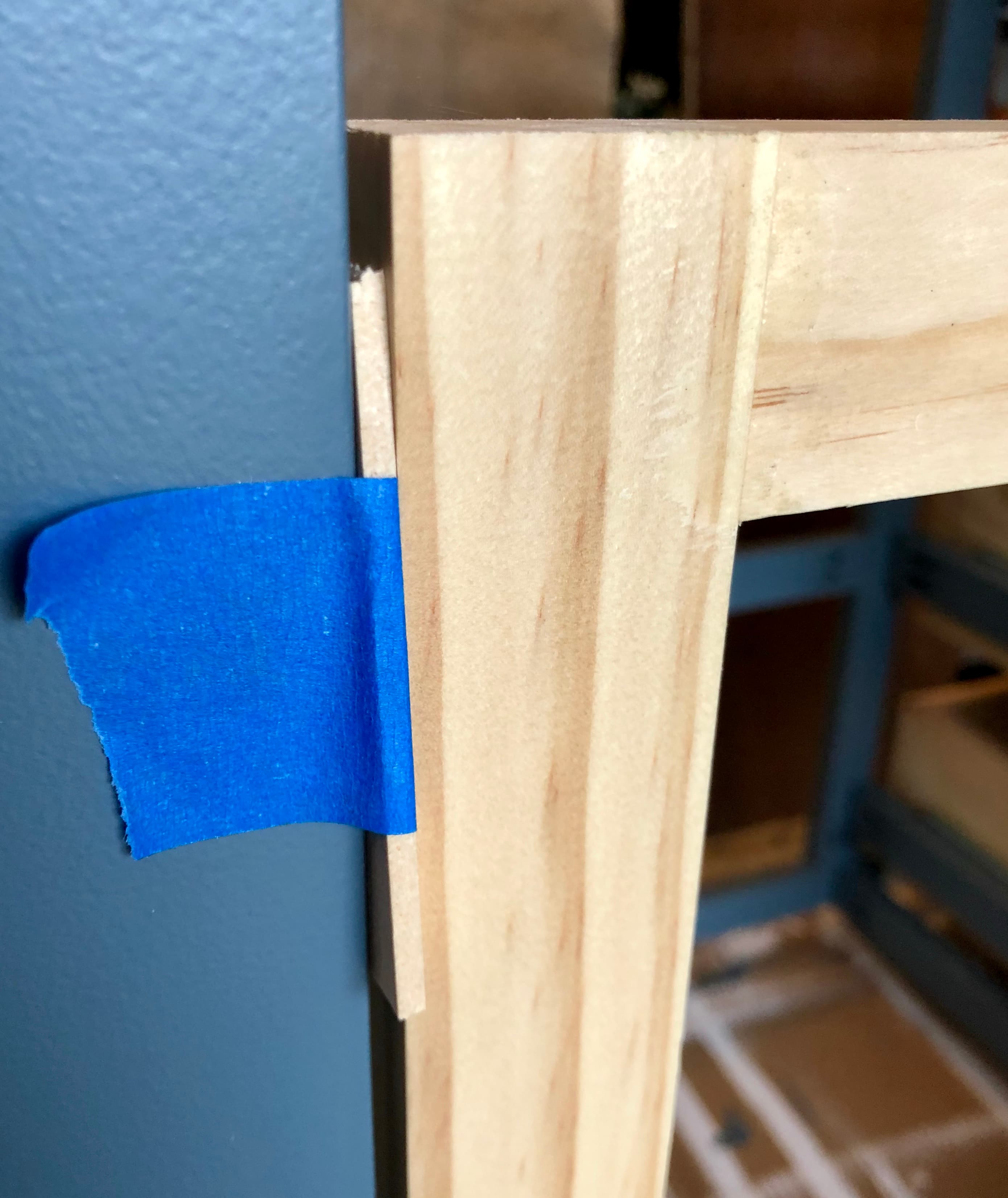

I cut up some paint stirrer sticks (1/8" thick) and used those as spacers for the cabinet doors.

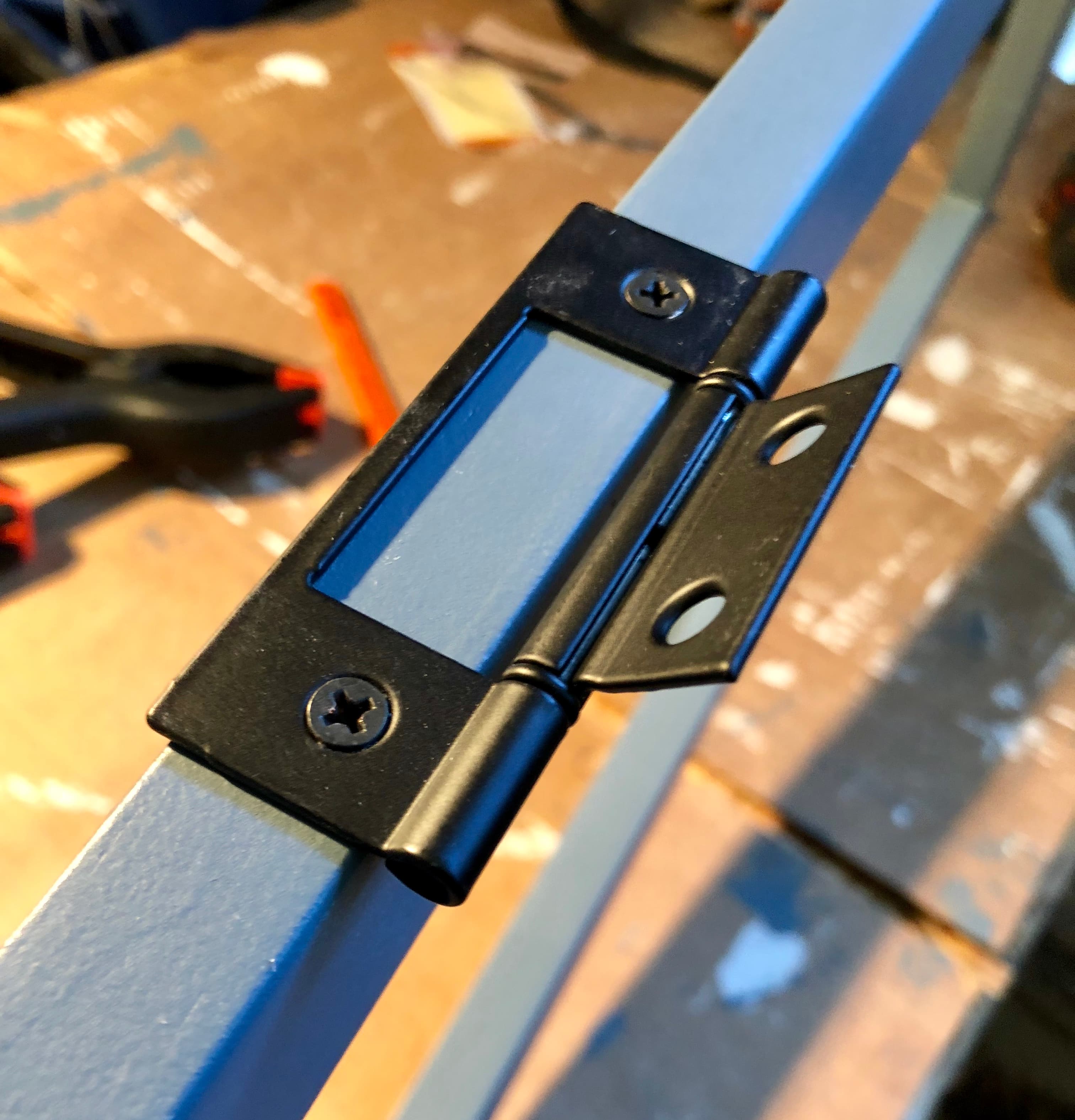

Installing the hinges for the cabinet doors.

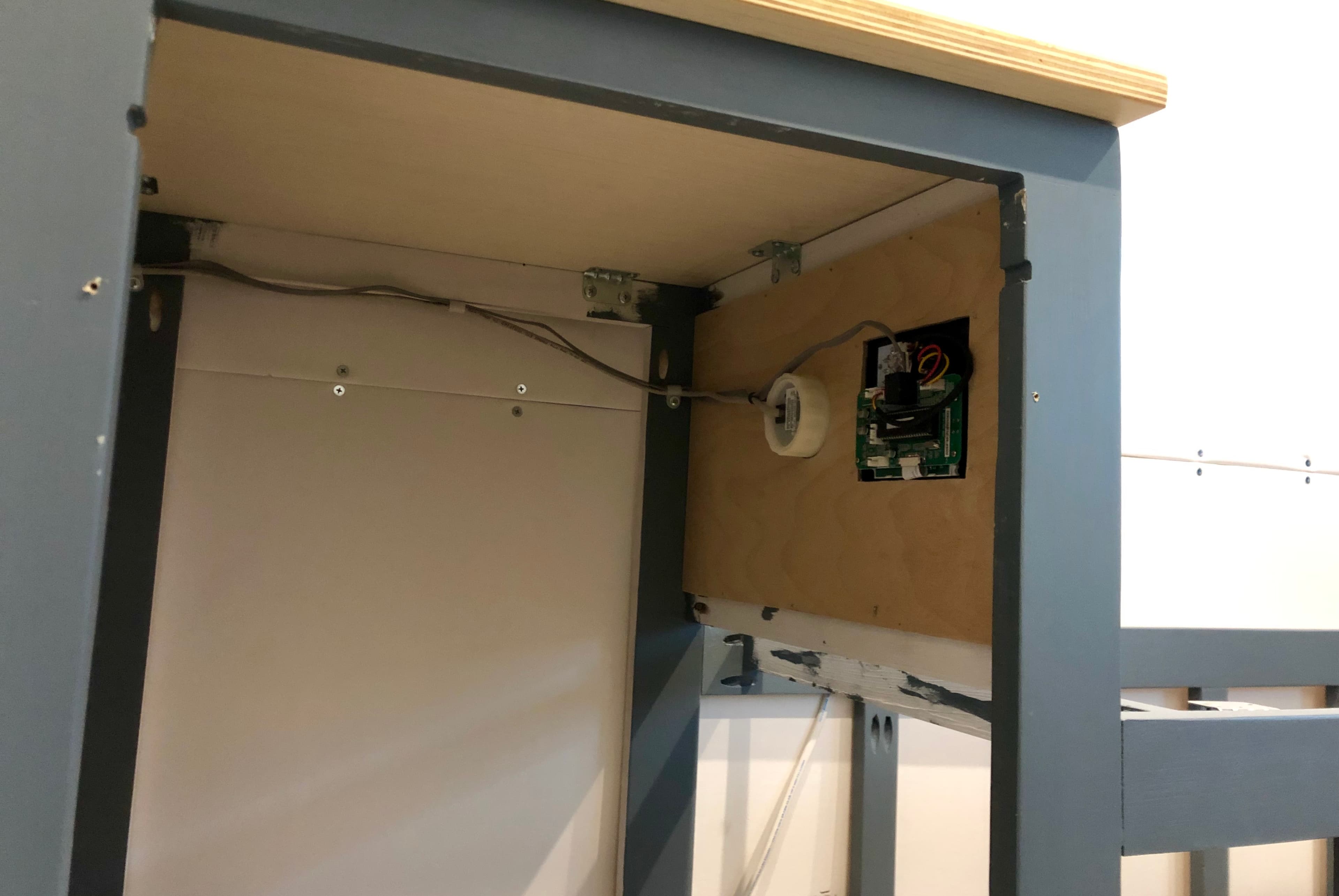

Before installing the fridge, I needed to wire the battery monitor and remote inverter switch to the living unit.

Living unit with frigde installed.

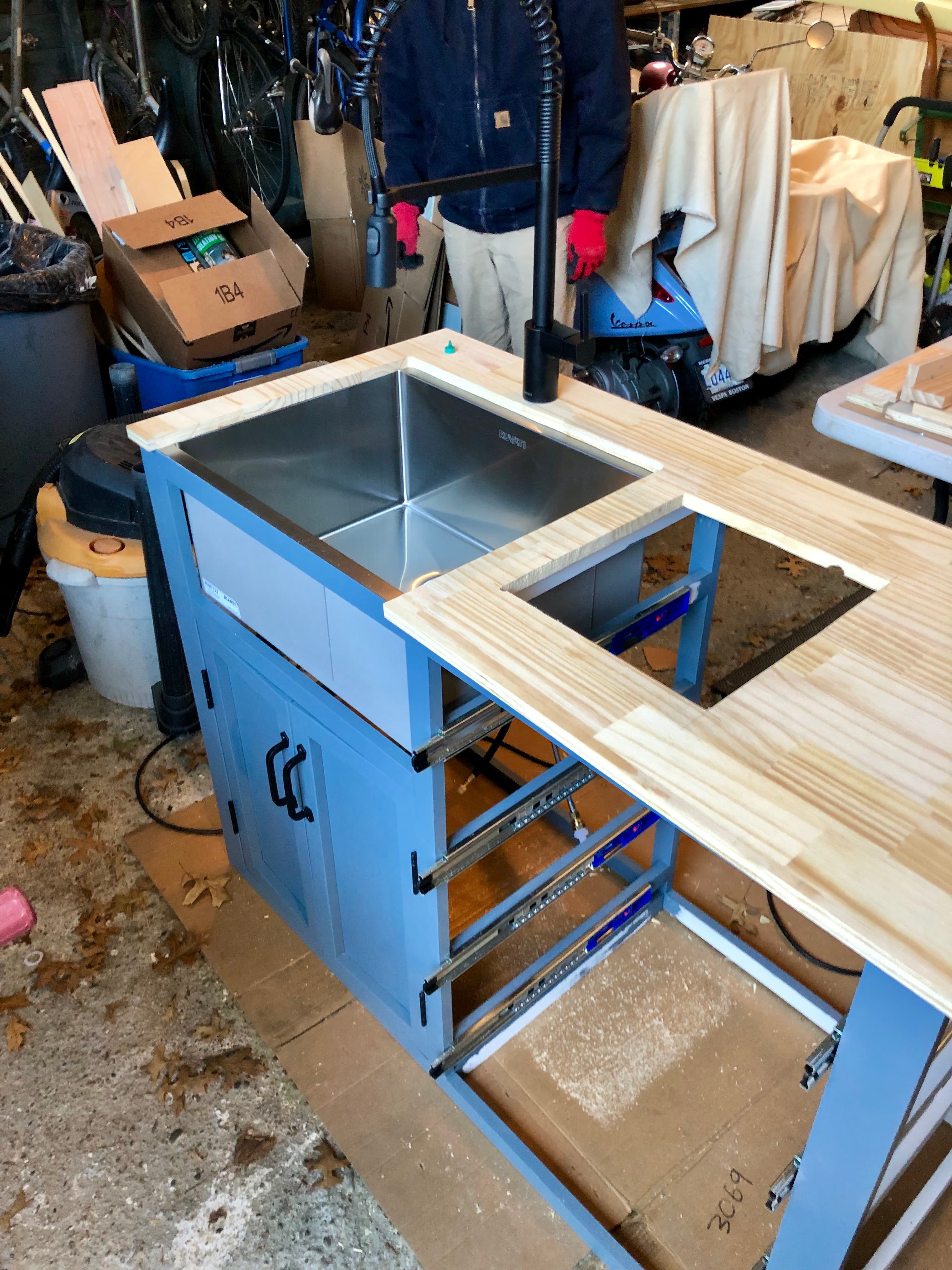

I cut out the countertop to fit the sink and induction cooktop. I actually ended up doing this twice since I didn't like the first piece of wood I bought—it was cheap from Lowes and I thought it would warp. So I substituted it for something more durable.

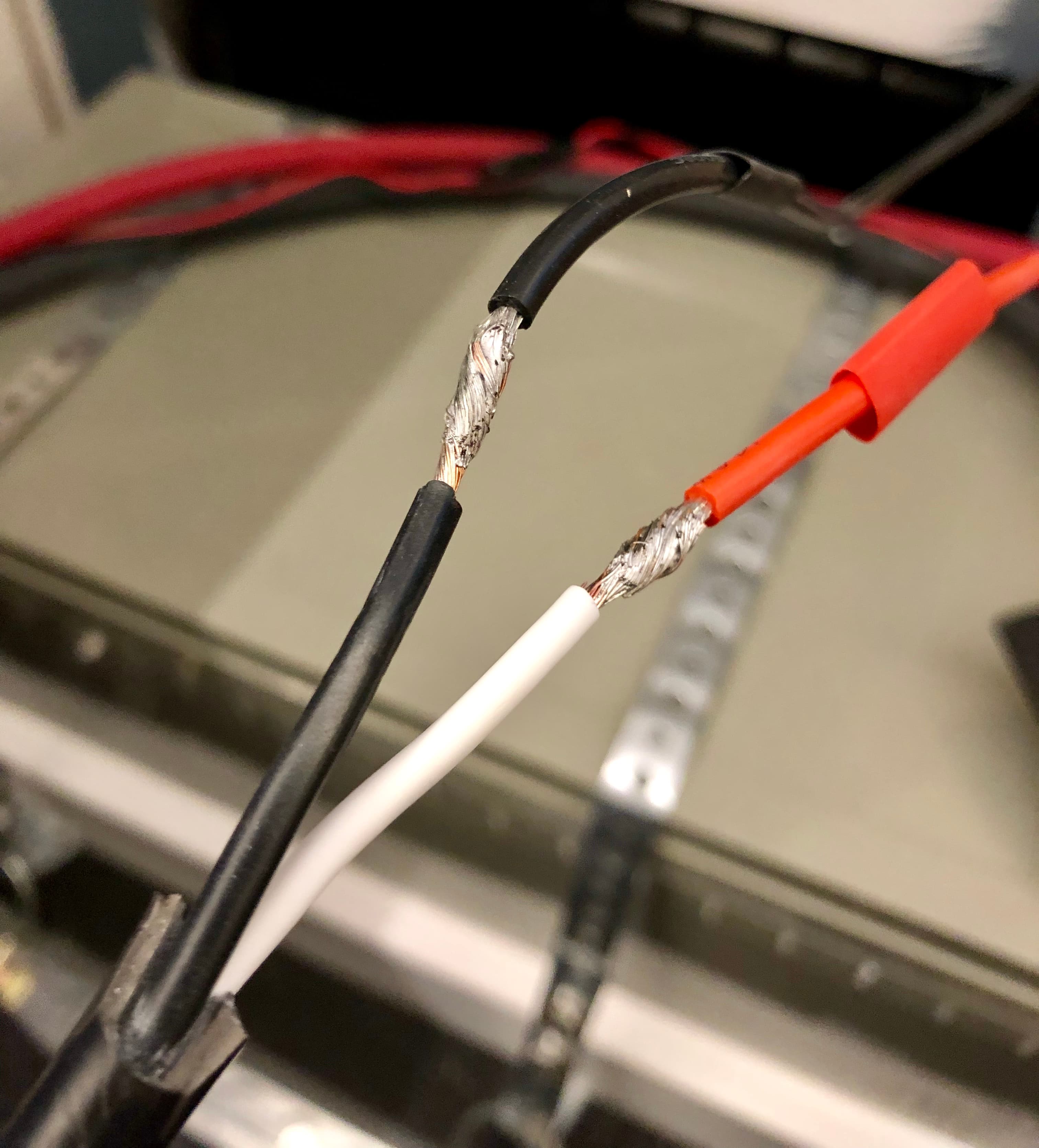

The induction cooktop cord was too short, so I cut it and extended it using some extra 14 AWG wire I had.

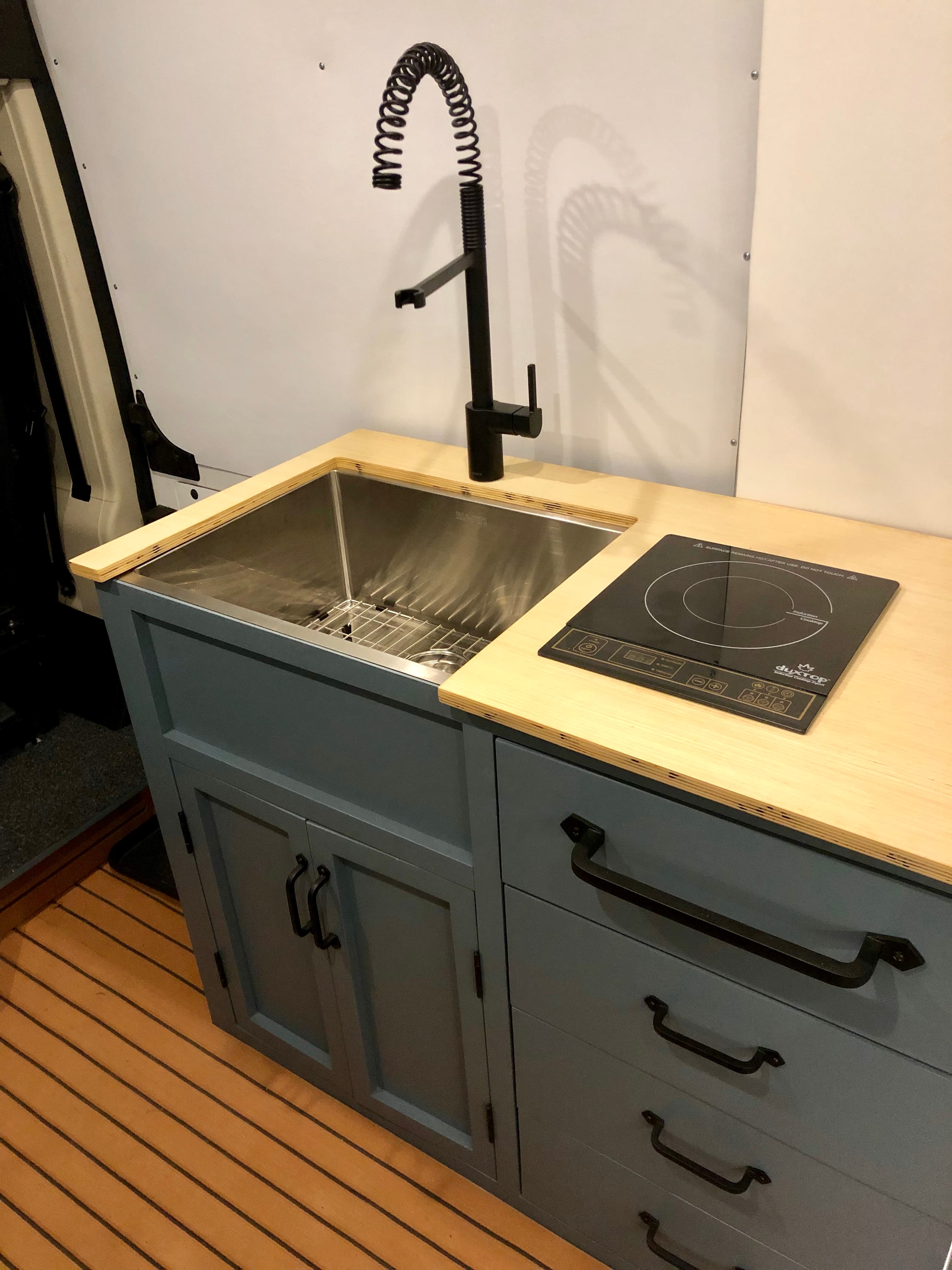

Kitchen unit with the sink & stove installed. I have yet to connect the faucet to the fresh water & grey water tanks, but otherwise the unit is done.

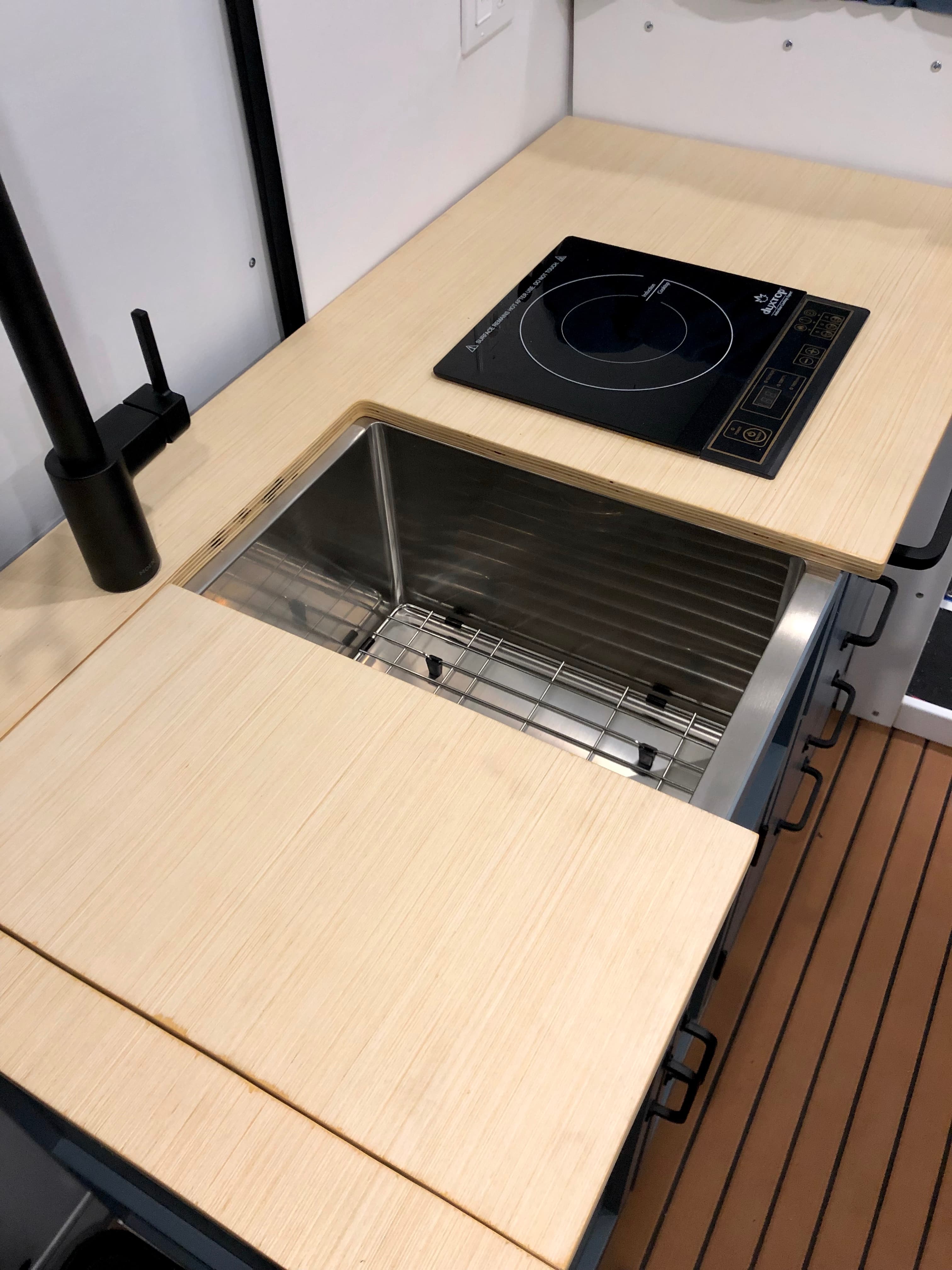

I ended up buying a big sink—I really dislike small sinks. In order to have both a big sink and enough counter space, I made 2 boards (same material as the counter) that cover the sink.

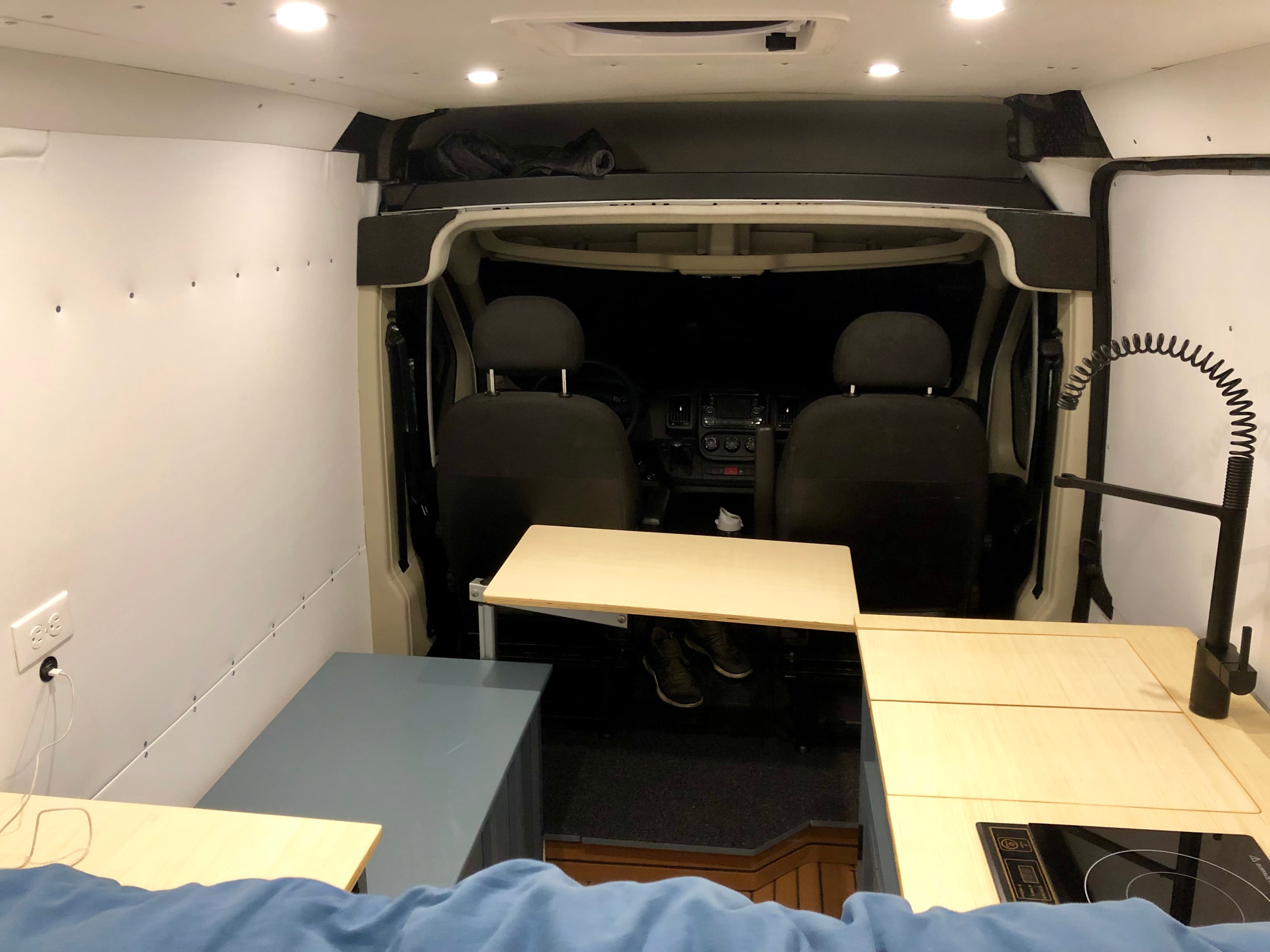

Here is what the interior looks like from the front of the van (you can see the drivers seat head rest on the right).

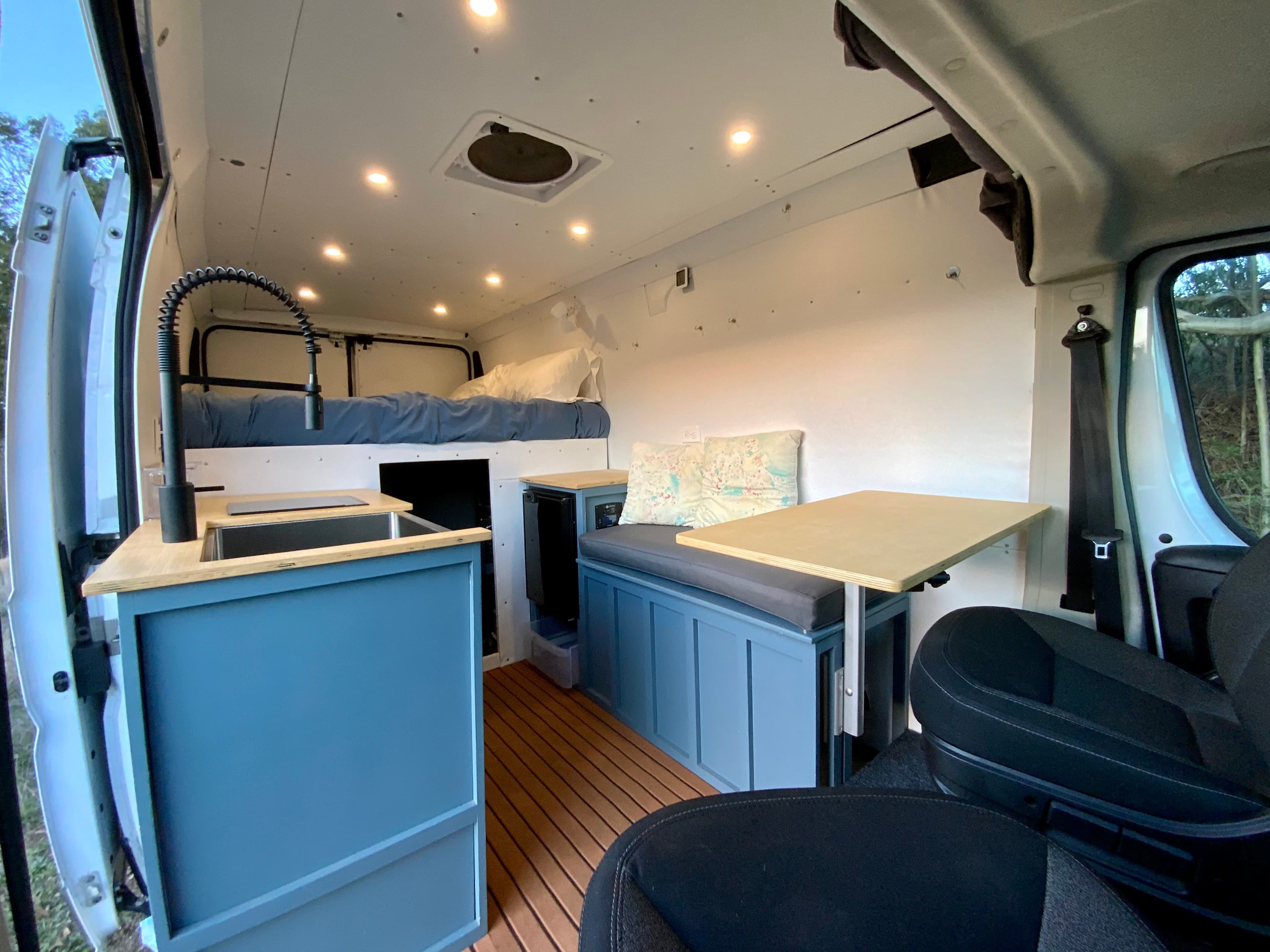

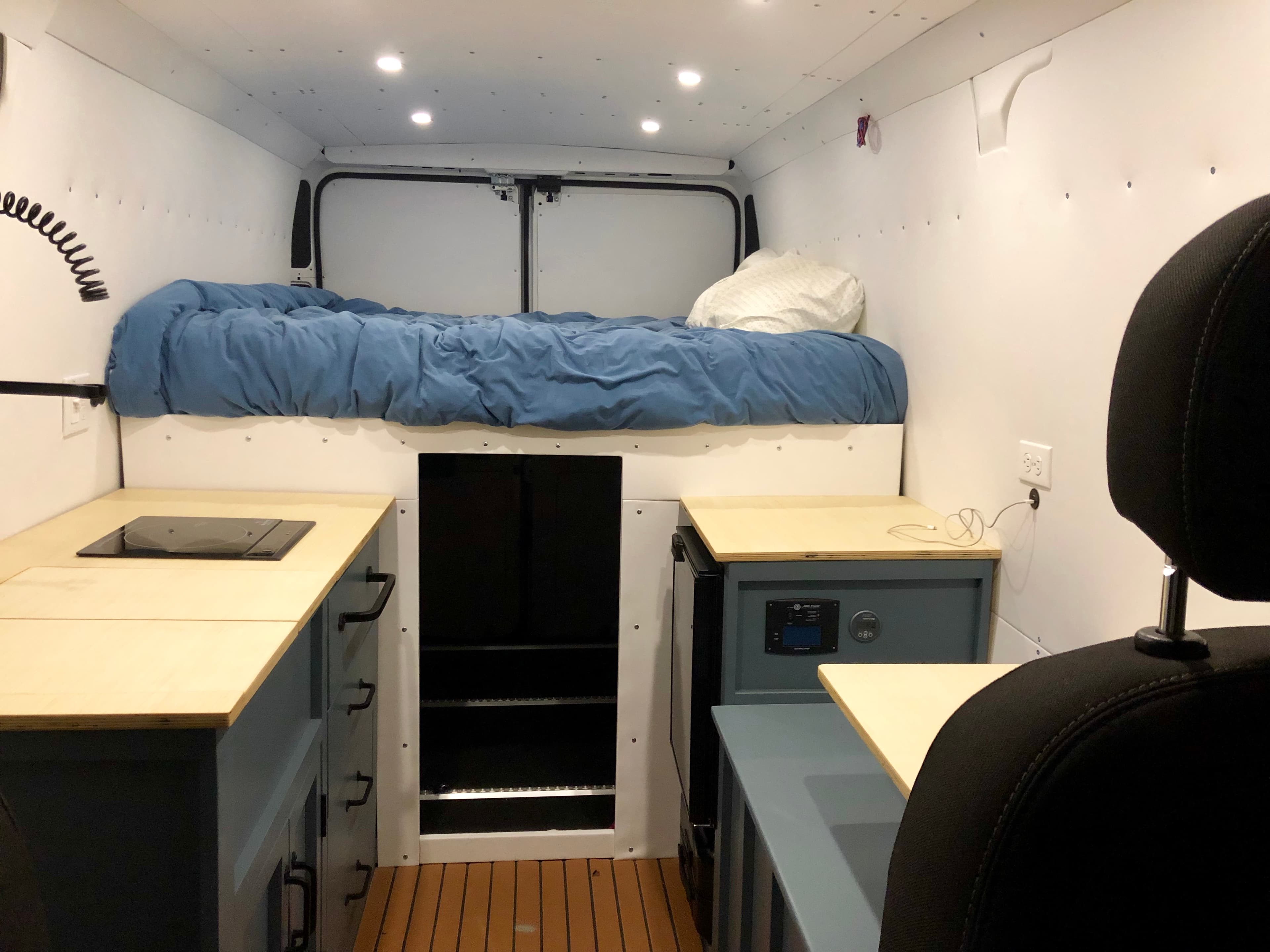

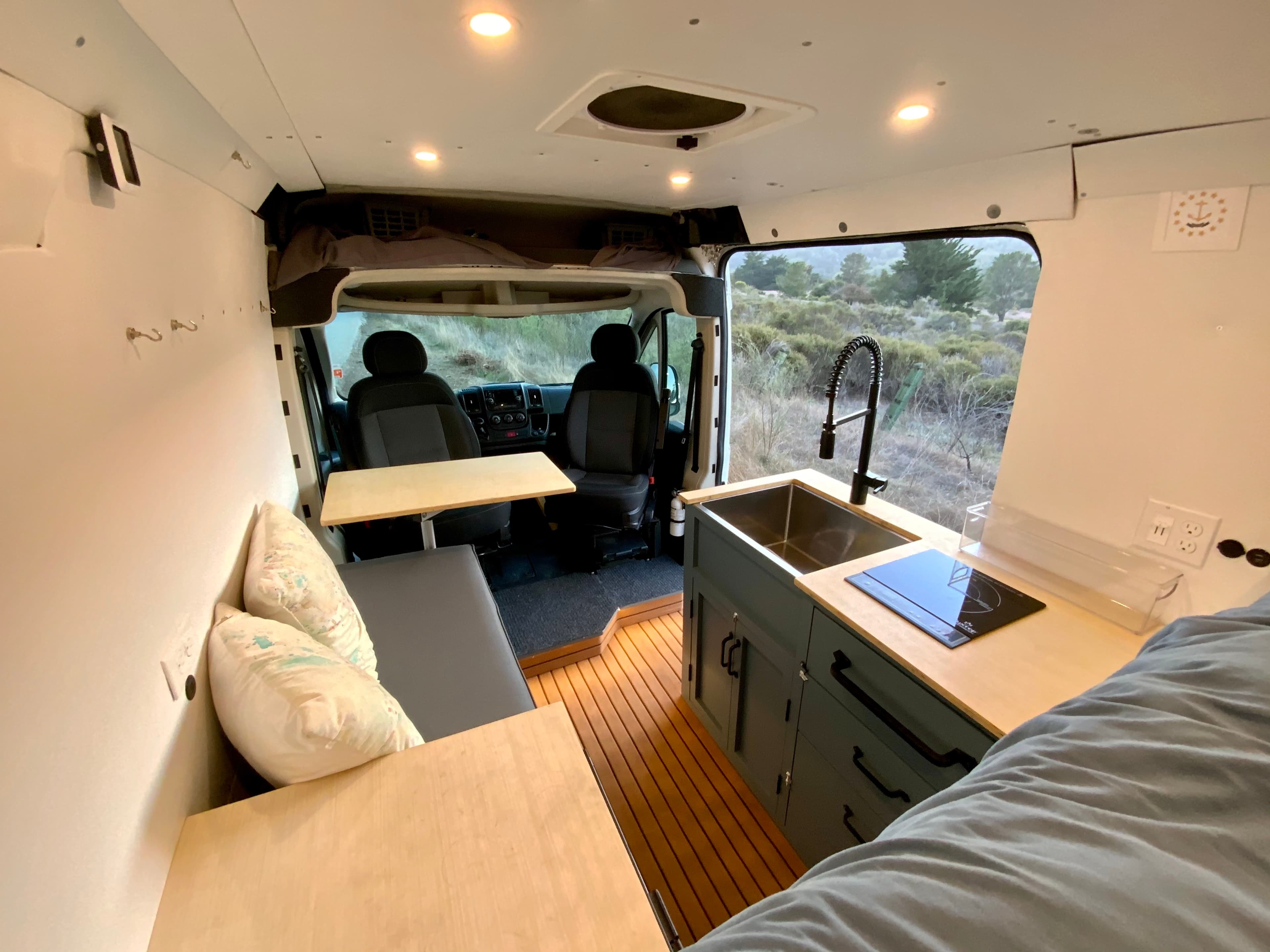

And looking towards the front, from the bed. The table in front of the 2 seats moves around, and the 2 seats also swivel. Need to add pillows and connect the faucet, but that just about wraps it up.
